(N)TSCGEWOEU带光纤的中压固定安装电缆

应用

该电缆适合沿传送带(也用于可替换单元)和材料处理设备(还可在电缆吊杆上连续移动或用来连接上下车厢)敷设,也可用于连接潜水泵单元。

标准

基于VDE 0250 Part 813

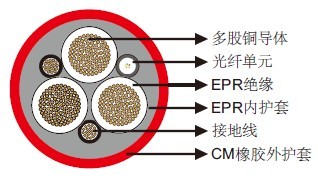

结构

导体:DIN VDE 0295标准class 5柔软多股铜导体。
内导体层:半导层。
绝缘:EPR。
外导体层:半导层。
接地线:分为2根分布于外层间隙。
光纤:FO 50/125或62.5/125或E9/125μm带保护护套。
内护套:EPR。
外护套:CM。

(N)TSCGEWOEU带光纤的中压固定安装电缆

尺寸和重量

3.6/6kV

芯数×标称截面积 最小外径 最大外径 标称重量
No. ×mm² mm mm kg/km
3×25+2×25/2+1×(6LWL) 40.1 43.1 2650
3×25+2×50/2+1×(6LWL) 42.4 45.4 3060
3×35+2×25/2+1×(6LWL) 42.3 45.3 3060
3×35+2×50/2+1×(6LWL) 44.0 47.0 3410
3×50+2×25/2+1×(6LWL) 43.8 46.8 3490
3×50+2×50/2+1×(6LWL) 46.1 49.1 3640
3×70+2×35/2+1×(6LWL) 47.0 50.0 4350
3×70+2×50/2+1×(6LWL) 52.0 56.0 5280
3×95+2×50/2+1×(6LWL) 52.2 56.2 5550
3×120+2×70/2+1×(6LWL) 49.6 50.9 7040
3×150+2×70/2+1×(6LWL) 48.4 52.3 8000
3×185+2×95/2+1×(6LWL) 51.3 55.3 9310
3×240+2×120/2+1×(6LWL) 58.0 62.0 11940
3×300+2×150/2+1×(6LWL) 63.2 67.2 14230

6/10 kV

芯数×标称截面积 最小外径 最大外径 标称重量
No. ×mm² mm mm kg/km
3×25+2×25/2+1×(6LWL) 41.4 44.4 2770
3×25+2×50/2+1×(6LWL) 43.1 46.1 3120
3×35+2×25/2+1×(6LWL) 43.6 46.6 3190
3×35+2×50/2+1×(6LWL) 44.7 47.7 3470
3×50+2×25/2+1×(6LWL) 45.1 48.1 3620
3×50+2×50/2+1×(6LWL) 46.8 49.8 4010
3×70+2×35/2+1×(6LWL) 48.3 51.3 4500
3×70+2×50/2+1×(6LWL) 52.7 56.7 5360
3×95+2×50/2+1×(6LWL) 53.5 57.5 5710
3×120+2×70/2+1×(6LWL) 57.2 61.2 6830
3×150+2×70/2+1×(6LWL) 62.3 66.3 8180
3×185+2×95/2+1×(6LWL) 65.3 69.3 9500
3×240+2×120/2+1×(6LWL) 73.4 77.4 12160
3×300+2×150/2+1×(6LWL) 78.6 82.6 14460

8.7/15 kV

芯数×标称截面积 最小外径 最大外径 标称重量
No. ×mm² mm mm kg/km
3×25+2×25/2+1×(6LWL) 44.2 47.2 3050
3×25+2×50/2+1×(6LWL) 45.4 48.4 3350
3×35+2×25/2+1×(6LWL) 45.3 48.3 3320
3×35+2×50/2+1×(6LWL) 47.0 50.0 3710
3×50+2×25/2+1×(6LWL) 49.4 53.4 4160
3×50+2×50/2+1×(6LWL) 51.2 55.2 4590
3×70+2×35/2+1×(6LWL) 52.7 56.7 5080
3×70+2×50/2+1×(6LWL) 55.0 59.0 5640
3×95+2×50/2+1×(6LWL) 57.0 61.0 6160
3×120+2×70/2+1×(6LWL) 62.1 66.1 7520
3×150+2×70/2+1×(6LWL) 65.7 69.7 8670
3×185+2×95/2+1×(6LWL) 68.7 72.7 10010
3×240+2×120/2+1×(6LWL) 76.8 80.8 12730
3×300+2×150/2+1×(6LWL) 82.0 86.0 15080

12/20 kV

芯数×标称截面积 最小外径 最大外径 标称重量
No. ×mm² mm mm kg/km
3×25+2×25/2+1×(6LWL) 45.5 48.5 3140
3×25+2×50/2+1×(6LWL) 47.2 50.2 3530
3×35+2×25/2+1×(6LWL) 48.3 51.3 3640
3×35+2×50/2+1×(6LWL) 51.0 55.0 4240
3×50+2×25/2+1×(6LWL) 52.5 56.5 4530
3×50+2×50/2+1×(6LWL) 52.5 56.5 4690
3×70+2×35/2+1×(6LWL) 55.7 59.7 5460
3×70+2×50/2+1×(6LWL) 58.0 62.0 6040
3×95+2×50/2+1×(6LWL) 61.4 65.4 6770
3×120+2×70/2+1×(6LWL) 65.1 69.1 7950
3×150+2×70/2+1×(6LWL) 68.7 72.7 9130
3×185+2×95/2+1×(6LWL) 73.2 77.2 10770
3×240+2×120/2+1×(6LWL) 79.8 83.8 13260
3×300+2×150/2+1×(6LWL) 86.3 91.3 16040

14/25 kV

芯数×标称截面积 最小外径 最大外径 标称重量
No. ×mm² mm mm kg/km
3×25+2×25/2+1×(6LWL) 50.3 54.3 3740
3×25+2×50/2+1×(6LWL) 50.3 54.3 3900
3×35+2×25/2+1×(6LWL) 53.1 57.1 4270
3×35+2×50/2+1×(6LWL) 53.1 57.1 4440
3×50+2×25/2+1×(6LWL) 56.3 60.3 5000
3×50+2×50/2+1×(6LWL) 56.3 60.3 5160
3×70+2×35/2+1×(6LWL) 61.0 65.0 6190
3×70+2×50/2+1×(6LWL) 61.0 65.0 6390
3×95+2×50/2+1×(6LWL) 65.3 69.3 7340
3×120+2×70/2+1×(6LWL) 69.0 73.0 8550
3×150+2×70/2+1×(6LWL) 74.0 78.0 10020
3×185+2×95/2+1×(6LWL) 77.0 81.0 11410
3×240+2×120/2+1×(6LWL) 85.0 90.0 14380
3×300+2×150/2+1×(6LWL) 90.2 95.2 16820

18/30 kV

芯数×标称截面积 最小外径 最大外径 标称重量
No. ×mm² mm mm kg/km
3×25+2×25/2+1×(6LWL) 53.7 57.7 4140
3×25+2×50/2+1×(6LWL) 53.7 57.7 4310
3×35+2×25/2+1×(6LWL) 56.6 60.6 4720
3×35+2×50/2+1×(6LWL) 56.6 60.6 4880
3×50+2×25/2+1×(6LWL) 61.2 65.2 5680
3×50+2×50/2+1×(6LWL) 61.2 65.2 5840
3×70+2×35/2+1×(6LWL) 64.4 68.4 6670
3×70+2×50/2+1×(6LWL) 64.4 68.4 6870
3×95+2×50/2+1×(6LWL) 68.7 72.7 7860
3×120+2×70/2+1×(6LWL) 73.8 77.8 9350
3×150+2×70/2+1×(6LWL) 77.5 81.5 10630
3×185+2×95/2+1×(6LWL) 80.5 84.5 12040
3×240+2×120/2+1×(6LWL) 88.5 93.5 15070
3×300+2×150/2+1×(6LWL) 94.7 99.7 17780
