CVVS日本JIS标准工业缆
应用及描述
此电缆主要用于电气设备和电站控制电路的监控，可户外安装，或安装于干燥或潮湿的电缆沟中。标准及认证

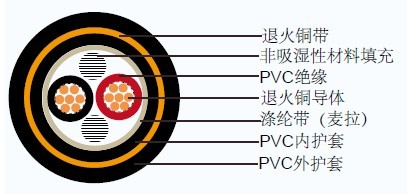

IEC 60502-1标准,JIS C 3401标准电缆结构
导体: 同心多股退火铜导体, 0.5 mm2到6 mm2绝缘: 聚氯乙烯(PVC)
颜色: 2-4芯-黑色, 白色, 红色，绿色
多于4芯: 黑色线芯加数字标注
填充: 非吸湿性材料(可选)
粘合带: 涤纶带（麦拉） (可选)
内护套: 聚氯乙烯(PVC), 黑色
屏蔽: 退火铜带, 0.1mm
外护套: 聚氯乙烯(PVC), 黑色 (可选阻燃聚氯乙烯FR-PVC)
技术特性
最大导体温度 70℃回路电缆不超过 600 V
测试电压 2000V(JIS) / 3500 V(IEC)
电缆参数
IEC 60502-1标准电缆
芯数 |
导体 | 绝缘厚度 | 内护套厚度 | 外护套厚度 | 线缆外径 | 20°c时的导体电阻 | 70°c时的绝缘电阻 | 线缆重量 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 标称导体截面积 | 股数/直径 | 直径 | ||||||||
| mm² | mm | mm | mm | mm | mm | mm | Ohm / km | Ohm/km | kg / km | |
| 2 | 0.5 | 7/0.30 | 0.9 | 0.8 | 1 | 1.8 | 12.5 | 36 | 0.0162 | 180 |
| 0.75 | 7/0.37 | 1.11 | 0.8 | 1 | 1.8 | 13 | 24.5 | 0.0142 | 190 | |
| 1 | 7/0.43 | 1.29 | 0.8 | 1 | 1.8 | 13.5 | 18.1 | 0.0128 | 210 | |
| 1.5 | 7/0.52 | 1.56 | 0.8 | 1 | 1.8 | 14 | 12.1 | 0.0112 | 230 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 1 | 1.8 | 15 | 7.41 | 0.0093 | 270 | |
| 4 | 7/0.85 | 2.55 | 1 | 1 | 1.8 | 17 | 4.61 | 0.0092 | 360 | |
| 6 | 7/1.04 | 3.12 | 1 | 1 | 1.8 | 18 | 3.08 | 0.0078 | 440 | |
| 3 | 0.5 | 7/0.30 | 0.9 | 0.8 | 1 | 1.8 | 13 | 36 | 0.0162 | 200 |
| 0.75 | 7/0.37 | 1.11 | 0.8 | 1 | 1.8 | 13.5 | 24.5 | 0.0142 | 220 | |
| 1 | 7/0.43 | 1.29 | 0.8 | 1 | 1.8 | 14 | 18.1 | 0.0128 | 230 | |
| 1.5 | 7/0.52 | 1.56 | 0.8 | 1 | 1.8 | 14.5 | 12.1 | 0.0112 | 260 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 1 | 1.8 | 15.5 | 7.41 | 0.0093 | 320 | |
| 4 | 7/0.85 | 2.55 | 1 | 1 | 1.8 | 17.5 | 4.61 | 0.0092 | 430 | |
| 6 | 7/1.04 | 3.12 | 1 | 1 | 1.8 | 19 | 3.08 | 0.0078 | 520 | |
| 4 | 0.5 | 7/0.30 | 0.9 | 0.8 | 1 | 1.8 | 14 | 36 | 0.0162 | 220 |
| 0.75 | 7/0.37 | 1.11 | 0.8 | 1 | 1.8 | 14.5 | 24.5 | 0.0142 | 240 | |
| 1 | 7/0.43 | 1.29 | 0.8 | 1 | 1.8 | 15 | 18.1 | 0.0128 | 270 | |
| 1.5 | 7/0.52 | 1.56 | 0.8 | 1 | 1.8 | 15.5 | 12.1 | 0.0112 | 300 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 1 | 1.8 | 16.5 | 7.41 | 0.0093 | 370 | |
| 4 | 7/0.85 | 2.55 | 1 | 1 | 1.8 | 19 | 4.61 | 0.0092 | 510 | |
| 6 | 7/1.04 | 3.12 | 1 | 1 | 1.8 | 20.5 | 3.08 | 0.0078 | 630 | |
| 5 | 0.5 | 7/0.30 | 0.9 | 0.8 | 1 | 1.8 | 14.5 | 36 | 0.0162 | 250 |
| 0.75 | 7/0.37 | 1.11 | 0.8 | 1 | 1.8 | 15 | 24.5 | 0.0142 | 280 | |
| 1 | 7/0.43 | 1.29 | 0.8 | 1 | 1.8 | 15.5 | 18.1 | 0.0128 | 310 | |
| 1.5 | 7/0.52 | 1.56 | 0.8 | 1 | 1.8 | 16.5 | 12.1 | 0.0112 | 350 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 1 | 1.8 | 17.5 | 7.41 | 0.0093 | 440 | |
| 4 | 7/0.85 | 2.55 | 1 | 1 | 1.8 | 20.5 | 4.61 | 0.0092 | 610 | |
| 6 | 7/1.04 | 3.12 | 1 | 1 | 1.8 | 22 | 3.08 | 0.0078 | 760 | |
| 6 | 0.5 | 7/0.30 | 0.9 | 0.8 | 1 | 1.8 | 15.5 | 36 | 0.0162 | 260 |
| 0.75 | 7/0.37 | 1.11 | 0.8 | 1 | 1.8 | 16 | 24.5 | 0.0142 | 300 | |
| 1 | 7/0.43 | 1.29 | 0.8 | 1 | 1.8 | 16.5 | 18.1 | 0.0128 | 330 | |
| 1.5 | 7/0.52 | 1.56 | 0.8 | 1 | 1.8 | 17.5 | 12.1 | 0.0112 | 380 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 1 | 1.8 | 19 | 7.41 | 0.0093 | 470 | |
| 4 | 7/0.85 | 2.55 | 1 | 1 | 1.8 | 22 | 4.61 | 0.0092 | 660 | |
| 6 | 7/1.04 | 3.12 | 1 | 1 | 1.8 | 23.5 | 3.08 | 0.0078 | 830 | |
| 7 | 0.5 | 7/0.30 | 0.9 | 0.8 | 1 | 1.8 | 15.5 | 36 | 0.0162 | 270 |
| 0.75 | 7/0.37 | 1.11 | 0.8 | 1 | 1.8 | 16 | 24.5 | 0.0142 | 310 | |
| 1 | 7/0.43 | 1.29 | 0.8 | 1 | 1.8 | 16.5 | 18.1 | 0.0128 | 340 | |
| 1.5 | 7/0.52 | 1.56 | 0.8 | 1 | 1.8 | 17.5 | 12.1 | 0.0112 | 390 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 1 | 1.8 | 19 | 7.41 | 0.0093 | 500 | |
| 4 | 7/0.85 | 2.55 | 1 | 1 | 1.8 | 22 | 4.61 | 0.0092 | 700 | |
| 6 | 7/1.04 | 3.12 | 1 | 1 | 1.8 | 23.5 | 3.08 | 0.0078 | 880 | |
| 8 | 0.5 | 7/0.30 | 0.9 | 0.8 | 1 | 1.8 | 16.5 | 36 | 0.0162 | 300 |
| 0.75 | 7/0.37 | 1.11 | 0.8 | 1 | 1.8 | 17 | 24.5 | 0.0142 | 340 | |
| 1 | 7/0.43 | 1.29 | 0.8 | 1 | 1.8 | 17.5 | 18.1 | 0.0128 | 370 | |
| 1.5 | 7/0.52 | 1.56 | 0.8 | 1 | 1.8 | 18.5 | 12.1 | 0.0112 | 430 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 1 | 1.8 | 20 | 7.41 | 0.0093 | 550 | |
| 4 | 7/0.85 | 2.55 | 1 | 1 | 1.8 | 23.5 | 4.61 | 0.0092 | 780 | |
| 6 | 7/1.04 | 3.12 | 1 | 1 | 1.8 | 25 | 3.08 | 0.0078 | 990 | |
| 9 | 0.5 | 7/0.30 | 0.9 | 0.8 | 1 | 1.8 | 17 | 36 | 0.0162 | 330 |
| 0.75 | 7/0.37 | 1.11 | 0.8 | 1 | 1.8 | 18 | 24.5 | 0.0142 | 370 | |
| 1 | 7/0.43 | 1.29 | 0.8 | 1 | 1.8 | 18.5 | 18.1 | 0.0128 | 410 | |
| 1.5 | 7/0.52 | 1.56 | 0.8 | 1 | 1.8 | 19.5 | 12.1 | 0.0112 | 480 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 1 | 1.8 | 21 | 7.41 | 0.0093 | 610 | |
| 4 | 7/0.85 | 2.55 | 1 | 1 | 1.8 | 25 | 4.61 | 0.0092 | 870 | |
| 6 | 7/1.04 | 3.12 | 1 | 1 | 1.8 | 27 | 3.08 | 0.0078 | 1110 | |
| 10 | 0.5 | 7/0.30 | 0.9 | 0.8 | 1 | 1.8 | 18 | 36 | 0.0162 | 350 |
| 0.75 | 7/0.37 | 1.11 | 0.8 | 1 | 1.8 | 19 | 24.5 | 0.0142 | 400 | |
| 1 | 7/0.43 | 1.29 | 0.8 | 1 | 1.8 | 20 | 18.1 | 0.0128 | 440 | |
| 1.5 | 7/0.52 | 1.56 | 0.8 | 1 | 1.8 | 21 | 12.1 | 0.0112 | 520 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 1 | 1.8 | 22.5 | 7.41 | 0.0093 | 670 | |
| 4 | 7/0.85 | 2.55 | 1 | 1 | 1.8 | 26.5 | 4.61 | 0.0092 | 950 | |
| 6 | 7/1.04 | 3.12 | 1 | 1 | 1.8 | 29 | 3.08 | 0.0078 | 1210 | |
| 11 | 0.5 | 7/0.30 | 0.9 | 0.8 | 1 | 1.8 | 18.5 | 36 | 0.0162 | 370 |
| 0.75 | 7/0.37 | 1.11 | 0.8 | 1 | 1.8 | 19.5 | 24.5 | 0.0142 | 430 | |
| 1 | 7/0.43 | 1.29 | 0.8 | 1 | 1.8 | 20.5 | 18.1 | 0.0128 | 480 | |
| 1.5 | 7/0.52 | 1.56 | 0.8 | 1 | 1.8 | 21.5 | 12.1 | 0.0112 | 560 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 1 | 1.8 | 23.5 | 7.41 | 0.0093 | 730 | |
| 4 | 7/0.85 | 2.55 | 1 | 1 | 1.8 | 27.5 | 4.61 | 0.0092 | 1040 | |
| 6 | 7/1.04 | 3.12 | 1 | 1 | 1.8 | 30 | 3.08 | 0.0078 | 1330 | |
| 12 | 0.5 | 7/0.30 | 0.9 | 0.8 | 1 | 1.8 | 18.5 | 36 | 0.0162 | 380 |
| 0.75 | 7/0.37 | 1.11 | 0.8 | 1 | 1.8 | 19.5 | 24.5 | 0.0142 | 440 | |
| 1 | 7/0.43 | 1.29 | 0.8 | 1 | 1.8 | 20.5 | 18.1 | 0.0128 | 490 | |
| 1.5 | 7/0.52 | 1.56 | 0.8 | 1 | 1.8 | 21.5 | 12.1 | 0.0112 | 580 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 1 | 1.8 | 23.5 | 7.41 | 0.0093 | 750 | |
| 4 | 7/0.85 | 2.55 | 1 | 1 | 1.8 | 27.5 | 4.61 | 0.0092 | 1080 | |
| 6 | 7/1.04 | 3.12 | 1 | 1 | 1.8 | 30 | 3.08 | 0.0078 | 1390 | |
| 13 | 0.5 | 7/0.30 | 0.9 | 0.8 | 1 | 1.8 | 19.5 | 36 | 0.0162 | 410 |
| 0.75 | 7/0.37 | 1.11 | 0.8 | 1 | 1.8 | 20.5 | 24.5 | 0.0142 | 470 | |
| 1 | 7/0.43 | 1.29 | 0.8 | 1 | 1.8 | 21 | 18.1 | 0.0128 | 530 | |
| 1.5 | 7/0.52 | 1.56 | 0.8 | 1 | 1.8 | 22.5 | 12.1 | 0.0112 | 630 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 1 | 1.8 | 24.5 | 7.41 | 0.0093 | 810 | |
| 4 | 7/0.85 | 2.55 | 1 | 1 | 1.8 | 28.5 | 4.61 | 0.0092 | 1180 | |
| 6 | 7/1.04 | 3.12 | 1 | 1 | 1.8 | 31 | 3.08 | 0.0078 | 1520 | |
| 14 | 0.5 | 7/0.30 | 0.9 | 0.8 | 1 | 1.8 | 19.5 | 36 | 0.0162 | 420 |
| 0.75 | 7/0.37 | 1.11 | 0.8 | 1 | 1.8 | 20.5 | 24.5 | 0.0142 | 480 | |
| 1 | 7/0.43 | 1.29 | 0.8 | 1 | 1.8 | 21 | 18.1 | 0.0128 | 540 | |
| 1.5 | 7/0.52 | 1.56 | 0.8 | 1 | 1.8 | 22.5 | 12.1 | 0.0112 | 640 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 1 | 1.8 | 24.5 | 7.41 | 0.0093 | 840 | |
| 4 | 7/0.85 | 2.55 | 1 | 1 | 1.8 | 28.5 | 4.61 | 0.0092 | 1210 | |
| 6 | 7/1.04 | 3.12 | 1 | 1 | 1.8 | 31 | 3.08 | 0.0078 | 1570 | |
| 15 | 0.5 | 7/0.30 | 0.9 | 0.8 | 1 | 1.8 | 20 | 36 | 0.0162 | 450 |
| 0.75 | 7/0.37 | 1.11 | 0.8 | 1 | 1.8 | 21 | 24.5 | 0.0142 | 520 | |
| 1 | 7/0.43 | 1.29 | 0.8 | 1 | 1.8 | 22 | 18.1 | 0.0128 | 590 | |
| 1.5 | 7/0.52 | 1.56 | 0.8 | 1 | 1.8 | 23 | 12.1 | 0.0112 | 700 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 1 | 1.8 | 25.5 | 7.41 | 0.0093 | 910 | |
| 4 | 7/0.85 | 2.55 | 1 | 1 | 1.8 | 30 | 4.61 | 0.0092 | 1320 | |
| 6 | 7/1.04 | 3.12 | 1 | 1 | 1.9 | 33 | 3.08 | 0.0078 | 1730 | |
| 16 | 0.5 | 7/0.30 | 0.9 | 0.8 | 1 | 1.8 | 20 | 36 | 0.0162 | 460 |
| 0.75 | 7/0.37 | 1.11 | 0.8 | 1 | 1.8 | 21 | 24.5 | 0.0142 | 530 | |
| 1 | 7/0.43 | 1.29 | 0.8 | 1 | 1.8 | 22 | 18.1 | 0.0128 | 600 | |
| 1.5 | 7/0.52 | 1.56 | 0.8 | 1 | 1.8 | 23 | 12.1 | 0.0112 | 710 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 1 | 1.8 | 25.5 | 7.41 | 0.0093 | 930 | |
| 4 | 7/0.85 | 2.55 | 1 | 1 | 1.8 | 30 | 4.61 | 0.0092 | 1360 | |
| 6 | 7/1.04 | 3.12 | 1 | 1 | 1.9 | 33 | 3.08 | 0.0078 | 1780 | |
| 17 | 0.5 | 7/0.30 | 0.9 | 0.8 | 1 | 1.8 | 21 | 36 | 0.0162 | 490 |
| 0.75 | 7/0.37 | 1.11 | 0.8 | 1 | 1.8 | 22 | 24.5 | 0.0142 | 570 | |
| 1 | 7/0.43 | 1.29 | 0.8 | 1 | 1.8 | 23 | 18.1 | 0.0128 | 640 | |
| 1.5 | 7/0.52 | 1.56 | 0.8 | 1 | 1.8 | 24 | 12.1 | 0.0112 | 770 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 1 | 1.8 | 26.5 | 7.41 | 0.0093 | 1010 | |
| 4 | 7/0.85 | 2.55 | 1 | 1 | 1.8 | 31.5 | 4.61 | 0.0092 | 1470 | |
| 6 | 7/1.04 | 3.12 | 1 | 1 | 1.9 | 34.5 | 3.08 | 0.0078 | 1930 | |
| 18 | 0.5 | 7/0.30 | 0.9 | 0.8 | 1 | 1.8 | 21 | 36 | 0.0162 | 500 |
| 0.75 | 7/0.37 | 1.11 | 0.8 | 1 | 1.8 | 22 | 24.5 | 0.0142 | 580 | |
| 1 | 7/0.43 | 1.29 | 0.8 | 1 | 1.8 | 23 | 18.1 | 0.0128 | 650 | |
| 1.5 | 7/0.52 | 1.56 | 0.8 | 1 | 1.8 | 24 | 12.1 | 0.0112 | 780 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 1 | 1.8 | 26.5 | 7.41 | 0.0093 | 1030 | |
| 4 | 7/0.85 | 2.55 | 1 | 1 | 1.8 | 31.5 | 4.61 | 0.0092 | 1510 | |
| 6 | 7/1.04 | 3.12 | 1 | 1 | 1.9 | 34.5 | 3.08 | 0.0078 | 1990 | |
| 19 | 0.5 | 7/0.30 | 0.9 | 0.8 | 1 | 1.8 | 21 | 36 | 0.0162 | 500 |
| 0.75 | 7/0.37 | 1.11 | 0.8 | 1 | 1.8 | 22 | 24.5 | 0.0142 | 590 | |
| 1 | 7/0.43 | 1.29 | 0.8 | 1 | 1.8 | 23 | 18.1 | 0.0128 | 660 | |
| 1.5 | 7/0.52 | 1.56 | 0.8 | 1 | 1.8 | 24 | 12.1 | 0.0112 | 790 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 1 | 1.8 | 26.5 | 7.41 | 0.0093 | 1050 | |
| 4 | 7/0.85 | 2.55 | 1 | 1 | 1.8 | 31.5 | 4.61 | 0.0092 | 1540 | |
| 6 | 7/1.04 | 3.12 | 1 | 1 | 1.9 | 34.5 | 3.08 | 0.0078 | 2040 | |
| 20 | 0.5 | 7/0.30 | 0.9 | 0.8 | 1 | 1.8 | 22 | 36 | 0.0162 | 530 |
| 0.75 | 7/0.37 | 1.11 | 0.8 | 1 | 1.8 | 23 | 24.5 | 0.0142 | 620 | |
| 1 | 7/0.43 | 1.29 | 0.8 | 1 | 1.8 | 24 | 18.1 | 0.0128 | 710 | |
| 1.5 | 7/0.52 | 1.56 | 0.8 | 1 | 1.8 | 25.5 | 12.1 | 0.0112 | 850 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 1 | 1.8 | 27.5 | 7.41 | 0.0093 | 1130 | |
| 4 | 7/0.85 | 2.55 | 1 | 1 | 1.9 | 33 | 4.61 | 0.0092 | 1680 | |
| 6 | 7/1.04 | 3.12 | 1 | 1.2 | 2 | 37 | 3.08 | 0.0078 | 2250 | |
| 21 | 0.5 | 7/0.30 | 0.9 | 0.8 | 1 | 1.8 | 22 | 36 | 0.0162 | 540 |
| 0.75 | 7/0.37 | 1.11 | 0.8 | 1 | 1.8 | 23 | 24.5 | 0.0142 | 630 | |
| 1 | 7/0.43 | 1.29 | 0.8 | 1 | 1.8 | 24 | 18.1 | 0.0128 | 720 | |
| 1.5 | 7/0.52 | 1.56 | 0.8 | 1 | 1.8 | 25.5 | 12.1 | 0.0112 | 860 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 1 | 1.8 | 27.5 | 7.41 | 0.0093 | 1150 | |
| 4 | 7/0.85 | 2.55 | 1 | 1 | 1.9 | 33 | 4.61 | 0.0092 | 1700 | |
| 6 | 7/1.04 | 3.12 | 1 | 1.2 | 2 | 37 | 3.08 | 0.0078 | 2280 | |
| 22 | 0.5 | 7/0.30 | 0.9 | 0.8 | 1 | 1.8 | 22.5 | 36 | 0.0162 | 580 |
| 0.75 | 7/0.37 | 1.11 | 0.8 | 1 | 1.8 | 24 | 24.5 | 0.0142 | 680 | |
| 1 | 7/0.43 | 1.29 | 0.8 | 1 | 1.8 | 25 | 18.1 | 0.0128 | 770 | |
| 1.5 | 7/0.52 | 1.56 | 0.8 | 1 | 1.8 | 26.5 | 12.1 | 0.0112 | 930 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 1 | 1.8 | 29 | 7.41 | 0.0093 | 1240 | |
| 4 | 7/0.85 | 2.55 | 1 | 1 | 1.9 | 34.5 | 4.61 | 0.0092 | 1840 | |
| 6 | 7/1.04 | 3.12 | 1 | 1.2 | 2 | 38.5 | 3.08 | 0.0078 | 2460 | |
| 23 | 0.5 | 7/0.30 | 0.9 | 0.8 | 1 | 1.8 | 22.5 | 36 | 0.0162 | 590 |
| 0.75 | 7/0.37 | 1.11 | 0.8 | 1 | 1.8 | 24 | 24.5 | 0.0142 | 690 | |
| 1 | 7/0.43 | 1.29 | 0.8 | 1 | 1.8 | 25 | 18.1 | 0.0128 | 780 | |
| 1.5 | 7/0.52 | 1.56 | 0.8 | 1 | 1.8 | 26.5 | 12.1 | 0.0112 | 940 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 1 | 1.8 | 29 | 7.41 | 0.0093 | 1260 | |
| 4 | 7/0.85 | 2.55 | 1 | 1 | 1.9 | 34.5 | 4.61 | 0.0092 | 1880 | |
| 6 | 7/1.04 | 3.12 | 1 | 1.2 | 2 | 38.5 | 3.08 | 0.0078 | 2520 | |
| 24 | 0.5 | 7/0.30 | 0.9 | 0.8 | 1 | 1.8 | 23.5 | 36 | 0.0162 | 600 |
| 0.75 | 7/0.37 | 1.11 | 0.8 | 1 | 1.8 | 25 | 24.5 | 0.0142 | 710 | |
| 1 | 7/0.43 | 1.29 | 0.8 | 1 | 1.8 | 26 | 18.1 | 0.0128 | 810 | |
| 1.5 | 7/0.52 | 1.56 | 0.8 | 1 | 1.8 | 27.5 | 12.1 | 0.0112 | 970 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 1 | 1.8 | 30.5 | 7.41 | 0.0093 | 1300 | |
| 4 | 7/0.85 | 2.55 | 1 | 1.2 | 2 | 37.5 | 4.61 | 0.0092 | 1980 | |
| 6 | 7/1.04 | 3.12 | 1 | 1.2 | 2.1 | 41 | 3.08 | 0.0078 | 2600 | |
| 25 | 0.5 | 7/0.30 | 0.9 | 0.8 | 1 | 1.8 | 24 | 36 | 0.0162 | 630 |
| 0.75 | 7/0.37 | 1.11 | 0.8 | 1 | 1.8 | 25.5 | 24.5 | 0.0142 | 740 | |
| 1 | 7/0.43 | 1.29 | 0.8 | 1 | 1.8 | 26.5 | 18.1 | 0.0128 | 850 | |
| 1.5 | 7/0.52 | 1.56 | 0.8 | 1 | 1.8 | 28 | 12.1 | 0.0112 | 1030 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 1 | 1.8 | 31 | 7.41 | 0.0093 | 1370 | |
| 4 | 7/0.85 | 2.55 | 1 | 1.2 | 2 | 38 | 4.61 | 0.0092 | 2100 | |
| 6 | 7/1.04 | 3.12 | 1 | 1.2 | 2.1 | 42 | 3.08 | 0.0078 | 2760 | |
| 26 | 0.5 | 7/0.30 | 0.9 | 0.8 | 1 | 1.8 | 24 | 36 | 0.0162 | 640 |
| 0.75 | 7/0.37 | 1.11 | 0.8 | 1 | 1.8 | 25.5 | 24.5 | 0.0142 | 750 | |
| 1 | 7/0.43 | 1.29 | 0.8 | 1 | 1.8 | 26.5 | 18.1 | 0.0128 | 860 | |
| 1.5 | 7/0.52 | 1.56 | 0.8 | 1 | 1.8 | 28 | 12.1 | 0.0112 | 1040 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 1 | 1.8 | 31 | 7.41 | 0.0093 | 1390 | |
| 4 | 7/0.85 | 2.55 | 1 | 1.2 | 2 | 38 | 4.61 | 0.0092 | 2130 | |
| 6 | 7/1.04 | 3.12 | 1 | 1.2 | 2.1 | 42 | 3.08 | 0.0078 | 2800 | |
| 27 | 0.5 | 7/0.30 | 0.9 | 0.8 | 1 | 1.8 | 24 | 36 | 0.0162 | 650 |
| 0.75 | 7/0.37 | 1.11 | 0.8 | 1 | 1.8 | 25.5 | 24.5 | 0.0142 | 760 | |
| 1 | 7/0.43 | 1.29 | 0.8 | 1 | 1.8 | 26.5 | 18.1 | 0.0128 | 870 | |
| 1.5 | 7/0.52 | 1.56 | 0.8 | 1 | 1.8 | 28 | 12.1 | 0.0112 | 1050 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 1 | 1.8 | 31 | 7.41 | 0.0093 | 1410 | |
| 4 | 7/0.85 | 2.55 | 1 | 1.2 | 2 | 38 | 4.61 | 0.0092 | 2170 | |
| 6 | 7/1.04 | 3.12 | 1 | 1.2 | 2.1 | 42 | 3.08 | 0.0078 | 2860 | |
| 28 | 0.5 | 7/0.30 | 0.9 | 0.8 | 1 | 1.8 | 25 | 36 | 0.0162 | 680 |
| 0.75 | 7/0.37 | 1.11 | 0.8 | 1 | 1.8 | 26 | 24.5 | 0.0142 | 800 | |
| 1 | 7/0.43 | 1.29 | 0.8 | 1 | 1.8 | 27.5 | 18.1 | 0.0128 | 920 | |
| 1.5 | 7/0.52 | 1.56 | 0.8 | 1 | 1.8 | 29 | 12.1 | 0.0112 | 1110 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 1 | 1.8 | 32 | 7.41 | 0.0093 | 1490 | |
| 4 | 7/0.85 | 2.55 | 1 | 1.2 | 2 | 39.5 | 4.61 | 0.0092 | 2290 | |
| 6 | 7/1.04 | 3.12 | 1 | 1.2 | 2.2 | 43.5 | 3.08 | 0.0078 | 3040 | |
| 29 | 0.5 | 7/0.30 | 0.9 | 0.8 | 1 | 1.8 | 25 | 36 | 0.0162 | 690 |
| 0.75 | 7/0.37 | 1.11 | 0.8 | 1 | 1.8 | 26 | 24.5 | 0.0142 | 810 | |
| 1 | 7/0.43 | 1.29 | 0.8 | 1 | 1.8 | 27.5 | 18.1 | 0.0128 | 930 | |
| 1.5 | 7/0.52 | 1.56 | 0.8 | 1 | 1.8 | 29 | 12.1 | 0.0112 | 1130 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 1 | 1.8 | 32 | 7.41 | 0.0093 | 1510 | |
| 4 | 7/0.85 | 2.55 | 1 | 1.2 | 2 | 39.5 | 4.61 | 0.0092 | 2330 | |
| 6 | 7/1.04 | 3.12 | 1 | 1.2 | 2.2 | 43.5 | 3.08 | 0.0078 | 3100 | |
| 30 | 0.5 | 7/0.30 | 0.9 | 0.8 | 1 | 1.8 | 25 | 36 | 0.0162 | 700 |
| 0.75 | 7/0.37 | 1.11 | 0.8 | 1 | 1.8 | 26 | 24.5 | 0.0142 | 820 | |
| 1 | 7/0.43 | 1.29 | 0.8 | 1 | 1.8 | 27.5 | 18.1 | 0.0128 | 940 | |
| 1.5 | 7/0.52 | 1.56 | 0.8 | 1 | 1.8 | 29 | 12.1 | 0.0112 | 1140 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 1 | 1.8 | 32 | 7.41 | 0.0093 | 1540 | |
| 4 | 7/0.85 | 2.55 | 1 | 1.2 | 2 | 39.5 | 4.61 | 0.0092 | 2360 | |
| 6 | 7/1.04 | 3.12 | 1 | 1.2 | 2.2 | 43.5 | 3.08 | 0.0078 | 3150 | |
JIS C 3401标准电缆
| 芯数 | 导体 | 绝缘厚度 | 内护套厚度 | 外护套厚度 | 线缆外径 | 20°c时的导体电阻 | 70°c时的绝缘电阻 | 线缆重量 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 标称导体截面积 | 股数/直径 | 直径 | ||||||||
| mm² | mm | mm | mm | mm | mm | mm | Ohm / km | Ohm/km | kg / km | |
| 2 | 1 | 7/0.43 | 1.29 | 0.72 | 1 | 1.35 | 13 | 19.5 | 0.05 | 152 |
| 1.5 | 7/0.52 | 1.56 | 0.72 | 1 | 1.35 | 14 | 13.3 | 0.05 | 173 | |
| 2.5 | 7/0.67 | 2.01 | 0.72 | 1 | 1.35 | 15 | 7.98 | 0.05 | 208 | |
| 4 | 7/0.85 | 2.55 | 0.72 | 1 | 1.35 | 16 | 4.95 | 0.05 | 256 | |
| 6 | 7/1.04 | 3.12 | 0.9 | 1 | 1.35 | 18 | 3.3 | 0.05 | 334 | |
| 3 | 1 | 7/0.43 | 1.29 | 0.72 | 1 | 1.35 | 13 | 19.5 | 0.05 | 172 |
| 1.5 | 7/0.52 | 1.56 | 0.72 | 1 | 1.35 | 14 | 13.3 | 0.05 | 199 | |
| 2.5 | 7/0.67 | 2.01 | 0.72 | 1 | 1.35 | 15 | 7.98 | 0.05 | 245 | |
| 4 | 7/0.85 | 2.55 | 0.72 | 1 | 1.35 | 16 | 4.95 | 0.05 | 310 | |
| 6 | 7/1.04 | 3.12 | 0.9 | 1 | 1.35 | 18 | 3.3 | 0.05 | 411 | |
| 4 | 1 | 7/0.43 | 1.29 | 0.72 | 1 | 1.35 | 14 | 19.5 | 0.05 | 197 |
| 1.5 | 7/0.52 | 1.56 | 0.72 | 1 | 1.35 | 15 | 13.3 | 0.05 | 231 | |
| 2.5 | 7/0.67 | 2.01 | 0.72 | 1 | 1.35 | 16 | 7.98 | 0.05 | 289 | |
| 4 | 7/0.85 | 2.55 | 0.72 | 1 | 1.35 | 17 | 4.95 | 0.05 | 371 | |
| 6 | 7/1.04 | 3.12 | 0.9 | 1 | 1.35 | 20 | 3.3 | 0.05 | 501 | |
| 5 | 1 | 7/0.43 | 1.29 | 0.72 | 1 | 1.35 | 15 | 19.5 | 0.05 | 224 |
| 1.5 | 7/0.52 | 1.56 | 0.72 | 1 | 1.35 | 16 | 13.3 | 0.05 | 265 | |
| 2.5 | 7/0.67 | 2.01 | 0.72 | 1 | 1.35 | 17 | 7.98 | 0.05 | 335 | |
| 4 | 7/0.85 | 2.55 | 0.72 | 1 | 1.35 | 18 | 4.95 | 0.05 | 435 | |
| 6 | 7/1.04 | 3.12 | 0.9 | 1 | 1.35 | 21 | 3.3 | 0.05 | 595 | |
| 6 | 1 | 7/0.43 | 1.29 | 0.72 | 1 | 1.35 | 16 | 19.5 | 0.05 | 252 |
| 1.5 | 7/0.52 | 1.56 | 0.72 | 1 | 1.35 | 17 | 13.3 | 0.05 | 300 | |
| 2.5 | 7/0.67 | 2.01 | 0.72 | 1 | 1.35 | 18 | 7.98 | 0.05 | 384 | |
| 4 | 7/0.85 | 2.55 | 0.72 | 1 | 1.35 | 20 | 4.95 | 0.05 | 503 | |
| 6 | 7/1.04 | 3.12 | 0.9 | 1 | 1.35 | 22 | 3.3 | 0.05 | 692 | |
| 7 | 1 | 7/0.43 | 1.29 | 0.72 | 1 | 1.35 | 16 | 19.5 | 0.05 | 264 |
| 1.5 | 7/0.52 | 1.56 | 0.72 | 1 | 1.35 | 17 | 13.3 | 0.05 | 318 | |
| 2.5 | 7/0.67 | 2.01 | 0.72 | 1 | 1.35 | 18 | 7.98 | 0.05 | 411 | |
| 4 | 7/0.85 | 2.55 | 0.72 | 1 | 1.35 | 20 | 4.95 | 0.05 | 544 | |
| 6 | 7/1.04 | 3.12 | 0.9 | 1 | 1.35 | 22 | 3.3 | 0.05 | 754 | |
| 8 | 1 | 7/0.43 | 1.29 | 0.72 | 1 | 1.35 | 17 | 19.5 | 0.05 | 293 |
| 1.5 | 7/0.52 | 1.56 | 0.72 | 1 | 1.35 | 18 | 13.3 | 0.05 | 354 | |
| 2.5 | 7/0.67 | 2.01 | 0.72 | 1 | 1.35 | 19 | 7.98 | 0.05 | 461 | |
| 4 | 7/0.85 | 2.55 | 0.72 | 1 | 1.35 | 21 | 4.95 | 0.05 | 613 | |
| 6 | 7/1.04 | 3.12 | 0.9 | 1 | 1.35 | 24 | 3.3 | 0.05 | 853 | |
| 9 | 1 | 7/0.43 | 1.29 | 0.72 | 1 | 1.35 | 17 | 19.5 | 0.05 | 323 |
| 1.5 | 7/0.52 | 1.56 | 0.72 | 1 | 1.35 | 19 | 13.3 | 0.05 | 390 | |
| 2.5 | 7/0.67 | 2.01 | 0.72 | 1 | 1.35 | 20 | 7.98 | 0.05 | 511 | |
| 4 | 7/0.85 | 2.55 | 0.72 | 1 | 1.35 | 22 | 4.95 | 0.05 | 683 | |
| 6 | 7/1.04 | 3.12 | 0.9 | 1 | 1.35 | 25 | 3.3 | 0.05 | 954 | |
| 10 | 1 | 7/0.43 | 1.29 | 0.72 | 1 | 1.35 | 18 | 19.5 | 0.05 | 357 |
| 1.5 | 7/0.52 | 1.56 | 0.72 | 1 | 1.35 | 20 | 13.3 | 0.05 | 434 | |
| 2.5 | 7/0.67 | 2.01 | 0.72 | 1 | 1.35 | 21 | 7.98 | 0.05 | 568 | |
| 4 | 7/0.85 | 2.55 | 0.72 | 1 | 1.35 | 24 | 4.95 | 0.05 | 761 | |
| 6 | 7/1.04 | 3.12 | 0.9 | 1 | 1.44 | 28 | 3.3 | 0.05 | 1077 | |
| 11 | 1 | 7/0.43 | 1.29 | 0.72 | 1 | 1.35 | 18 | 19.5 | 0.05 | 369 |
| 1.5 | 7/0.52 | 1.56 | 0.72 | 1 | 1.35 | 20 | 13.3 | 0.05 | 452 | |
| 2.5 | 7/0.67 | 2.01 | 0.72 | 1 | 1.35 | 21 | 7.98 | 0.05 | 596 | |
| 4 | 7/0.85 | 2.55 | 0.72 | 1 | 1.35 | 24 | 4.95 | 0.05 | 802 | |
| 6 | 7/1.04 | 3.12 | 0.9 | 1 | 1.44 | 28 | 3.3 | 0.05 | 1140 | |
| 12 | 1 | 7/0.43 | 1.29 | 0.72 | 1 | 1.35 | 19 | 19.5 | 0.05 | 391 |
| 1.5 | 7/0.52 | 1.56 | 0.72 | 1 | 1.35 | 20 | 13.3 | 0.05 | 479 | |
| 2.5 | 7/0.67 | 2.01 | 0.72 | 1 | 1.35 | 22 | 7.98 | 0.05 | 635 | |
| 4 | 7/0.85 | 2.55 | 0.72 | 1 | 1.35 | 24 | 4.95 | 0.05 | 860 | |
| 6 | 7/1.04 | 3.12 | 0.9 | 1 | 1.53 | 29 | 3.3 | 0.05 | 1234 | |
| 13 | 1 | 7/0.43 | 1.29 | 0.72 | 1 | 1.35 | 20 | 19.5 | 0.05 | 418 |
| 1.5 | 7/0.52 | 1.56 | 0.72 | 1 | 1.35 | 21 | 13.3 | 0.05 | 514 | |
| 2.5 | 7/0.67 | 2.01 | 0.72 | 1 | 1.35 | 23 | 7.98 | 0.05 | 684 | |
| 4 | 7/0.85 | 2.55 | 0.72 | 1 | 1.35 | 25 | 4.95 | 0.05 | 927 | |
| 6 | 7/1.04 | 3.12 | 0.9 | 1 | 1.53 | 30 | 3.3 | 0.05 | 1334 | |
| 14 | 1 | 7/0.43 | 1.29 | 0.72 | 1 | 1.35 | 20 | 19.5 | 0.05 | 432 |
| 1.5 | 7/0.52 | 1.56 | 0.72 | 1 | 1.35 | 21 | 13.3 | 0.05 | 533 | |
| 2.5 | 7/0.67 | 2.01 | 0.72 | 1 | 1.35 | 23 | 7.98 | 0.05 | 711 | |
| 4 | 7/0.85 | 2.55 | 0.72 | 1 | 1.35 | 25 | 4.95 | 0.05 | 969 | |
| 6 | 7/1.04 | 3.12 | 0.9 | 1 | 1.53 | 30 | 3.3 | 0.05 | 1396 | |
| 15 | 1 | 7/0.43 | 1.29 | 0.72 | 1 | 1.35 | 20 | 19.5 | 0.05 | 461 |
| 1.5 | 7/0.52 | 1.56 | 0.72 | 1 | 1.35 | 22 | 13.3 | 0.05 | 570 | |
| 2.5 | 7/0.67 | 2.01 | 0.72 | 1 | 1.35 | 24 | 7.98 | 0.05 | 763 | |
| 4 | 7/0.85 | 2.55 | 0.72 | 1 | 1.35 | 26 | 4.95 | 0.05 | 1041 | |
| 6 | 7/1.04 | 3.12 | 0.9 | 1 | 1.53 | 32 | 3.3 | 0.05 | 1501 | |
| 16 | 1 | 7/0.43 | 1.29 | 0.72 | 1 | 1.35 | 20 | 19.5 | 0.05 | 474 |
| 1.5 | 7/0.52 | 1.56 | 0.72 | 1 | 1.35 | 22 | 13.3 | 0.05 | 588 | |
| 2.5 | 7/0.67 | 2.01 | 0.72 | 1 | 1.35 | 24 | 7.98 | 0.05 | 791 | |
| 4 | 7/0.85 | 2.55 | 0.72 | 1 | 1.44 | 27 | 4.95 | 0.05 | 1092 | |
| 6 | 7/1.04 | 3.12 | 0.9 | 1 | 1.62 | 32 | 3.3 | 0.05 | 1575 | |
| 17 | 1 | 7/0.43 | 1.29 | 0.72 | 1 | 1.35 | 21 | 19.5 | 0.05 | 484 |
| 1.5 | 7/0.52 | 1.56 | 0.72 | 1 | 1.35 | 23 | 13.3 | 0.05 | 601 | |
| 2.5 | 7/0.67 | 2.01 | 0.72 | 1 | 1.35 | 25 | 7.98 | 0.05 | 809 | |
| 4 | 7/0.85 | 2.55 | 0.72 | 1 | 1.44 | 28 | 4.95 | 0.05 | 1119 | |
| 6 | 7/1.04 | 3.12 | 0.9 | 1.2 | 1.62 | 36 | 3.3 | 0.05 | 1641 | |
| 18 | 1 | 7/0.43 | 1.29 | 0.72 | 1 | 1.35 | 21 | 19.5 | 0.05 | 499 |
| 1.5 | 7/0.52 | 1.56 | 0.72 | 1 | 1.35 | 23 | 13.3 | 0.05 | 622 | |
| 2.5 | 7/0.67 | 2.01 | 0.72 | 1 | 1.35 | 25 | 7.98 | 0.05 | 840 | |
| 4 | 7/0.85 | 2.55 | 0.72 | 1 | 1.44 | 28 | 4.95 | 0.05 | 1166 | |
| 6 | 7/1.04 | 3.12 | 0.9 | 1.2 | 1.62 | 34 | 3.3 | 0.05 | 1712 | |
| 19 | 1 | 7/0.43 | 1.29 | 0.72 | 1 | 1.35 | 21 | 19.5 | 0.05 | 515 |
| 1.5 | 7/0.52 | 1.56 | 0.72 | 1 | 1.35 | 23 | 13.3 | 0.05 | 643 | |
| 2.5 | 7/0.67 | 2.01 | 0.72 | 1 | 1.35 | 25 | 7.98 | 0.05 | 872 | |
| 4 | 7/0.85 | 2.55 | 0.72 | 1 | 1.44 | 28 | 4.95 | 0.05 | 1214 | |
| 6 | 7/1.04 | 3.12 | 0.9 | 1.2 | 1.62 | 34 | 3.3 | 0.05 | 1783 | |
| 20 | 1 | 7/0.43 | 1.29 | 0.72 | 1 | 1.35 | 22 | 19.5 | 0.05 | 541 |
| 1.5 | 7/0.52 | 1.56 | 0.72 | 1 | 1.35 | 24 | 13.3 | 0.05 | 676 | |
| 2.5 | 7/0.67 | 2.01 | 0.72 | 1 | 1.35 | 26 | 7.98 | 0.05 | 917 | |
| 4 | 7/0.85 | 2.55 | 0.72 | 1 | 1.44 | 30 | 4.95 | 0.05 | 1277 | |
| 6 | 7/1.04 | 3.12 | 0.9 | 1.2 | 1.62 | 36 | 3.3 | 0.05 | 1892 | |
| 21 | 1 | 7/0.43 | 1.29 | 0.72 | 1 | 1.35 | 22 | 19.5 | 0.05 | 556 |
| 1.5 | 7/0.52 | 1.56 | 0.72 | 1 | 1.35 | 24 | 13.3 | 0.05 | 697 | |
| 2.5 | 7/0.67 | 2.01 | 0.72 | 1 | 1.35 | 26 | 7.98 | 0.05 | 949 | |
| 4 | 7/0.85 | 2.55 | 0.72 | 1 | 1.44 | 30 | 4.95 | 0.05 | 1324 | |
| 6 | 7/1.04 | 3.12 | 0.9 | 1.2 | 1.62 | 36 | 3.3 | 0.05 | 1963 | |
| 22 | 1 | 7/0.43 | 1.29 | 0.72 | 1 | 1.35 | 23 | 19.5 | 0.05 | 582 |
| 1.5 | 7/0.52 | 1.56 | 0.72 | 1 | 1.35 | 25 | 13.3 | 0.05 | 731 | |
| 2.5 | 7/0.67 | 2.01 | 0.72 | 1 | 1.35 | 28 | 7.98 | 0.05 | 994 | |
| 4 | 7/0.85 | 2.55 | 0.72 | 1 | 1.44 | 31 | 4.95 | 0.05 | 1388 | |
| 6 | 7/1.04 | 3.12 | 0.9 | 1.2 | 1.62 | 37 | 3.3 | 0.05 | 2058 | |
| 23 | 1 | 7/0.43 | 1.29 | 0.72 | 1 | 1.35 | 23 | 19.5 | 0.05 | 598 |
| 1.5 | 7/0.52 | 1.56 | 0.72 | 1 | 1.35 | 25 | 13.3 | 0.05 | 752 | |
| 2.5 | 7/0.67 | 2.01 | 0.72 | 1 | 1.35 | 28 | 7.98 | 0.05 | 1026 | |
| 4 | 7/0.85 | 2.55 | 0.72 | 1 | 1.44 | 31 | 4.95 | 0.05 | 1435 | |
| 6 | 7/1.04 | 3.12 | 0.9 | 1.2 | 1.62 | 37 | 3.3 | 0.05 | 2129 | |
| 24 | 1 | 7/0.43 | 1.29 | 0.72 | 1 | 1.35 | 24 | 19.5 | 0.05 | 627 |
| 1.5 | 7/0.52 | 1.56 | 0.72 | 1 | 1.35 | 26 | 13.3 | 0.05 | 788 | |
| 2.5 | 7/0.67 | 2.01 | 0.72 | 1 | 1.44 | 29 | 7.98 | 0.05 | 1086 | |
| 4 | 7/0.85 | 2.55 | 0.72 | 1.2 | 1.62 | 33 | 4.95 | 0.05 | 1555 | |
| 6 | 7/1.04 | 3.12 | 0.9 | 1.2 | 1.62 | 39 | 3.3 | 0.05 | 2229 | |
| 25 | 1 | 7/0.43 | 1.29 | 0.72 | 1 | 1.35 | 24 | 19.5 | 0.05 | 642 |
| 1.5 | 7/0.52 | 1.56 | 0.72 | 1 | 1.35 | 26 | 13.3 | 0.05 | 809 | |
| 2.5 | 7/0.67 | 2.01 | 0.72 | 1 | 1.44 | 29 | 7.98 | 0.05 | 1118 | |
| 4 | 7/0.85 | 2.55 | 0.72 | 1.2 | 1.62 | 33 | 4.95 | 0.05 | 1603 | |
| 6 | 7/1.04 | 3.12 | 0.9 | 1.2 | 1.62 | 39 | 3.3 | 0.05 | 2301 | |
| 26 | 1 | 7/0.43 | 1.29 | 0.72 | 1 | 1.35 | 24 | 19.5 | 0.05 | 658 |
| 1.5 | 7/0.52 | 1.56 | 0.72 | 1 | 1.35 | 26 | 13.3 | 0.05 | 830 | |
| 2.5 | 7/0.67 | 2.01 | 0.72 | 1 | 1.44 | 29 | 7.98 | 0.05 | 1149 | |
| 4 | 7/0.85 | 2.55 | 0.72 | 1.2 | 1.62 | 33 | 4.95 | 0.05 | 1650 | |
| 6 | 7/1.04 | 3.12 | 0.9 | 1.2 | 1.62 | 39 | 3.3 | 0.05 | 2372 | |
| 27 | 1 | 7/0.43 | 1.29 | 0.72 | 1 | 1.35 | 24 | 19.5 | 0.05 | 679 |
| 1.5 | 7/0.52 | 1.56 | 0.72 | 1 | 1.35 | 26 | 13.3 | 0.05 | 858 | |
| 2.5 | 7/0.67 | 2.01 | 0.72 | 1 | 1.53 | 30 | 7.98 | 0.05 | 1199 | |
| 4 | 7/0.85 | 2.55 | 0.72 | 1.2 | 1.62 | 34 | 4.95 | 0.05 | 1706 | |
| 6 | 7/1.04 | 3.12 | 0.9 | 1.2 | 1.62 | 40 | 3.3 | 0.05 | 2455 | |
| 28 | 1 | 7/0.43 | 1.29 | 0.72 | 1 | 1.35 | 25 | 19.5 | 0.05 | 703 |
| 1.5 | 7/0.52 | 1.56 | 0.72 | 1 | 1.35 | 27 | 13.3 | 0.05 | 889 | |
| 2.5 | 7/0.67 | 2.01 | 0.72 | 1 | 1.53 | 31 | 7.98 | 0.05 | 1243 | |
| 4 | 7/0.85 | 2.55 | 0.72 | 1.2 | 1.62 | 35 | 4.95 | 0.05 | 1784 | |
| 6 | 7/1.04 | 3.12 | 0.9 | 1.2 | 1.62 | 41 | 3.3 | 0.05 | 2546 | |
| 29 | 1 | 7/0.43 | 1.29 | 0.72 | 1 | 1.35 | 25 | 19.5 | 0.05 | 719 |
| 1.5 | 7/0.52 | 1.56 | 0.72 | 1 | 1.35 | 27 | 13.3 | 0.05 | 910 | |
| 2.5 | 7/0.67 | 2.01 | 0.72 | 1 | 1.53 | 31 | 7.98 | 0.05 | 1275 | |
| 4 | 7/0.85 | 2.55 | 0.72 | 1.2 | 1.62 | 35 | 4.95 | 0.05 | 1831 | |
| 6 | 7/1.04 | 3.12 | 0.9 | 1.2 | 1.62 | 41 | 3.3 | 0.05 | 2617 | |
| 30 | 1 | 7/0.43 | 1.29 | 0.72 | 1 | 1.44 | 25 | 19.5 | 0.05 | 743 |
| 1.5 | 7/0.52 | 1.56 | 0.72 | 1 | 1.44 | 28 | 13.3 | 0.05 | 941 | |
| 2.5 | 7/0.67 | 2.01 | 0.72 | 1 | 1.53 | 31 | 7.98 | 0.05 | 1306 | |
| 4 | 7/0.85 | 2.55 | 0.72 | 1.2 | 1.62 | 35 | 4.95 | 0.05 | 1878 | |
| 6 | 7/1.04 | 3.12 | 0.9 | 1.2 | 1.62 | 41 | 3.3 | 0.05 | 2688 | |
© 2021 Caledonian Cables 鲁ICP备16049315号-1
