N2XCY

应用及描述

N2XCY一般用于在室内安装,敷设于室外电缆管道和电站下,工业厂房和开关以及当地的供应系统。用于仪器面板和开关板布线的室内安装,不能用于户外或潮湿的环境中。

标准及认证

IEC 60502 -1, VDE 0276-603

电缆结构

- 实心或多股裸铜导体
- 遵循DIN VDE 0295 cl.1/cl.2, BS 6360 cl.1/cl.2 and IEC 60228 cl.1/cl.2
- XLPE绝缘DIX3类,遵循VDE 0276-603/5G
- 色彩编码遵循DIN VDE 0293(HD 308)
- PVC填充
- 同心导体:铜丝和铜带
- PVC外护套DMV5 遵循HD 603.1

技术特性

- 工作电压: 600/1000 V
- 测试电压: 4000 V
- 最小弯曲半径: 15 x Ø
- 应用时的工作温度: -5º C ~ +70º C
- 固定安装温度: - 30º C ~ +70º C
- 短路时可达到的温度: +250º C
- 阻燃: IEC 60332.1
- 绝缘电阻: >20 MΩ x km

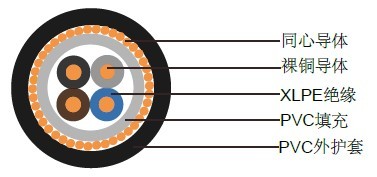

N2XCY德国VDE标准工业电缆N2XCY德国VDE标准工业电缆

电缆参数

线规 芯数 x 导体
截面积
# x mm²
导体类型 绝缘厚度
mm
护套厚度
mm
通信导体
截面积
mm²
标称外径
mm
电缆重量
kg/km
16 1x1.5 re/rm 0.7 1.8 1.5 9.7 114
14 1x2.5 re/rm 0.7 1.8 2.5 10.2 135
12 1x4 re/rm 0.7 1.8 4 10.8 170
10 1x6 re/rm 0.7 1.8 6 11.3 214
8 1x10 re/rm 0.7 1.8 10 12.4 304
6 1x16 re/rm 0.7 1.8 16 13.8 431
4 1x25 rm 0.9 1.8 16 15.5 548
2 1x35 rm 0.9 1.8 16 16.6 650
1 1x50 rm 1 1.8 25 18.8 892
2/0 1x70 rm 1.1 1.8 35 21.0 1207
3/0 1x95 rm 1.1 1.8 50 23.5 1600
4/0 1x120 rm 1.2 1.8 70 26.0 2045
300mcm 1x150 rm 1.4 1.8 70 28.0 2320
350mcm 1x185 rm 1.6 1.8 95 30.5 2942
500mcm 1x240 rm 1.7 1.9 120 34.0 3761
750mcm 1x300 rm 1.8 2.1 150 37.0 4591
- 1x400 rm 2 2 185 41.5 5830
- 1x500 rm 2.2 2.3 240 46.0 7450
- 1x630 rm 2.4 2.5 300 52.0 9561
- 1x800 rm 0.7 1.8 400 58.0 12290
16 2x1.5 re/rm 0.7 1.8 1.5 13.0 198
14 2x2.5 re/rm 0.7 1.8 2.5 13.9 239
12 2x4 re/rm 0.7 1.8 4 15.0 304
10 2x6 re/rm 0.7 1.8 6 16.2 384
8 2x10 rm 0.7 1.8 10 18.1 546
6 2x16 rm 0.7 1.8 16 21.0 766
4 2x25 rm 0.9 1.8 16 24.0 1030
2 2x35 rm 0.9 1.8 16 26.0 1283
1 2x50 rm 1 1.9 25 29.5 1631
2/0 2x70 rm 1.1 2 35 33.0 2247
3/0 2x95 rm 1.1 2..2 50 37.5 3028
4/0 2x120 rm 1.2 2.3 70 42.0 3817
300mcm 2x150 rm 1.4 2.5 70 46.0 4526
350mcm 2x185 rm 1.6 2.6 95 51.0 5694
500mcm 2x240 rm 1.7 2.8 120 57.0 7302
750mcm 2x300 rm 1.8 3.1 150 63.0 9049
16 3x1.5 re/rm 0.7 1.8 1.5 13.5 218
14 3x2.5 re/rm 0.7 1.8 2.5 14.5 270
12 3x4 re/rm 0.7 1.8 4 15.7 348
10 3x6 re/rm 0.7 1.8 6 16.9 446
8 3x10 rm 0.7 1.8 10 19.0 645
6 3x16 rm 0.7 1.8 16 22.0 916
4 3x25 rm 0.9 1.8 16 25.0 1260
2 3x35 rm 0.9 1.8 16 27.5 1597
1 3x50 sm 1 1.9 25 30.0 1919
2/0 3x70 sm 1.1 1.9 35 34.0 2697
3/0 3x95 sm 1.1 2 50 37.5 3608
4/0 3x120 sm 1.2 2.2 70 41.5 4531
300mcm 3x150 sm 1.4 2.3 70 46.5 5459
350mcm 3x185 sm 1.6 2.5 95 51.0 6820
500mcm 3x240 sm 1.7 2.6 120 57.5 8834
750mcm 3x300 sm 1.8 2.8 150 62.5 10899
16 4x1.5 re/rm 0.7 1.8 1.5 14.3 250
14 4x2.5 re/rm 0.7 1.8 2.5 15.4 315
12 4x4 re/rm 0.7 1.8 4 16.8 406
10 4x6 re/rm 0.7 1.8 6 18.1 523
8 4x10 rm 0.7 1.8 10 20.5 772
6 4x16 rm 0.7 1.8 16 23.5 1100
4 4x25 rm 0.9 1.8 16 27.5 1541
2 4x35 rm 0.9 1.9 16 30.0 1976
1 4x50 sm 1 2 25 33.5 2428
2/0 4x70 sm 1.1 2.1 35 38.5 3418
3/0 4x95 sm 1.1 2.2 50 42.5 4583
4/0 4x120 sm 1.2 2.4 70 48.0 5807
300mcm 4x150 sm 1.4 2.5 70 54.0 6992
350mcm 4x185 sm 1.6 2.7 95 58.5 8704
500mcm 4x240 sm 1.7 2.8 120 65.5 11283
750mcm 4x300 sm 1.8 3 150 71.5 13920
16 5x1.5 re/rm 0.7 1.8 1.5 15.2 291
14 5x2.5 re/rm 0.7 1.8 2.5 16.4 365
12 5x4 re/rm 0.7 1.8 4 17.9 476
10 5x6 re/rm 0.7 1.8 6 19.5 617
8 5x10 rm 0.7 1.8 10 22.5 909
6 5x16 rm 0.7 1.8 16 25.5 1300
4 5x25 rm 0.9 1.8 16 29.5 1844
2 5x35 rm 0.9 1.9 16 32.5 2390
1 5x50 rm 1.1 2.2 25 37.0 3120
