PUR Sheathed, Screened, Halogen Free, Twisted Pair Data Cable
Application
These halogen free cables are used as drag chain cables for permanent flexible stresses in machineries, machines and tool building, robot systems, constantly moving machine components and multi-shift-operation.
Standards
- UL AWM Style 20233
- CSA AWM I/II A/B

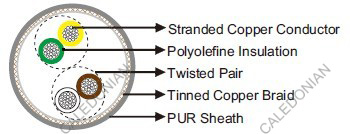

Construction
| Conductor |
Stranded bare copper, class 6 according to VDE 0295/BS 6360/IEC 60228. |
| Insulation |
Polyolefin. |
| Screen |
Tinned copper wire braid. |
| Sheath |
Full polyurethane sheath TMPU. |
Technical Data
| Rated Voltage Uo/U (Um) |
350V |
| Operating Temperatures |
flexing: -40℃~+80℃; fixed: -50℃~+80℃ |
| Minimum Bending Radius |
flexing: 10×OD; fixed: 5×OD |
| Flame Retardant |
VDE 0482-332-1-2/DIN EN 60332-1-2/IEC 60332-1 |
| Halogen Free |
Yes |
| Oil Resistant |
Yes |
| Ozone Resistant |
Yes |
| Silicone Free |
Yes |
| UV Resistant |
Yes |
| Abrasion Resistance |
Yes |
Dimensions and Weight
| Construction |
Nominal Overall Diameter |
Nominal Weight |
| No. of cores×mm2 |
mm |
kg/km |
| 24AWG |
| 1×2×0.25 |
4.8 |
26 |
| 2×2×0.25 |
6.7 |
61 |
| 3×2×0.25 |
7.1 |
70 |
| 4×2×0.25 |
7.6 |
82 |
| 5×2×0.25 |
8.3 |
99 |
| 6×2×0.25 |
8.9 |
126 |
| 8×2×0.25 |
9.3 |
147 |
| 10×2×0.25 |
11.7 |
179 |
| 14×2×0.25 |
12.7 |
210 |
| 22AWG |
| 1×2×0.34 |
5.1 |
35 |
| 2×2×0.34 |
7.2 |
80 |
| 3×2×0.34 |
7.6 |
100 |
| 4×2×0.34 |
8.2 |
118 |
| 5×2×0.34 |
9.0 |
134 |
| 6×2×0.34 |
9.7 |
162 |
| 8×2×0.34 |
10.3 |
214 |
| 10×2×0.34 |
12.8 |
270 |
| 14×2×0.34 |
13.8 |
304 |
| 20AWG |
| 1×2×0.5 |
5.6 |
47 |
| 2×2×0.5 |
8.4 |
100 |
| 3×2×0.5 |
8.9 |
131 |
| 4×2×0.5 |
9.7 |
149 |
| 5×2×0.5 |
10.7 |
169 |
| 6×2×0.5 |
11.7 |
181 |
| 8×2×0.5 |
12.4 |
274 |
| 10×2×0.5 |
15.6 |
332 |
| 14×2×0.5 |
17.1 |
390 |
| 19AWG |
| 1×2×0.75 |
6.1 |
56 |
| 2×2×0.75 |
9.1 |
102 |
| 3×2×0.75 |
9.6 |
144 |
| 4×2×0.75 |
10.7 |
160 |
| 5×2×0.75 |
11.7 |
193 |
| 6×2×0.75 |
12.9 |
216 |
| 8×2×0.75 |
13.7 |
327 |
| 10×2×0.75 |
17.2 |
451 |
| 14×2×0.75 |
18.8 |
521 |
| 18AWG |
| 1×2×1 |
6.5 |
64 |
| 2×2×1 |
10.0 |
120 |
| 3×2×1 |
10.6 |
160 |
| 4×2×1 |
11.7 |
184 |
| 5×2×1 |
13.2 |
217 |
G: with green-yellow earth core
×: without green-yellow earth core
