LiYY Twisted Pair Data Cable UL
Application
These twisted pair control cables are suitable for use in tool making machinery conveyor system and production lines, in industrial plants and in air conditioning as well as in the steel producing industries.
Standards
- UL Style 2464
- UL Style 1061/1729

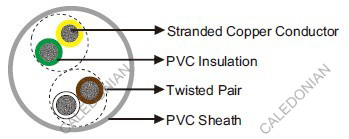

Construction
| Conductor |
Stranded tinned copper, according to ASTM-B. |
| Insulation |
PVC class 43. |
| Cable Element |
Twisted pairs. |
| Sheath |
PVC class 43. |
Technical Data
| Rated Voltage Uo/U (Um) |
300V |
| Operating Temperatures |
flexing: -10℃~+80℃; fixed: -20℃~+80℃ |
| Minimum Bending Radius |
flexing: 15×OD; fixed: 6×OD |
| Flame Retardant |
UL VW-1/CSA FT-1 |
| Oil Resistant |
Yes |
| Silicone Free |
Yes |
Dimensions and Weight
| Construction |
Nominal Overall Diameter |
Nominal Weight |
| No. of cores×mm2 |
mm |
kg/km |
| 26AWG |
| 1×2×0.14 |
3.6 |
20 |
| 2×2×0.14 |
5.1 |
24 |
| 3×2×0.14 |
5.3 |
30 |
| 4×2×0.14 |
5.8 |
38 |
| 5×2×0.14 |
6.2 |
44 |
| 6×2×0.14 |
6.8 |
51 |
| 7×2×0.14 |
6.8 |
57 |
| 8×2×0.14 |
7.3 |
64 |
| 10×2×0.14 |
7.4 |
76 |
| 12×2×0.14 |
9.1 |
93 |
| 14×2×0.14 |
9.8 |
103 |
| 15×2×0.14 |
10.6 |
109 |
| 16×2×0.14 |
10.6 |
112 |
| 18×2×0.14 |
11.1 |
119 |
| 20×2×0.14 |
11.9 |
130 |
| 22×2×0.14 |
12.4 |
150 |
| 24×2×0.14 |
13.1 |
169 |
| 25×2×0.14 |
13.4 |
178 |
| 24AWG |
| 1×2×0.23 |
3.8 |
32 |
| 2×2×0.23 |
4.0 |
36 |
| 3×2×0.23 |
5.7 |
48 |
| 4×2×0.23 |
6.0 |
56 |
| 5×2×0.23 |
6.6 |
71 |
| 6×2×0.23 |
7.2 |
80 |
| 7×2×0.23 |
7.2 |
89 |
| 8×2×0.23 |
7.8 |
98 |
| 10×2×0.23 |
9.2 |
111 |
| 12×2×0.23 |
9.7 |
135 |
| 14×2×0.23 |
10.2 |
160 |
| 15×2×0.23 |
10.9 |
171 |
| 16×2×0.23 |
10.9 |
185 |
| 18×2×0.23 |
11.5 |
209 |
| 20×2×0.23 |
12.2 |
230 |
| 22×2×0.23 |
13.0 |
248 |
| 24×2×0.23 |
13.7 |
279 |
| 25×2×0.23 |
14.2 |
292 |
| 22AWG |
| 1×2×0.34 |
4.2 |
38 |
| 2×2×0.34 |
5.9 |
44 |
| 3×2×0.34 |
6.3 |
60 |
| 4×2×0.34 |
7.0 |
79 |
| 5×2×0.34 |
7.6 |
92 |
| 6×2×0.34 |
8.2 |
119 |
| 7×2×0.34 |
8.2 |
128 |
| 8×2×0.34 |
9.0 |
139 |
| 10×2×0.34 |
10.7 |
171 |
| 12×2×0.34 |
11.3 |
194 |
| 14×2×0.34 |
12.1 |
222 |
| 15×2×0.34 |
12.7 |
231 |
| 16×2×0.34 |
12.7 |
240 |
| 18×2×0.34 |
13.6 |
264 |
| 20×2×0.34 |
14.4 |
291 |
| 22×2×0.34 |
15.1 |
300 |
| 24×2×0.34 |
16.2 |
359 |
| 25×2×0.34 |
16.7 |
381 |
| 20AWG |
| 1×2×0.56 |
4.6 |
60 |
| 2×2×0.56 |
6.5 |
80 |
| 3×2×0.56 |
7.1 |
94 |
| 4×2×0.56 |
7.8 |
104 |
| 5×2×0.56 |
8.6 |
130 |
| 6×2×0.56 |
9.6 |
151 |
| 7×2×0.56 |
9.6 |
174 |
| 8×2×0.56 |
12.1 |
262 |
| 10×2×0.56 |
12.5 |
298 |
| 12×2×0.56 |
13.1 |
302 |
| 14×2×0.56 |
13.8 |
327 |
| 15×2×0.56 |
14.7 |
370 |
| 16×2×0.56 |
14.7 |
402 |
| 18×2×0.56 |
15.7 |
480 |
| 20×2×0.56 |
16.7 |
551 |
| 22×2×0.56 |
17.2 |
621 |
| 24×2×0.56 |
18.6 |
703 |
| 25×2×0.56 |
19.2 |
721 |
G: with green-yellow earth core
×: without green-yellow earth core
