Halogen Free, Screened Control Cable 300/500 V
Application
These screened, halogen-free, flame retardant cables are designed for use as measuring and control cable in machinery and plant construction, in building and air-conditioning systems, in warehousing and conveying systems, in ship-building and for renewable energy such as in the construction of wind turbines.
Standards

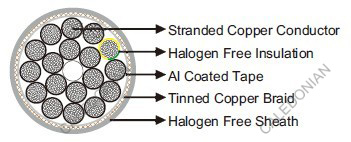

Construction
| Conductor |
Stranded bare copper, class 5 according to DIN VDE 0295/BS 6360/IEC 60228. |
| Insulation |
Halogen-free compound special polymer. |
| Separator |
Al coated tape. |
| Screen |
Tinned copper braid. |
| Sheath |
Halogen-free compound special polymer. |
Technical Data
| Rated Voltage Uo/U (Um) |
300/500V |
| Operating Temperatures |
flexing: -30℃~+80℃; fixed: -40℃~+80℃ |
| Minimum Bending Radius |
flexing: 10×OD; fixed: 4×OD |
| Flame Retardant |
VDE 0482-332-1-2/DIN EN 60332-1-2/IEC 60332-1 |
| Halogen Free |
VDE 0482 part 267/DIN EN 50267-2-1/IEC 60754 |
| Gases Corrosively |
NF X 10-702 |
| Smoke Density |
VDE 0482 part 1034-1+2/IEC 61034-1+2/DIN EN 61034-1+2/BS 7622 part 1+2 |
| Oil Resistant |
Yes |
| Ozone Resistant |
Yes |
| Silicone Free |
Yes |
| UV Resistant |
Yes |
Dimensions and Weight
| Construction |
Nominal Overall Diameter |
Nominal Weight |
| No. of cores×mm2 |
mm |
kg/km |
| 2×0.5 |
5.7 |
46 |
| 3G0.5 |
6.0 |
56 |
| 3×0.5 |
6.0 |
56 |
| 4G0.5 |
6.5 |
62 |
| 4×0.5 |
6.5 |
62 |
| 5G0.5 |
7.0 |
75 |
| 5×0.5 |
7.0 |
75 |
| 7G0.5 |
7.9 |
98 |
| 8G0.5 |
8.5 |
116 |
| 10G0.5 |
9.3 |
135 |
| 12G0.5 |
9.6 |
158 |
| 16G0.5 |
10.7 |
210 |
| 18G0.5 |
11.2 |
216 |
| 20G0.5 |
11.9 |
240 |
| 25G0.5 |
13.4 |
315 |
| 2×0.75 |
6.1 |
60 |
| 3G0.75 |
6.4 |
68 |
| 3×0.75 |
6.4 |
68 |
| 4G0.75 |
6.9 |
78 |
| 4×0.75 |
6.9 |
78 |
| 5G0.75 |
7.4 |
95 |
| 5×0.75 |
7.4 |
95 |
| 7G0.75 |
8.6 |
130 |
| 7×0.75 |
8.6 |
130 |
| 8G0.75 |
9.4 |
145 |
| 10G0.75 |
10.0 |
180 |
| 12G0.75 |
10.4 |
203 |
| 16G0.75 |
11.6 |
275 |
| 18G0.75 |
12.4 |
290 |
| 20G0.75 |
12.9 |
320 |
| 25G0.75 |
14.8 |
413 |
| 2×1 |
6.4 |
66 |
| 3G1 |
6.7 |
80 |
| 3×1 |
6.7 |
80 |
| 4G1 |
7.3 |
100 |
| 4×1 |
7.3 |
100 |
| 5G1 |
7.8 |
130 |
| 7G1 |
9.1 |
160 |
| 8G1 |
9.9 |
197 |
| 10G1 |
10.8 |
232 |
| 12G1 |
11.2 |
260 |
| 16G1 |
12.3 |
346 |
| 18G1 |
13.2 |
382 |
| 20G1 |
13.8 |
440 |
| 25G1 |
15.8 |
540 |
| 2×1.5 |
6.6 |
88 |
| 3G1.5 |
6.9 |
100 |
| 3×1.5 |
6.9 |
100 |
| 4G1.5 |
7.5 |
125 |
| 5G1.5 |
8.4 |
158 |
| 7G1.5 |
10.0 |
210 |
| 8G1.5 |
11.1 |
244 |
| 10G1.5 |
12.0 |
315 |
| 12G1.5 |
12.1 |
340 |
| 16G1.5 |
14.3 |
424 |
| 18G1.5 |
14.6 |
480 |
| 25G1.5 |
17.6 |
702 |
| 2×2.5 |
8.3 |
132 |
| 3G2.5 |
9.0 |
168 |
| 4G2.5 |
9.8 |
195 |
| 5×2.5 |
10.9 |
256 |
| 7G2.5 |
12.9 |
345 |
| 8G2.5 |
13.1 |
390 |
| 10G2.5 |
15.2 |
482 |
| 12G2.5 |
15.9 |
572 |
| 2×4 |
9.8 |
220 |
| 3G4 |
10.6 |
251 |
| 4G4 |
11.5 |
305 |
| 5G4 |
12.7 |
388 |
| 7G4 |
14.0 |
504 |
| 2×6 |
11.5 |
270 |
| 3G6 |
12.4 |
351 |
| 4G6 |
13.8 |
464 |
| 5G6 |
15.7 |
546 |
| 7G6 |
16.6 |
670 |
| 2×10 |
14.9 |
461 |
| 3G10 |
15.9 |
574 |
| 4G10 |
17.8 |
785 |
| 5G10 |
19.6 |
914 |
| 7G10 |
21.6 |
1308 |
| 2×16 |
17.2 |
670 |
| 3G16 |
19.0 |
911 |
| 4G16 |
20.8 |
1105 |
| 5G16 |
22.9 |
1293 |
| 7G16 |
25.0 |
2149 |
| 3G25 |
23.5 |
1432 |
| 4G25 |
26.2 |
1911 |
| 5G25 |
29.7 |
2414 |
| 3G35 |
26.0 |
1914 |
| 4×35 |
30.4 |
2542 |
| 5G35 |
34.1 |
3180 |
| 3G50 |
30.3 |
3080 |
| 4G50 |
34.6 |
3550 |
| 5G50 |
39.1 |
4753 |
| 3G70 |
37.9 |
3840 |
| 4G70 |
41.3 |
4939 |
| 5G70 |
46.4 |
6572 |
| 3G95 |
41.5 |
5651 |
| 4G95 |
46.2 |
6690 |
| 5G95 |
51.5 |
8370 |
| 3G120 |
46.8 |
6342 |
| 4G120 |
51.0 |
8453 |
| 4G150 |
59.2 |
9104 |
G: with green-yellow earth core
×: without green-yellow earth core
