Halogen Free Control Cable 300/500 V
Application
These halogen-free, flame retardant cables are designed for use as measuring and control cable in machinery and plant construction, in building and air-conditioning systems, in warehousing and conveying systems, in ship-building and for renewable energy such as in the construction of wind turbines.
Standards

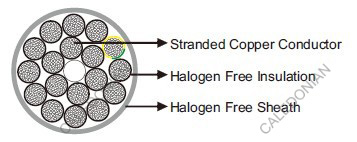

Construction
| Conductor |
Stranded bare copper, class 5 according to DIN VDE 0295/BS 6360/IEC 60228. |
| Insulation |
Halogen-free compound special polymer. |
| Sheath |
Halogen-free compound special polymer. |
Technical Data
| Rated Voltage Uo/U (Um) |
300/500V |
| Operating Temperatures |
flexing: -30℃~+90℃; fixed: -40℃~+90℃ |
| Minimum Bending Radius |
flexing: 10×OD; fixed: 4×OD |
| Flame Retardant |
VDE 0482-332-1-2/DIN EN 60332-1-2/IEC 60332-1 |
| Halogen Free |
VDE 0482 part 267/DIN EN 50267-2-1/IEC 60754 |
| Gases Corrosively |
NF X 10-702 |
| Smoke Density |
VDE 0482 part 1034-1+2/IEC 61034-1+2/DIN EN 61034-1+2/BS 7622 part 1+2 |
| Oil Resistant |
Yes |
| Ozone Resistant |
Yes |
| Silicone Free |
Yes |
| UV Resistant |
Yes |
Dimensions and Weight
| Construction |
Nominal Overall Diameter |
Nominal Weight |
| No. of cores×mm2 |
mm |
kg/km |
| 2×0.5 |
4.8 |
43 |
| 3G0.5 |
5.1 |
50 |
| 3×0.5 |
5.1 |
50 |
| 4G0.5 |
5.7 |
60 |
| 4×0.5 |
5.7 |
60 |
| 5G0.5 |
6.2 |
71 |
| 5×0.5 |
6.2 |
71 |
| 7G0.5 |
7.4 |
84 |
| 8G0.5 |
8.0 |
101 |
| 10G0.5 |
8.8 |
121 |
| 12G0.5 |
9.1 |
142 |
| 16G0.5 |
10.0 |
183 |
| 18G0.5 |
10.7 |
204 |
| 20G0.5 |
11.2 |
227 |
| 25G0.5 |
12.7 |
283 |
| 30G0.5 |
13.5 |
324 |
| 34G0.5 |
14.5 |
367 |
| 37G0.5 |
15.0 |
381 |
| 41G0.5 |
15.8 |
417 |
| 42G0.5 |
15.8 |
454 |
| 50G0.5 |
17.3 |
519 |
| 61G0.5 |
19.4 |
635 |
| 65G0.5 |
19.4 |
694 |
| 2×0.75 |
5.2 |
47 |
| 3G0.75 |
5.5 |
56 |
| 3×0.75 |
5.5 |
56 |
| 4G0.75 |
6.2 |
69 |
| 4×0.75 |
6.2 |
69 |
| 5G0.75 |
6.8 |
83 |
| 5×0.75 |
6.8 |
83 |
| 7G0.75 |
8.1 |
114 |
| 7×0.75 |
8.1 |
114 |
| 8G0.75 |
8.9 |
136 |
| 10G0.75 |
9.6 |
172 |
| 12G0.75 |
9.9 |
183 |
| 16G0.75 |
11.5 |
241 |
| 18G0.75 |
11.9 |
266 |
| 20G0.75 |
12.6 |
291 |
| 25G0.75 |
14.1 |
374 |
| 30G0.75 |
15.4 |
450 |
| 34G0.75 |
16.4 |
517 |
| 37G0.75 |
17.2 |
541 |
| 41G0.75 |
17.6 |
611 |
| 42G0.75 |
17.6 |
621 |
| 50G0.75 |
19.8 |
742 |
| 61G0.75 |
20.9 |
853 |
| 65G0.75 |
21.5 |
909 |
| 2×1 |
5.5 |
63 |
| 3G1 |
6.0 |
74 |
| 3×1 |
6.0 |
74 |
| 4G1 |
6.6 |
90 |
| 4×1 |
6.6 |
90 |
| 5G1 |
7.2 |
109 |
| 7G1 |
8.6 |
151 |
| 8G1 |
9.4 |
184 |
| 10G1 |
10.4 |
224 |
| 12G1 |
10.7 |
243 |
| 16G1 |
12.0 |
314 |
| 18G1 |
12.7 |
361 |
| 20G1 |
13.5 |
387 |
| 25G1 |
15.2 |
496 |
| 34G1 |
17.4 |
670 |
| 37G1 |
18.4 |
713 |
| 41G1 |
18.9 |
784 |
| 42G1 |
18.9 |
824 |
| 50G1 |
21.0 |
952 |
| 61G1 |
22.2 |
1140 |
| 65G1 |
22.8 |
1201 |
| 2×1.5 |
6.3 |
70 |
| 3G1.5 |
6.7 |
94 |
| 3×1.5 |
6.7 |
94 |
| 4G1.5 |
7.3 |
112 |
| 5G1.5 |
8.2 |
141 |
| 7G1.5 |
9.8 |
191 |
| 8G1.5 |
10.6 |
224 |
| 10G1.5 |
11.7 |
282 |
| 12G1.5 |
12.1 |
311 |
| 16G1.5 |
13.6 |
392 |
| 18G1.5 |
14.5 |
450 |
| 20G1.5 |
15.2 |
497 |
| 25G1.5 |
17.8 |
630 |
| 34G1.5 |
19.8 |
842 |
| 37G1.5 |
20.2 |
897 |
| 50G1.5 |
23.7 |
1277 |
| 61G1.5 |
25.3 |
1460 |
| 65G1.5 |
26.0 |
1612 |
| 2×2.5 |
7.6 |
118 |
| 3G2.5 |
8.3 |
151 |
| 4G2.5 |
9.1 |
181 |
| 5G2.5 |
10.2 |
224 |
| 7G2.5 |
12.1 |
316 |
| 8G2.5 |
13.2 |
370 |
| 10G2.5 |
14.7 |
451 |
| 12G2.5 |
15.2 |
499 |
| 16G2.5 |
17.5 |
720 |
| 18G2.5 |
18.1 |
769 |
| 20G2.5 |
18.7 |
911 |
| 25G2.5 |
22.2 |
1047 |
| 30G2.5 |
23.7 |
1280 |
| 2×4 |
9.2 |
199 |
| 3G4 |
9.9 |
247 |
| 4G4 |
11.0 |
299 |
| 5G4 |
12.1 |
369 |
| 7G4 |
13.3 |
463 |
| 8G4 |
15.9 |
601 |
| 10G4 |
17.3 |
698 |
| 12G4 |
18.3 |
790 |
| 16G4 |
20.2 |
1130 |
| 18G4 |
21.8 |
1280 |
| 2×6 |
10.8 |
266 |
| 3G6 |
11.7 |
360 |
| 4G6 |
13.0 |
429 |
| 5G6 |
14.5 |
529 |
| 7G6 |
16.0 |
631 |
| 2×10 |
14.0 |
440 |
| 3G10 |
15.0 |
550 |
| 4G10 |
16.8 |
708 |
| 5G10 |
18.7 |
862 |
| 7G10 |
20.6 |
1124 |
| 2×16 |
16.5 |
642 |
| 3G16 |
17.6 |
830 |
| 4G16 |
19.7 |
1060 |
| 5G16 |
21.9 |
1270 |
| 7G16 |
24.4 |
1794 |
| 3G25 |
22.5 |
1190 |
| 4G25 |
25.2 |
1594 |
| 5G25 |
27.9 |
2014 |
| 3G35 |
25.2 |
1590 |
| 4G35 |
28.0 |
2200 |
| 5G35 |
31.0 |
2693 |
| 3G50 |
29.5 |
2571 |
| 4G50 |
33.4 |
3087 |
| 5G50 |
37.2 |
3980 |
| 3G70 |
37.0 |
3207 |
| 4G70 |
41.2 |
4077 |
| 5G70 |
46.0 |
5501 |
| 3G95 |
41.0 |
4708 |
| 4G95 |
46.0 |
5590 |
| 5G95 |
50.5 |
6972 |
| 3G120 |
45.7 |
5515 |
| 4G120 |
50.3 |
7100 |
| 3G150 |
52.2 |
6279 |
| 4G150 |
57.0 |
7781 |
G: with green-yellow earth core
×: without green-yellow earth core
