XHH / XHHW-2



Application and Description
The XHH conductor is suitable for most current wiring solutions for residential, commercial and industrial applications. Because of its excellent response under overload and short-circuit situations, it is used in service entrance even underground installations. The XHH conductor is able to work properly up to 90ºC in dry environmental conditions. Its insulation is flame retardant, besides, it provides mechanical resistance against to humidity, chemical agents and oils. Its black pigmentation resist very well the ultraviolet sun light,
therefore it could be used with no issue in outside applications. Conductors certified with suffix ´´-2 ´´, as XHH-2, these can meet a continuous operation temperature of 90ºC(194ºF) in dry or wet conditions.



Cable Construction

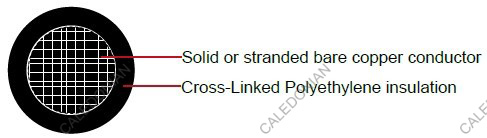

Conductor: Solid or stranded bare annealed copper
Insulation: Cross-linked polyethylene(XLPE)
Color: upon request, black is preferable

Industrial Cables XHH / XHHW-2         Industrial Cables XHH / XHHW-2

Technical Characteristics

- ASTM B3, B8
- UL 1581 - Flame Exposure Test
- UL 44 - Thermoset-Insulated Wires and Cables
- National Electrical Code (NEC)



Cable Parameter

AWG/ kcmil Strand Nominal Insulation Thickness Inch/mm Nominal Overall Diameter Inch/mm Cable Weight Lbs/kft kg/km
14 1 0.030 0.76 0.124 3.15 16 24
12 1 0.030 0.76 0.141 3.58 24 36
10 1 0.030 0.76 0.162 4.11 37 55
8 1 0.045 1.14 0.218 5.55 61 91
6 1 0.045 1.14 0.252 6.40 93 138
14 7 0.030 0.76 0.133 3.37 17 26
12 7 0.030 0.76 0.152 3.85 26 39
10 7 0.030 0.76 0.176 4.46 39 58
8 7 0.045 1.14 0.236 5.99 65 96
6 7 0.045 1.14 0.274 6.95 98 146
4 19 0.045 1.14 0.316 8.04 148 220
3 19 0.045 1.14 0.344 8.75 184 274
2 19 0.045 1.14 0.376 9.54 229 341
1 19 0.045 1.14 0.431 10.94 292 434
1/0 19 0.055 1.40 0.470 11.94 364 541
2/0 19 0.055 1.40 0.514 13.07 453 674
3/0 19 0.055 1.40 0.564 14.33 566 842
4/0 19 0.055 1.40 0.620 15.75 708 1053
250 37 0.065 1.65 0.706 17.93 838 1247
300 37 0.065 1.65 0.761 19.33 999 1486
350 37 0.065 1.65 0.812 20.62 1159 1725
400 37 0.065 1.65 0.859 21.82 1319 1963
500 37 0.065 1.65 0.945 24.00 1639 2439
600 61 0.080 2.03 1.053 26.75 1980 2946
750 61 0.080 2.03 1.159 29.44 2459 3660
1000 61 0.080 2.03 1.313 33.35 3256 4845
