XHHW/XLPO, 3-core, Type TC Power Cable



Application and Description
XHHW/XLPO, type TC Power Cable is used to supply power to motors, or for connection to other power devices in industrial settings. Primary installations include cable trays, raceways, and outdoor locations where supported by a messenger wire. Type TC Power Cable is listed for direct burial or in underground ducts and for use in Class 1, Division 2 hazardous locations and Class 1 control circuits. This cable may be used in wet and dry locations at temperatures not to exceed 90°C.

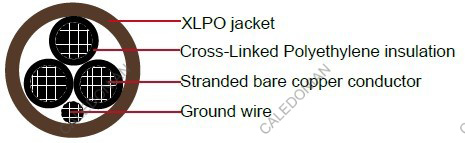

Cable Construction

Conductor: Stranded bare annealed copper (Type XHHW-2)
Insulation: Flame-retardant and moisture resistant Cross-Linked Polyethylene (FRXLPE)
Ground Wire: bare annealed copper (Type XHHW-2)
Jacket: Flame retardant, moisture and sunlight resistant XLPO (LSOH is available upon request)
Color: upon request, black is preferable



Industrial Cables XHHW/XLPO, 3-core, Type TC Power Cable



Technical Characteristics

- UL 44 -Thermoset-Insulated Wires and Cables
- UL 1277 - Electrical Power and Control Tray Cables
- UL 1581 - Flame Exposure Test (VW-1)
- ICEA S-58-679 Method 4
- UL 1685 - Flame Exposure Test
- ICEA T-29-520 - Vertical Cable Tray Flame Test
- IEEE 383 (IEEE 1202/FT4) - Flame Test
- ICEA S-95-658 (NEMA WC 70) construction requirements



Cable Parameter

AWG or kcmil Strand Ground Wire Size AWG Nominal jacket Thickness Inch/mm Nominal Overall Diameter Inch/mm Cable Weight Lbs/kft kg/km
8 7 10 0.060 1.52 0.681 17.30 330 491
6 7 8 0.060 1.52 0.766 19.46 468 697
4 7 8 0.060 1.52 0.797 20.24 606 901
2 7 6 0.080 2.03 0.96 24.38 954 1420
1 19 6 0.080 2.03 1.1 27.94 1173 1746
1/0 19 6 0.080 2.03 1.186 30.12 1421 2115
2/0 19 6 0.080 2.03 1.279 32.49 1704 2536
3/0 19 4 0.080 2.03 1.385 35.18 2135 3177
4/0 19 4 0.080 2.03 1.506 38.25 2580 3839
250 37 4 0.080 2.03 1.653 41.99 3021 4496
300 37 3 0.110 2.79 1.827 46.41 3684 5481
350 37 3 0.110 2.79 1.935 49.15 4219 6277
400 37 3 0.110 2.79 2.032 51.61 4747 7064
500 37 2 0.110 2.79 2.214 56.24 5755 8564
750 61 1 0.110 2.79 2.663 67.64 8543 12711
