VVF
Application and Description
For exposed fix installation in dry location, surface wiring, concealed wiring in wooden partition or above
ceiling, embedded in plaster.
Reference Standard
TIS 11-2531

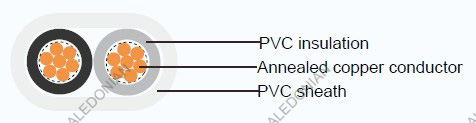

Cable Construction
Conductor: Solid and stranded annealed copper, Sizes: 1 mm2 up to 35 mm2
Insulation: Polyvinyl chloride (PVC)
Color : Light grey, Black
Sheath: Polyvinyl chloride (PVC), white color
Technical Characteristics
Maximum conductor temperature 70oC
Circuit voltage not exceeding 750 volts
Test voltage 2500 volts
Cable Parameter
No. of cores |
Conductor |
Insulation thickness |
Sheath thickness | Overall diameter |
Maximum continuous current rating in free air | Minimum insulation resistance (at 70°c) |
Cable weight |
||
| size | No.& dia.of wire | lower limit | upper limit | ||||||
mm² |
mm | mm |
mm | mm | mm |
A |
MOhm/km |
kg / km |
|
| 2 | 1 | 1/1.13 |
0.8 | 1.4 | 5.2 x 8.0 |
6.4 x 9.4 |
13 | 0.0141 |
75 |
| 2 | 1 | 7/0.40 |
0.8 | 1.4 | 5.4 x 8.0 |
6.6 x 9.8 |
13 | 0.0135 |
75 |
| 2 | 1.5 |
1/1.38 |
0.8 | 1.4 | 5.6 x 8.4 |
6.6 x 10.0 |
17 | 0.0123 |
90 |
| 2 | 1.5 |
7/0.50 |
0.8 | 1.4 | 5.6 x 8.6 |
7.0 x 10.5 |
17 | 0.0116 |
90 |
| 2 | 2.5 |
1/1.78 |
0.8 | 1.4 | 5.8 x 9.2 |
7.2 x 11.0 |
22 | 0.0102 |
110 |
| 2 | 2.5 |
7/0.67 |
0.8 | 1.4 | 6.2 x 9.6 |
7.4 x 11.5 |
22 | 0.0093 |
110 |
| 2 | 4 | 1/2.25 |
0.9 | 1.4 | 6.6 x 10.5 |
7.8 x 12.5 |
30 | 0.0094 |
160 |
| 2 | 4 | 7/0.85 |
0.9 | 1.4 | 6.8 x 11.0 |
8.2 x 13.0 |
30 | 0.0085 |
160 |
| 2 | 6 | 7/1.04 |
0.9 | 1.4 | 7.4 x 12.0 |
8.8 x 14.5 |
37 | 0.0073 |
220 |
| 2 | 10 |
7/1.35 |
1.1 | 1.5 | 8.8 x 15.0 |
10.5 x 17.0 |
52 | 0.0069 |
340 |
| 2 | 16 |
7/1.70 |
1.1 | 1.5 | 9.8 x 17.0 |
11.5 x 19.5 |
69 | 0.0057 |
480 |
| 2 | 25 |
7/2.14 |
1.3 | 1.6 | 11.5 x 20.5 |
13.5 x 23.5 |
91 | 0.0054 |
720 |
| 2 | 35 |
19/1.53 |
1.3 | 1.7 | 13.0 x 23.0 |
15.0 x 26.5 |
112 | 0.0047 |
940 |
