Spanish Standard Industrial Cables
RZ1-K(AS) 0.6/1kV

Application and Description

These cables with zero Halogen are high security cables. In case of fire, they do not emit toxic or corrosive gases, thereby protecting public health and avoiding any possible damage to electronic equipment. For this reason, its use is recommended in public places such as: hospitals, schools, museums, airports, bus terminals, shops in general, tunnels, the underground, etc., as well as in calculation centres, offices, production plants, laboratories, etc.

Standard and Approval

UNE 21123, EN 60332, EN 60332-1, EN 50266, EN 50267-1, EN 50267-2, EN 61034, IEC 60332-1, IEC 60332-3, IEC 60754-1, IEC 60754-2, IEC 61034, IEC 60331

Cable Construction

- Flexible electrolytic annealed copper conductor
- Class 5 in accordance with IEC 60228
- XLPE insulation type DIX 3 according to HD603.
- Color coded to HD 308
- LOSH polyolephine outer sheath according to UNE 21123

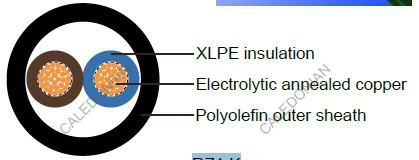

Industrial Cables RZ1-K(AS)            Industrial Cables RZ1-K(AS)

Technical Characteristics

- Working voltage: 600/1000 volts
- Test voltage: 2000 volts
- Minimum bending radius: 10 x Ø
- Working temperature: -15º C to +90º C
- Short circuit temperature: +250º C
- Insulation resistance: 20 MΩ x km
- Halogen free: IEC 60754-1, EN 50267-2-1
- No corrosive gases: IEC 60754-2, EN 50267-2-2
- No toxic gases: NES 02-713, NF X 70-100
- Low smoke density: IEC 61034, EN 50268-2
- Flame retardant: IEC 60332-1, EN 50265-2-1
- Non-flame propagating: IEC 60332-3, EN 50266-2

Cable Parameter

AWG No. of Cores x
Nominal Cross
Sectional Area
# x mm²
Nominal
Overall Diameter mm
Nominal Weight kg/km AWG No. of Cores x
Nominal Cross
Sectional Area
# x mm²
Nominal
Overall Diameter mm
Nominal Weight kg/km
16(30/30) 1×1.5 5.7 45 8(80/26) 3×10/6 16.1 493
14(50/30) 1×2.5 6.1 57 6(128/26) 3×16/10 18.0 724
12(56/28) 1×4 6.7 73 4(200/26) 3×25/16 21.8 1091
10(84/28) 1×6 7.2 94 2 (280/26) 3×35/16 24.1 1405
8(80/26) 1×10 8.1 136 1(400/26) 3×50/25 28.1 1968
6(128/26) 1×16 9.0 192 2/0(356/24) 3×70/35 32.6 2722
4(200/26) 1×25 11.0 286 3/0(485/24) 3×95/50 37.0 3598
2 (280/26) 1×35 12.1 380 4/0(614/24) 3×120/70 41.5 4609
1(400/26) 1×50 13.8 520 300 MCM (765/24) 3×150/70 44.9 5579
2/0 (356/24) 1×70 15.9 716 350 MCM (944/24) 3×185/95 51.5 6926
3/0 (485/24) 1×95 17.6 924 500MCM (1225/24) 3×240/120 58.8 9030
4/0(614/24) 1×120 19.4 1167 16(30/30) 4G 1.5 9.7 136
300 MCM (765/24) 1×150 21.5 1456 14(50/30) 4G 2.5 10.6 182
350 MCM (944/24) 1×185 24.1 1762 12(56/28) 4G 4 12.0 252
500MCM (1225/24) 1×240 26.9 2283 10(84/28) 4G 6 13.3 336
- 1×300 29.6 2832 8(80/26) 4G 10 15.4 513
- 1×400 33.8 3735 6(128/26) 4×16 18.7 783
- 1×500 38.0 4845 4(200/26) 4×25 23.1 1196
- 1×630 43.1 6311 2 (280/26) 4×35 25.5 1616
16(30/30) 2×1.5 8.3 97 1(400/26) 4×50 30.3 2242
14(50/30) 2×2.5 9.2 127 2/0(356/24) 4×70 35.3 3119
12(56/28) 2×4 10.1 167 3/0(485/24) 4×95 39.4 4037
10(84/28) 2×6 11.2 219 4/0(614/24) 4×120 43.6 5104
8(80/26) 2×10 13.0 323 300 MCM (765/24) 4×150 49.8 6569
6(128/26) 2×16 15.8 490 350 MCM (944/24) 4×185 56.5 8063
16(30/30) 3G1.5 8.8 114 500MCM (1225/24) 4×240 63.1 10421
14(50/30) 3G2.5 9.8 151 16(30/30) 5G 1.5 10.3 159
12(56/28) 3G4 11 206 14(50/30) 5G 2.5 11.6 217
10(84/28) 3G6 12 271 12(56/28) 5G 4 13.0 302
8(80/26) 3G10 14.1 412 10(84/28) 5G 6 14.6 406
6(128/26) 3×16 16.9 624 8(80/26) 5G 10 16.8 625
4(200/26) 3×25 20.6 947 6(128/26) 5G 16 20.4 956
2 (280/26) 3×35 23.4 1276 4(200/26) 5G 25 25.1 1459
1(400/26) 3×50 26.8 1752 2 (280/26) 5G 35 28.1 1968
2/0(356/24) 3×70 31.5 2436 1(400/26) 5G 50 33.7 2779
