Portuguese Standard Industrial Cables
XV

APPLICATIONS:

These cables are used for electricity supply in low voltage installation system, They are suitable for installation in indoors and outdoors, in cable ducts, underground, in power and switching stations, local energy distributions, industrial plants, where there is no risk of mechanical damage.

STANDARD:

IEC 60502-1 NP2363

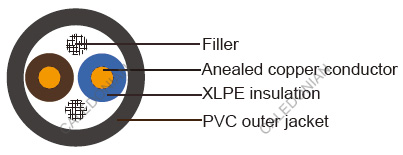

CONSTRUCTION:

Industrial Cables XV

Conductor: Plain copper conductor, , class 1(<6mmsq)/class2(>6mmsq) to IEC 60228
Insulation: XLPE insulation
Colour Code :HD 308 S2
Filler: Not fibrous and not hygroscopic fill
Over Sheath: Flexible black PVC, type ST2 outer jacket

PHYSICAL PROPERTIES:

Minimum bending radius: 12 x Ø
Operation temperature range: -15 °C to 90 °C
Short-circuit temperature: 250 °C

ELECTRICAL PROPERTIES:

Working Voltage: 600/1000 volts
Test voltage: 3500 volts
Insulation resistance: 1000 MΩ x km

PARAMETERS:

Nominal Cross Section Overall Diameter (Approx.) Cable Weight (Approx.) Nominal Cross Section Overall Diameter (Approx.) Cable Weight (Approx.)
mm2 mm Kg/Km mm2 mm Kg/Km
1 x 35 12.0 390 3 x 185 + 1 x 95 52.5 7810
1 x 50 13.5 515 3 x 240 + 1 x 120 59.0 10000
1 x 70 15.5 720 5 x 1,5 11.5 180
1 x 95 17.5 975 5 x 2,5 12.5 240
1 x 120 19.5 1225 5 x 4 13.5 330
1 x 150 21.0 1490 5 x 6 15.0 465
1 x 185 23.5 1855 5 x 10 18.0 685
1 x 240 26.5 2385 5 x 16 21.0 1020
1 x 300 28.5 2995 3 x 25 + 2G16 25.5 1440
1 x 400 32.0 3905 3 x 35 + 2G16 27.5 1785
1 x 500 36.0 4835 3 x 50 + 2G25 31.5 2415
2 x 1.5 9.5 115 3 x 70 + 2G35 36.0 3345
2 x 2.5 10.0 140 3 x 95 + 2G50 40.5 4480
2 x 4 11.0 185 3 x 120 + 2G70 46.5 5875
2 x 6 12.0 255 3 x 150 + 2G70 49.5 6835
2 x 10 14.5 365 3 x 185 + 2G95 55.5 8700
2 x 16 18.5 610 3 x 240 + 2G120 62.5 11125
2 x 25 21.5 890 5 x 1,5 11.0 180
2 x 35 23.5 1135 6 x 1,5 11.5 215
2 x 50 26.5 1475 7 x 1,5 11.5 220
3 x 1,5 10.0 130 8 x 1,5 13.2 265
3 x 2,5 10.5 170 10 x 1,5 14.3 280
3 x 4 11.5 225 12 x 1,5 14.7 320
3 x 6 12.5 295 14 x 1,5 15.5 360
3 x 10 15.0 455 16 x 1,5 16.2 405
3 x 16 19.5 745 19 x 1,5 17.1 460
3 x 25 23.0 1110 24 x 1,5 19.8 570
3 x 35 25.0 1440 30 x 1,5 21.0 685
3 x 50 28.0 1880 37 x 1,5 22.6 820
4 x 1,5 10.5 155 5 x 2,5 12.0 245
4 x 2,5 11.5 200 6 x 2,5 12.6 285
4 x 4 12.5 275 7 x 2,5 12.6 295
4 x 6 14.0 365 8 x 2,5 14.5 355
4 x 10 16.5 560 10 x 2,5 15.8 385
4 x 16 19.5 830 12 x 2,5 16.3 440
3 x 25 + 1 x 16 24.0 1280 14 x 2,5 17.1 500
3 x 35 + 1 x 16 26.0 1610 16 x 2,5 18.0 565
3 x 50 + 1 x 25 29.5 2150 19 x 2,5 18.9 650
3 x 70 + 1 x 35 33.5 3000 24 x 2,5 22.0 805
3 x 95 + 1 x 50 38.0 4015 30 x 2,5 23.3 975
3 x 120 + 1 x 70 43.5 5210 37 x 2,5 25.2 1180
3 x 150 + 1 x 70 47.0 6180
