JIS Industrial Cables
KPEV/IPEV

Application and Description

The rated Votage is 300V and below. These cables are used for instrumentation for monitoring, data recoding and conveying information such as communication, telemetering, pressure, flow and indication lamps, etc.

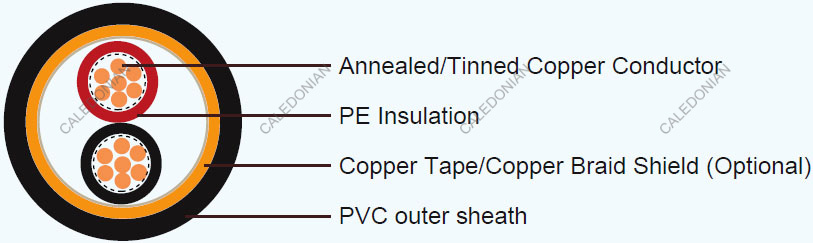

Cable Construction

Conductor Solid and stranded annealed copper (K) or tinned copper (I), Sizes: 0.5 mm² up to 1.5 mm²
Insulation Polyethylene (PE)
Shield (optional) Copper tape (S) or copper wire braid (SB)
Sheath Polyvinyl chloride (PVC), white color
KPEV/IPEV - Industrial Cables to JIS Standard

Technical Characteristics

Maximum conductor temperature 70°C
Circuit voltage not exceeding 600 volts
Test voltage 2000volts(JIS) / 3500 volts(IEC)

Cable Parameter

Part No. No. of pairs Nominal cross section area Number and diameter of wire Insulation thickness Sheath thickness Max overall diameter Cable weight
mm² No./mm mm mm mm kg/km
KPEV-S 1P0.75 1 0.75 7/0.37 0.5 1.5 7.9 80
KPEV-S 3P1.5 3 1.5 7/0.52 0.5 1.5 13.5 210
IPEV-S 1P0.75 1 0.75 7/0.37 0.5 1.5 7.9 80
IPEV-S 2P0.75 2 0.75 7/0.37 0.5 1.5 11.0 108
IPEV 1P0.75 1 0.75 7/0.37 0.5 1.5 7.4 72
