JIS C 3342 Cables
VV/VVR

Application and Description:

For exposed fix installation in dry location, surface wiring, concealed wiring in wooden partition or above ceiling, embedded in plaster.

Name Code:

V: Polyvinyl chloride (PVC)
V: Polyvinyl chloride (PVC)
R : Round type

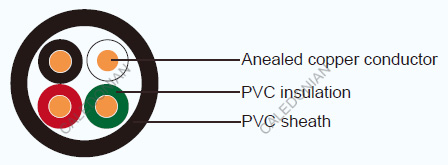

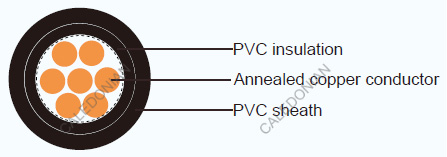

Cable Construction:

JIS C 3342 Industrial Cables VV/VVRJIS C 3342 Industrial Cables VV/VVR

Conductor: Solid, circular stranded, circuar or segmental compacted stranded annealed copper wires
Insulation: Polyvinyl chloride (PVC)
Color :
1 core- Black
2 cores- Black and white
3 cores- Black, white and red
4 cores- Black, white, red and green
Filler: Non-hygroscopic material(optional)
Binding tape: Polyester (Mylar) tape (optional)
Sheath: Polyvinyl chloride (PVC), Black colorr, other colors are upon request.

Technical Characteristics:

Maximum conductor temperature 70oC
Circuit voltage not exceeding 600 volts

Cable Parameter:

Diameter /Nominal sectional area No. of wire Diameter of Conductor (approx.) Thickness of insulation Thickness of sheath Overall diameter (approx.) Maximum DC. resistance of Cdr. at 20°C Test Vltage Insulation Resistance Cable weight (approx.)
mm/mm² mm mm mm mm Ohm / km V kOhm / km kg / km
1 core
1 solid 1.0 0.8 1.5 5.6 22.8 1500 50 41
1.2 solid 1.2 0.8 1.5 5.8 15.8 1500 50 46
1.6 solid 1.6 0.8 1.5 6.2 8.92 1500 50 60
2.0 solid 2.0 0.8 1.5 6.6 5.65 1500 50 75
2.6 solid 2.6 1 1.5 7.6 3.35 1500 50 105
3.2 solid 3.2 1.2 1.5 8.6 2.21 1500 50 145
2 7/0.6 1.8 0.8 1.5 6.4 9.24 1500 50 65
3.5 7/O.8 2.4 0.8 1.5 7.0 5.20 1500 50 85
5.5 7/1.0 3.0 0.8 1.5 8.0 3.33 1500 50 115
8 7/1.2 3.6 1.2 1.5 9.0 2.31 1500 50 155
8 compacted 3.4 1.2 1.5 8.8 2.29 1500 50 150
14 7/1.6 4.8 1.4 1.5 11.0 1.3 2000 40 235
14 compacted 4.4 1.4 1.5 10.5 1.31 2000 40 225
22 7/2.0 6.0 1.6 1.5 12.5 0.824 2000 40 335
22 compacted 5.5 1.6 1.5 12.0 0.832 2000 40 320
38 7/2.6 7.8 1.8 1.5 14.5 0.847 2500 40 515
38 19/1.6 8.0 1.8 1.5 15.0 0.479 2500 40 520
38 compacted 7.3 1.8 1.5 14.0 0.481 2500 40 510
60 19/2.0 10.0 1.8 1.5 17.0 0.303 2500 30 750
60 compacted 9.3 1.8 1.5 16.0 0.305 2500 30 735
100 19/2.6 13.0 2.0 1.5 20 0.180 2500 30 1200
100 compacted 12 2.0 1.5 19.0 0.183 2500 30 1 160
150 37/2.3 16.1 2.2 1.6 24 0.118 3000 20 1760
150 compacted 14.7 2.2 1.6 23 0.122 3000 30 1690
200 37/2.6 18.2 2.4 1.7 21 0.0922 3000 20 2220
200 compacted 17 2.4 1.7 26 0、091 5 3000 20 2220
250 61/2.3 20.7 2.4 1.8 30 0.0722 3000 20 2830
250 compacted 19.0 2.4 1.8 28 0.0739 3000 20 2740
325 61/2.6 23.4 2.6 1.9 33 0.0565 3000 20 3580
325 compacted 22 2.6 1.9 31 0.0568 3000 20 3520
400 61/2.9 26.1 2.6 2.1 36 0.0454 3000 20 4390
400 compacted 24.1 2.6 2 34 0.0462 3000 20 4280
500 61/3.2 28.8 2.8 2.2 39 0.0373 3500 20 5320
500 compacted 26.9 2.8 2.1 37 0.0369 3500 20 5310
600 91/2.9 31.9 3.0 2.3 43 0.0304 3500 20 6 470
600 compacted 29.5 3.0 2.2 40 0.0308 3500 20 6340
800 127/2.8 36.4 3.2 2.5 48 0.0234 3500 20 8340
800 compacted 34.0 3.2 2.4 46 0.0231 3500 20 8360
800 segmental 34 3.2 2.4 46 0.0231 3500 20 8350
1000 127/3.2 41.6 3.2 2.7 54 0.0179 3500 20 10800
1000 compacted 38.0 3.2 2.6 50 0.0185 3500 20 10500
1000 segmental 38.0 3.2 2.6 51 0 0181 3500 20 10400
2 cores
1 solid 1.0 0.8 1.5 8.7 23.3 1500 50 85
1.2 solid 1.2 0.8 1.5 9.1 16.1 1500 50 95
1.6 solid 1.6 0.8 1.5 9.9 9.10 1500 50 120
2.0 solid 2.0 0.8 1.5 11 5.76 1500 50 155
2.6 solid 2.6 1 1.5 13.0 3.42 1500 50 225
3.2 solid 3.2 1.2 1.5 15.0 2.25 1500 50 315
2 7/0.6 1.8 0.8 1.5 10.5 9.42 1500 50 130
3.5 7/O.8 2.4 0.8 1.5 11.5 5.30 1500 50 175
5.5 7/1.0 3.0 1 1.5 13.5 3.40 1500 50 245
8 7/1.2 3.6 1.2 1.5 15.5 2.36 1500 50 335
8 compacted 3.4 1.3 1.5 15.5 2.34 2000 50 325
14 7/1.6 4.8 1.4 1.5 19.0 1.33 2000 40 520
14 compacted 4.4 1.5 1.5 18.0 1.34 2000 40 500
22 7/2.0 6.0 1.6 1.6 23 0.840 2000 40 760
22 compacted 5.5 1.7 1.5 21 0.849 2000 40 715
38 7/2.6 7.8 1.8 1.7 27 0.497 2500 40 1 190
38 19/1.6 8.0 1.8 1.8 28 0.489 2500 40 1200
38 compacted 7.3 1.8 1.9 26 0.491 2500 40 1 160
60 19/2.0 10.0 1.8 1.9 32 0.309 2500 30 1740
60 compacted 9.3 1.8 1.9 31 0.311 2500 30 1680
100 19/2.6 13.0 2.0 2.2 39 0.184 2500 30 2800
100 compacted 12.0 2.0 2.1 37 0.187 2500 30 2670
150 37/2.3 16.1 2.2 2.5 47 0.129 3000 20 4 120
150 compacted 14.7 2.2 2.3 44 0.124 3000 30 3870
200 37/2.6 18.2 2.4 2.7 52 0.0940 3000 20 5 1、
200 compacted 17.0 2.4 2.6 50 0.0933 3000 20 5090
250 61/2.3 20.7 2.4 2 9 58 0.0736 3000 20 6570
250 compacted 19、0 2.4 2.7 54 0.0736 3000 20 6250
325 61/2.6 23.4 2.6 3.1 64 0.0576 3000 20 8300
325 compacted 21.7 2.6 3.0 61 0、0579 3000 20 8040
3 cores
1 solid 1.0 0.8 1.5 9.1 23.3 1500 50 100
1.2 solid 1.2 0.8 1.5 9.5 16.1 1500 50 115
1.6 solid 1.6 0.8 1.5 10.5 9.10 1500 50 150
2.0 solid 2.0 0.8 1.5 11.5 5.76 1500 50 195
2.6 solid 2.6 1 1.5 13.5 3.42 1500 50 290
3.2 solid 3.2 1.2 1.5 16.0 2.25 1500 50 410
2 7/0.6 1.8 0.8 1.5 1l.0 9.42 1500 50 160
3.5 7/O.8 2.4 0.8 1.5 12.5 5.30 1500 50 220
5.5 7/1.0 3.0 1 1.5 14.5 3.40 1500 50 320
8 7/1.2 3.6 1.2 1.5 16.5 2.36 1500 50 440
8 compacted 3.4 1.3 1.5 16.0 2.34 2000 50 425
14 7/1.6 4.8 1.4 1.5 20 1.33 2000 40 690
14 compacted 4.4 1.5 1.5 19.0 1.34 2000 40 665
22 7/2.0 6.0 1.6 1.6 24 0.840 2000 40 1020
22 compacted 5.5 1.7 1.6 23 0.849 2000 40 975
38 7/2.6 7.8 1.8 1.8 29 0.497 2500 40 1620
38 19/1.6 8.0 1.8 1.8 30 0.489 2500 40 1640
38 compacted 7.3 1.8 1.8 28 0.491 2500 40 1590
60 19/2.0 10.0 1.8 2.0 34 0.309 2500 30 2400
60 compacted 9.3 1.8 1.9 33 0.311 2500 30 2320
100 19/2.6 13.0 2.0 2.3 42 0.184 2500 30 3870
100 compacted 12.0 2.0 2.2 40 0.187 2500 30 3720
150 37/2.3 16.1 2.2 2.6 50 0.120 3000 20 5720
150 compacted 14.7 2.2 2.5 47 0.124 3000 30 5430
200 37/2.6 18.2 2.4 2.8 56 0.124 3000 20 7220
200 compacted 17.0 2.4 2.7 53 O.0933 3000 20 7130
250 61/2.3 20.7 2.4 3.0 62 0.0736 3000 20 9160
250 compacted 19、0 2.4 2.9 58 0.0754 3000 20 8800
325 61/2.6 23.4 2.6 3.3 69 0.0576 3000 20 11700
325 compacted 21.7 2.6 3.1 65 0.0579 3000 20 11300
4cores
1 solid 1.0 0.8 1.5 9.8 23.3 1500 50 120
1.2 solid 1.2 0.8 1.5 10.5 16.1 1500 50 140
1.6 solid 1.6 0.8 1.5 11.5 9.10 1500 50 185
2.0 solid 2.0 0.8 1.5 12.5 5.76 1500 50 240
2.6 solid 2.6 1 1.5 15.0 3.42 1500 50 365
3.2 solid 3.2 1.2 1.5 17.0 2.25 1500 50 515
2 7/0.6 1.8 0.8 1.5 12.0 9.42 1500 50 195
3.5 7/O.8 2.4 0.8 1.5 13.5 5:30 1500 50 275
5.5 7/1.0 3.0 1 1.5 16.0 3.40 1500 50 400
8 7/1.2 3.6 1.2 1.5 18.0 2.36 1500 50 555
8 compacted 3.4 1.3 1.5 17.5 2.34 2000 50 535
14 7/1.6 4.8 1.4 1.6 22 1.33 2000 40 890
14 compacted 4.4 1.5 1.5 21 1.34 2000 40 855
22 7/2.0 6.0 1.6 1.7 27 0.840 2000 40 1320
22 compacted 5.5 1.7 1.7 25 0.849 2000 40 1260
38 7/2.6 7.8 1.8 1.9 32 0.497 2500 40 2100
38 19/1.6 8.0 1.8 1.9 33 0.489 2500 40 2120
38 compacted 7.3 1.8 1.9 31 0.491 2500 40 2060
60 19/2.0 10.0 1.8 2.1 38 0.309 2500 30 3120
60 compacted 9.3 1.8 2.1 36 0.311 2500 30 3030
100 19/2.6 13.0 2.0 2.5 47 0.184 2500 30 5060
100 compacted 12.0 2.0 2.4 44 0.187 2500 30 4870
150 37/2.3 16.1 2.2 2.8 56 0.120 3000 20 7480
150 compacted 14.7 2.2 2.7 52 0.124 3000 30 7110
200 37/2.6 18.2 2.4 3.0 62 0.0940 3000 20

9440

200 compacted 17.0 2.4 2.9 59 0.0933 3000 20

9330

250 61/2.3 20.7 2.4 3.3 69 0.0736 3000 20

12100

250 compacted 19、0 2.4 3.1 65 0.0754 3000 20

11600

325 61/2.6 23.4 2.6 3.6 17 0.0576 3000 20

15300

325 compacted 21.7 2.6 3.4 73 0.0579 3000 20

14900
