JIS C 3401 Cables
CVV

Application and Description:

For supervisory electrical equipment, station control circuits, outdoor, suitable installation in dry or wet cable trenches.

Name Code:

C: For control

V: Vinyl
V: Vinyl

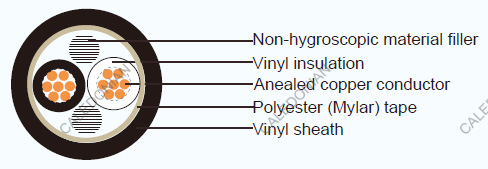

Cable Construction:

JIS C 3401 Industrial Cables CVV

Conductor: Circular or compacted circuar stranded annealed copper wires

Seperator: A proper separator may be applied to a conductor

Insulation: Vinyl

Color :

2 cores- Black and white
3 cores- Black, white and red
4 cores- Black, white, red and green

More than 4 cores: Black core with marking numbers

Filler: Non-hygroscopic material(optional)
Binding tape: Polyester (Mylar) tape (optional)
Sheath: Vinyl, Black color

Technical Characteristics:

Maximum conductor temperature 90oC
Circuit voltage not exceeding 600 volts
Test voltage 2000 volts

Cable Parameter:

No. of cores Nominal sectional area No. of wire Diameter of Conductor (approx.) Thickness of insulation Thickness  of sheath Overall diameter (approx.) Maximum  DC.  resistance of Cdr. at 20°C Cable weight (approx.)
mm² mm mm mm mm Ohm / km kg / km
2 1.25 7/0.45 1.35 0.8 1.5 9.4 16.8 100
2 7/0.6 1.8 0.8 1.5 10.5 9.42 130
3.5 7/0.8 2.4 0.8 1.5 11.5 5.3 175
5.5 7/1.0 3 1 1.5 )3.5 3.4 245
8 7/1.2 3.6 1.2 1.5 15.5 2.36 335
8 compacted 3.4 1.2 1.5 2.34 325
14 7/1.6 4.8 1.4 1.5 19 1.33 520
14 compacted 4.4 1.4 1.5 18 1.34 500
22 7/2.0 6 1.6 1.6 23 0.84 760
22 compacted 5.5 1.6 1.5 21 0.849 715
3 1.25 7/0.45 1.35 0.8 1.5 9.9 16.8 120
2 71'0.6 1.8 0.8 1.5 11 9.42 160
3.5 7/0.8 2.4 0.8 1.5 12.5 5.3 220
5.5 7/1.0 3 1 1.5 14.5 3.4 320
8 7/1.2 3.6 1.2 1.5 16.5 2.36 440
8 compacted 3.4 1.2 1.5 16 2.34 425
14 7/1.6 4.8 1.4 1.5 20 1.33 690
14 compacted 4.4 1.4 1.5 19 1.34 665
22 7/2.0 6 1.6 1.6 24 0.84 1020
22 compacted 5.5 1.6 1.6 23 0.849 975
4 1.25 71'0.45 1.35 0.8 1.5 11 16.8 145
2 7/0.6 1.8 0.8 1.5 12 9.42 195
3.5 7/0.8 2.4 0.8 1.5 13.5 5.3 275
5.5 7/1.0 3 1 1.5 16 3.4 400
8 7/1.2 3.6 1.2 1.5 18 2.36 555
8 compacted 3.4 1.2 1.5 17.5 2.34 535
14 7/1.6 4.8 1.4 1.6 22 1.33 890
14 compacted 4.4 1.4 1.5 2 1 1.34 855
22 7/2.0 6 1.6 1.7 27 0.84 1320
22 compacted 5.5 1.6 1.7 25 0.849 1260
5 1.25 7/0.45 1.35 0.8 1.5 11.5 16.8 170
2 7/0.6 1.8 0.8 1.5 13 9.42 230
3.5 71'0.8 2.4 0.8 1.5 14.5 5.3 330
5.5 7/1.0 3 1 1.5 17 3.4 485
8 7/1.2 3.6 1.2 1.5 20 2.36 675
8 compacted 3.4 1.2 1.5 19.5 2.34 655
14 7/1.6 4.8 1.4 1.6 25 1.33 1090
14 compacted 4.4 1.4 1.6 24 1.34 1060
6 1.25 7/0.45 1.35 0.8 1.5 12.5 16.8 200
2 7/0.6 1.8 0.8 1.5 14 9.42 270
3.5 7/0.8 2.4 0.8 1.5 15.5 5.3 390
5.5 7/1.0 3 1 1.5 18.5 3.4 570
8 7/1.2 3.6 1.2 1.5 22 2.36 800
8 compacted 3.4 1.2 1.5 21 2.34 775
14 7/1.6 4.8 1.4 1.7 27 1.33 1310
14 compacted 4.4 1.4 1.7 26 1.34 1270
7 1.25 7/0.45 1.35 0.8 1.5 12.5 16.8 215
2 7/0.6 1.8 0.8 1.5 14 9.42 295
3.5 7/0.8 2.4 0.8 1.5 15.5 5.3 425
5.5 7/1.0 3 1 1.5 18.5 3.4 630
8 7/1.2 3.6 1.2 1.5 22 2.36 885
8 compacted 3.4 1.2 1.5 21 2.34 860
8 1.25 7/0.45 1.35 0.8 1.5 13.5 16.8 240
2 7/0.6 1.8 0.8 1.5 15 9.42 335
3.5 7/0.8 2.4 0.8 1.5 17 5.3 485
5.5 7/1.0 3 1 1.5 20 3.4 720
8 7/1.2 3.6 1.2 1.6 24 2.36 1030
8 compacted 3.4 1.2 1.6 23 2.34 995
10 1.25 7/0.45 1.35 0.8 1.5 15.5 16.8 305
2 7/0.6 1.8 0.8 1.5 17.5 9.42 425
3.5 7/0.8 2.4 0.8 1.5 19.5 5.3 620
5.5 7/1.0 3 1 1.6 24 3.4 930
8 7/1.2 3.6 1.2 1.8 29 2.36 1340
8 compacted 3.4 1.2 1.7 28 2.34 1290
12 1.25 7/0.45 1.35 0.8 1.5 16 16.8 345
2 7/0.6 1.8 0.8 1.5 18 9.42 480
3.5 7/0.8 2.4 0.8 1.5 21 5.3 705
5.5 7/1.0 3 1 1.7 25 3.4 1080
8 7/1.2 3.6 1.2 1.8 29 2.36 1540
8 compacted 3.4 1.2 1.8 2.34 1490
15 1.25 7/0.45 1.35 0.8 1.5 17 16.8 405
2 7/0.6 1.8 0.8 1.5 19 9.42 575
3.5 7/0.8 2.4 0.8 1.5 22 5.3 855
5.5 7/1.0 3 1 1.7 27 3.4 1310
20 1.25 7/0.45 1.35 0.8 1.5 19 16.8 515
2 7/0.6 1.8 0.8 1.5 22 9.42 735
3.5 7/0.8 2.4 0.8 1.6 25 5.3 1120
5.5 7/1.0 3 1 1.9 31 3.4 1720
30 1.25 7/0.45 1.35 0.8 L.6 23 16.8 750
2 7/0.6 1.8 0.8 1.7 26 9.42 1100
3.5 7/0.8 2.4 0.8 1.8 30 5.3 1660
