JIS Industrial Cables
CCVS

Application and Description:

For used in control circuits required electrostatic shielding in underground duct, conduit and open air.

ReferenCCVS Standard:

IEC 60502-1

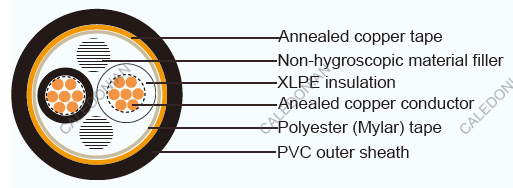

Cable Construction:

JIS Industrial Cables CCVS

Conductor: Stranded annealed copper wires, Sizes: 1.5 mm2 up to 10 mm2 Insulation: Cross-linked polyethylene(XLPE)
Color : 2-4 cores-Black, White, Red and Green ,More than 4 cores: Black core with marking numbers Filler: Non-hygroscopic material(optional)
Binding tape: Polyester (Mylar) tape (optional) Shield: Annealed copper tape, 0.1mm
Outer sheath: Polyvinyl chloride (PVC), Black color (A special flame retardant can be supplied)

Technical Characteristics:

Maximum conductor temperature 90oC
Circuit voltage not exceeding 600 volts
Test voltage 3500 volts

Cable Parameter:

NO. of Cores Conductor Thickness of insulation Thickness of outer Sheath Overall diameter Maximum conductor resistance (at 20°c) Cable weight
Nominal  cross- sectional area No.& dia. of  wires Diameter
mm2 mm mm mm mm mm Ohm/km kg/km
2 1.5 7 / 0.53 1.59 0.8 1.8 11.4 12.1 168
2.5 7 / 0.67 2.01 0.8 1.8 12.3 7.41 193
4 7 / 0.85 2.55 1.0 1.8 14.2 4.61 257
6 7 / 1.04 3.12 1.0 1.8 15.4 3.08 310
10 7 / 1.35 4.05 1.0 1.8 16.9 1.83 363
3 1.5 7 / 0.53 1.59 0.8 1.8 11.9 12.1 189
2.5 7 / 0.67 2.01 0.8 1.8 12.9 7.41 234
4 7 / 0.85 2.55 1.0 1.8 15.0 4.61 321
6 7 / 1.04 3.12 1.0 1.8 16.2 3.08 395
10 7 / 1.35 4.05 1.0 1.8 17.9 1.83 477
4 1.5 7 / 0.53 1.59 0.8 1.8 12.8 12.1 227
2.5 7 / 0.67 2.01 0.8 1.8 13.9 7.41 275
4 7 / 0.85 2.55 1.0 1.8 16.2 4.61 375
6 7 / 1.04 3.12 1.0 1.8 17.6 3.08 463
10 7 / 1.35 4.05 1.0 1.8 19.5 1.83 605
5 1.5 7 / 0.53 1.59 0.8 1.8 13.8 12.1 257
2.5 7 / 0.67 2.01 0.8 1.8 15.0 7.41 317
4 7 / 0.85 2.55 1.0 1.8 17.3 4.61 450
6 7 / 1.04 3.12 1.0 1.8 19.2 3.08 566
10 7 / 1.35 4.05 1.0 1.8 21.4 1.83 730
6 1.5 7 / 0.53 1.59 0.8 1.8 14.8 12.1 288
2.5 7 / 0.67 2.01 0.8 1.8 16.1 7.41 362
4 7 / 0.85 2.55 1.0 1.8 19.0 4.61 526
6 7 / 1.04 3.12 1.0 1.8 20.8 3.08 654
10 7 / 1.35 4.05 1.0 1.8 23.2 1.83 878
7 1.5 7 / 0.53 1.59 0.8 1.8 14.8 12.1 319
2.5 7 / 0.67 2.01 0.8 1.8 16.1 7.41 402
4 7 / 0.85 2.55 1.0 1.8 19.0 4.61 583
6 7 / 1.04 3.12 1.0 1.8 20.8 3.08 750
10 7 / 1.35 4.05 1.0 1.8 23.2 1.83 1012
8 1.5 7 / 0.53 1.59 0.8 1.8 15.8 12.1 362
2.5 7 / 0.67 2.01 0.8 1.8 17.3 7.41 458
4 7 / 0.85 2.55 1.0 1.8 20.5 4.61 658
6 7 / 1.04 3.12 1.0 1.8 21.7 3.08 839
10 7 / 1.35 4.05 1.0 1.8 24.5 1.83 1124
10 1.5 7 / 0.53 1.59 0.8 1.8 18.2 12.1 458
2.5 7 / 0.67 2.01 0.8 1.8 19.9 7.41 582
4 7 / 0.85 2.55 1.0 1.8 23.8 4.61 842
6 7 / 1.04 3.12 1.0 1.8 22.4 3.08 1069
10 7 / 1.35 4.05 1.0 1.8 29.6 1.83 1442
12 1.5 7 / 0.53 1.59 0.8 1.8 18.7 12.1 512
2.5 7 / 0.67 2.01 0.8 1.8 20.5 7.41 647
4 7 / 0.85 2.55 1.0 1.8 24.6 4.61 958
6 7 / 1.04 3.12 1.0 1.8 27.0 3.08 1236
10 7 / 1.35 4.05 1.0 1.8 30.5 1.83 1689
15 1.5 7 / 0.53 1.59 0.8 1.8 20.0 12.1 597
2.5 7 / 0.67 2.01 0.8 1.8 22.1 7.41 777
4 7 / 0.85 2.55 1.0 1.8 26.4 4.61 1126
6 7 / 1.04 3.12 1.0 1.8 29.1 3.08 1462
20 1.5 7 / 0.53 1.59 0.8 1.8 22.1 12.1 706
2.5 7 / 0.67 2.01 0.8 1.8 24.5 7.41 931
4 7 / 0.85 2.55 1.0 1.8 29.5 4.61 1427
6 7 / 1.04 3.12 1.0 1.8 32.5 3.08 1886
 30 1.5 7 / 0.53 1.59 0.8 1.8 26.3 12.1 1002
2.5 7 / 0.67 2.01 0.8 1.8 28.2 7.41 1302
4 7 / 0.85 2.55 1.0 1.9 35.6 4.61 2024
