JIS Industrial Cables
CCV

Application and Description:

For supervisory electrical equipment, station control circuits, outdoor, suitable installation in dry or wet cable trenches.

ReferenCCV Standard:

IEC 60502-1

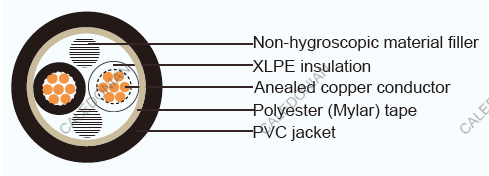

Cable Construction:

JIS Industrial Cables CCV

Conductor: Stranded annealed copper wires, Sizes: 1.5 mm2 up to 10 mm2 Insulation: Cross-linked polyethylene(XLPE)
Color : 2-4 cores-Black, White, Red and Green ,More than 4 cores: Black core with marking numbers Filler: Non-hygroscopic material(optional)
Binding tape: Polyester (Mylar) tape (optional)

Sheath: Polyvinyl chloride (PVC), Black color (A special flame retardant sheath can be supplied)

Technical Characteristics:

Maximum conductor temperature 90oC
Circuit voltage not exceeding 600 volts
Test voltage 3500 volts

Cable Parameter:

NO. of Cores Conductor Thickness of insulation Thickness of Sheath Overall diameter Maximum conductor resistance (at 20°c) Cable weight
Nominal cross- sectional area No.& dia. of wires Diameter
mm2 mm mm mm mm mm Ohm/km kg/km
2 1.5 7/0.53 1.59 0.7 1.8 10.5 12.1 130
2.5 7/0.67 2.01 0.7 1.8 11.5 7.41 160
4 7/0.85 2.55 0.7 1.8 12.5 4.61 200
6 7/1.04 3.12 0.7 1.8 13.5 3.08 260
10 7/1.35 4.05 0.7 1.8 15.5 1.83 350
3 1.5 7/0.53 1.59 0.7 1.8 11.0 12.1 160
2.5 7/0.67 2.01 0.7 1.8 12.0 7.41 200
4 7/0.85 2.55 0.7 1.8 13.0 4.61 260
6 7/1.04 3.12 0.7 1.8 14.5 3.08 330
10 7/1.35 4.05 0.7 1.8 16.5 1.83 470
4 1.5 7/0.53 1.59 0.7 1.8 12.0 12.1 190
2.5 7/0.67 2.01 0.7 1.8 13.0 7.41 250
4 7/0.85 2.55 0.7 1.8 14.5 4.61 320
6 7/1.04 3.12 0.7 1.8 15.5 3.08 420
10 7/1.35 4.05 0.7 1.8 18.0 1.83 600
5 1.5 7/0.53 1.59 0.7 1.8 13.0 12.1 230
2.5 7/0.67 2.01 0.7 1.8 14.0 7.41 290
4 7/0.85 2.55 0.7 1.8 15.5 4.61 380
6 7/1.04 3.12 0.7 1.8 17.0 3.08 500
10 7/1.35 4.05 0.7 1.8 19.5 1.83 730
6 1.5 7/0.53 1.59 0.7 1.8 13.5 12.1 260
2.5 7/0.67 2.01 0.7 1.8 15.0 7.41 340
4 7/0.85 2.55 0.7 1.8 16.5 4.61 450
6 7/1.04 3.12 0.7 1.8 18.5 3.08 590
10 7/1.35 4.05 0.7 1.8 21.0 1.83 850
7 1.5 7/0.53 1.59 0.7 1.8 13.5 12.1 270
2.5 7/0.67 2.01 0.7 1.8 15.0 7.41 360
4 7/0.85 2.55 0.7 1.8 16.5 4.61 480
6 7/1.04 3.12 0.7 1.8 18.5 3.08 640
10 7/1.35 4.05 0.7 1.8 21.0 1.83 940
8 1.5 7/0.53 1.59 0.7 1.8 15.0 12.1 320
2.5 7/0.67 2.01 0.7 1.8 16.5 7.41 410
4 7/0.85 2.55 0.7 1.8 18.5 4.61 550
6 7/1.04 3.12 0.7 1.8 20.5 3.08 740
10 7/1.35 4.05 0.7 1.8 23.5 1.83 1,090
10 1.5 7/0.53 1.59 0.7 1.8 17.0 12.1 380
2.5 7/0.67 2.01 0.7 1.8 18.5 7.41 500
4 7/0.85 2.55 0.7 1.8 20.5 4.61 670
6 7/1.04 3.12 0.7 1.8 23.0 3.08 900
10 7/1.35 4.05 0.7 1.8 26.5 1.83 1,330
12 1.5 7/0.53 1.59 0.7 1.8 17.5 12.1 430
2.5 7/0.67 2.01 0.7 1.8 19.0 7.41 570
4 7/0.85 2.55 0.7 1.8 21.5 4.61 780
6 7/1.04 3.12 0.7 1.8 23.5 3.08 1,050
10 7/1.35 4.05 0.7 1.8 27.5 1.83 1,560
15 1.5 7/0.53 1.59 0.7 1.8 19.0 12.1 510
2.5 7/0.67 2.01 0.7 1.8 21.0 7.41 690
4 7/0.85 2.55 0.7 1.8 23.5 4.61 950
6 7/1.04 3.12 0.7 1.8 26.0 3.08 1,280
20 1.5 7/0.53 1.59 0.7 1.8 21.0 12.1 650
2.5 7/0.67 2.01 0.7 1.8 23.0 7.41 880
4 7/0.85 2.55 0.7 1.8 26.0 4.61 1,220
6 7/1.04 3.12 0.7 1.8 29.0 3.08 1,660
30 1.5 7/0.53 1.59 0.7 1.8 24.0 12.1 920
2.5 7/0.67 2.01 0.7 1.8(1.9) 27.0 7.41 1,250
4 7/0.85 2.55 0.7 1.8(1.9) 30.5 4.61 1,750
