JIS Industrial Cables
CCE

Application and Description:

For supervisory electrical equipment, station control circuits, outdoor, suitable installation in dry or wet cable trenches.

ReferenCCE Standard:

IEC 60502-1

Cable Construction:

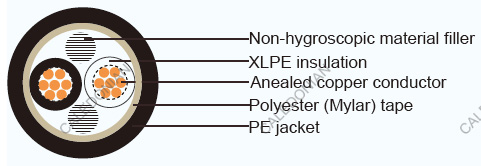

JIS Industrial Cables CCE

Conductor: Stranded annealed copper wires, Sizes: 1.5 mm2 up to 10 mm2 Insulation: Cross-linked polyethylene(XLPE)
Color : 2-4 cores-Black, White, Red and Green ,More than 4 cores: Black core with marking numbers Filler: Non-hygroscopic material(optional)
Binding tape: Polyester (Mylar) tape (optional)

Sheath: Polyethylene(PE), Black color (A special flame retardant sheath can be supplied)

Technical Characteristics:

Maximum conductor temperature 90oC
Circuit voltage not exceeding 600 volts
Test voltage 3500 volts

Cable Parameter:

NO. of Cores Conductor Thickness of insulation Thickness of Sheath Overall diameter Maximum conductor resistance (at 20°c) Cable weight
Nominal  cross- sectional area No.& dia. of  wires Diameter
mm2 mm mm mm mm mm Ohm/km kg/km
2 1.5 7/0.53 1.59 0.7 1.8 10.5 12.1 110
2.5 7/0.67 2.01 0.7 1.8 11.5 7.41 130
4 7/0.85 2.55 0.7 1.8 12.5 4.61 170
6 7/1.04 3.12 0.7 1.8 13.5 3.08 230
10 7/1.35 4.05 0.7 1.8 15.5 1.83 320
3 1.5 7/0.53 1.59 0.7 1.8 11.0 12.1 130
2.5 7/0.67 2.01 0.7 1.8 12.0 7.41 170
4 7/0.85 2.55 0.7 1.8 13.0 4.61 230
6 7/1.04 3.12 0.7 1.8 14.5 3.08 300
10 7/1.35 4.05 0.7 1.8 16.5 1.83 440
4 1.5 7/0.53 1.59 0.7 1.8 12.0 12.1 160
2.5 7/0.67 2.01 0.7 1.8 13.0 7.41 220
4 7/0.85 2.55 0.7 1.8 14.5 4.61 290
6 7/1.04 3.12 0.7 1.8 15.5 3.08 390
10 7/1.35 4.05 0.7 1.8 18.0 1.83 570
5 1.5 7/0.53 1.59 0.7 1.8 13.0 12.1 200
2.5 7/0.67 2.01 0.7 1.8 14.0 7.41 260
4 7/0.85 2.55 0.7 1.8 15.5 4.61 350
6 7/1.04 3.12 0.7 1.8 17.0 3.08 470
10 7/1.35 4.05 0.7 1.8 19.5 1.83 700
6 1.5 7/0.53 1.59 0.7 1.8 13.5 12.1 230
2.5 7/0.67 2.01 0.7 1.8 15.0 7.41 310
4 7/0.85 2.55 0.7 1.8 16.5 4.61 420
6 7/1.04 3.12 0.7 1.8 18.5 3.08 560
10 7/1.35 4.05 0.7 1.8 21.0 1.83 820
7 1.5 7/0.53 1.59 0.7 1.8 13.5 12.1 240
2.5 7/0.67 2.01 0.7 1.8 15.0 7.41 330
4 7/0.85 2.55 0.7 1.8 16.5 4.61 450
6 7/1.04 3.12 0.7 1.8 18.5 3.08 610
10 7/1.35 4.05 0.7 1.8 21.0 1.83 910
8 1.5 7/0.53 1.59 0.7 1.8 15.0 12.1 290
2.5 7/0.67 2.01 0.7 1.8 16.5 7.41 380
4 7/0.85 2.55 0.7 1.8 18.5 4.61 520
6 7/1.04 3.12 0.7 1.8 20.5 3.08 710
10 7/1.35 4.05 0.7 1.8 23.5 1.83 1060
10 1.5 7/0.53 1.59 0.7 1.8 17.0 12.1 350
2.5 7/0.67 2.01 0.7 1.8 18.5 7.41 470
4 7/0.85 2.55 0.7 1.8 20.5 4.61 640
6 7/1.04 3.12 0.7 1.8 23.0 3.08 870
10 7/1.35 4.05 0.7 1.8 26.5 1.83 1300
12 1.5 7/0.53 1.59 0.7 1.8 17.5 12.1 400
2.5 7/0.67 2.01 0.7 1.8 19.0 7.41 540
4 7/0.85 2.55 0.7 1.8 21.5 4.61 750
6 7/1.04 3.12 0.7 1.8 23.5 3.08 1020
10 7/1.35 4.05 0.7 1.8 27.5 1.83 1530
15 1.5 7/0.53 1.59 0.7 1.8 19.0 12.1 480
2.5 7/0.67 2.01 0.7 1.8 21.0 7.41 660
4 7/0.85 2.55 0.7 1.8 23.5 4.61 920
6 7/1.04 3.12 0.7 1.8 26.0 3.08 1250
20 1.5 7/0.53 1.59 0.7 1.8 21.0 12.1 620
2.5 7/0.67 2.01 0.7 1.8 23.0 7.41 850
4 7/0.85 2.55 0.7 1.8 26.0 4.61 1190
6 7/1.04 3.12 0.7 1.8 29.0 3.08 1630
30 1.5 7/0.53 1.59 0.7 1.8 24.0 12.1 890
2.5 7/0.67 2.01 0.7 1.8(1.9) 27.0 7.41 1220
4 7/0.85 2.55 0.7 1.8(1.9) 30.5 4.61 1720
