JIS C 3401 Cables
CCE

Application and Description:

For supervisory electrical equipment, station control circuits, outdoor, suitable installation in dry or wet cable trenches.

Name Code:

C: For control
C: Cross polythylene
E: Polythylene

Cable Construction:

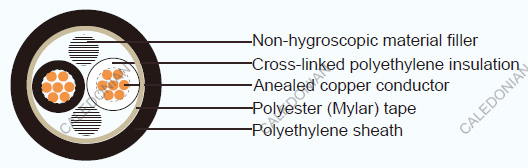

JIS C 3401 Industrial Cables CCE

Conductor: Circular or compacted circuar stranded annealed copper wires
Seperator: A proper separator may be applied to a conductor
Insulation: Cross-linked polyethylene
Color :
2 cores- Black and white
3 cores- Black, white and red
4 cores- Black, white, red and green
More than 4 cores: White core with marking numbers
Filler: Non-hygroscopic material(optional)
Binding tape: Polyester (Mylar) tape (optional)
Sheath: Polyethylene (PE), Black color

Technical Characteristics:

Maximum conductor temperature 90oC
Circuit voltage not exceeding 600 volts
Test voltage 2000 volts

Cable Parameter:

No. of cores Nominal sectional area No. of wire Diameter of Conductor (approx.) Thickness of insulation Thickness of sheath Overall diameter (approx.) Maximum DC. resistance of Cdr. at 20°C Cable weight (approx.)
mm² mm mm mm mm Ohm / km kg / km
2 1.25 7/0.45 1.35 0.8 1.5 9.4 16.8 80
2 7/0.6 1.8 0.8 1.5 10.5 9.42 105
3.5 7/0.8 2.4 0.8 1.5 11.5 5.3 145
5.5 7/1.0 3 1 1.5 13.5 3.4 205
8 7/1.2 3.6 1 1.5 15 2.36 270
8 compacted 3.4 1 1.5 14.5 2.34 260
14 7/1.6 4.8 1 1.5 17.5 1.33 415
14 compacted 4.4 1 1.5 16.5 1.34 405
22 7/2.0 6 1.2 1.5 2] 0.84 620
22 compacted 5.5   1.5 19.5 0.849 595

3



1.25 7/0.45 1.35 0.8 1.5 9.9 16.8 95
2 7/0.6 1.8 0.8 1.5 11 9.42 130
3.5 7/0.8 2.4 0.8 1.5 12.5 5.3 185
5.5 7/1.0 3 1 1.5 t4.5 3.4 270
8 7/1.2 3.6 1 1.5 16 2.36 355
8 compacted 3.4 1 1.5 15.5 2.34 345
14 7/1.6 4.8 1 1.5 18.5 1.33 560
14 compacted 4.4 1 1.5 17.5 1.34 550
22 7/2.0 6 1.2 1.5 22 0.84 845
22 compacted 5.5 1.2 1.5 21 0.849 815
4 1.25 7/0.45 1.35 0.8 1.5 11 16.8 115
2 7/0.6 1.8 0.8 1.5 12 9.42 160
3.5 7/0.8 2.4 0.8 1.5 13.5 5.3 230
5.5 7/1.0 3 1 1.5 16 3.4 340
8 41832 3.6 1 1.5 17 2.36 455
8 compacted 3.4 1 1.5 16.5 2.34 445
14 7/1.6 4.8 1 1.5 20 1.33 720
14 compacted 4.4 1 1.5 19 1.34 705
22 7/2.0 6 1.2 1.6 24 0.84 1100
22 compacted 5.5 1.2 1.6 23 0.849 1070
5 1.25 7/0.45 1.35 0.8 1.5 11.5 16.8 135
2 7/0.6 1.8 0.8 1.5 13 9.42 190
3.5 7/0.8 2.4 0.8 1.5 14.5 5.3 280
5.5 7/1.0 3 1 1.5 17 3.4 415
8 7/ 1.2 3.6 1 1.5 19 2.36 555
  compacted 3.4 1 1.5 18.5 2.34 545
14 7/1.6 4.8 1 1.6 23 1.33 895
  compacted 4.4 1 1.5 21 1.34 870
6 1.25 7/0.45 1.35 0.8 1.5 12.5 16.8 160
2 7/0.6 1.8 0.8 1.5 14 9.42 225
3.5 7/0.8 2.4 0.8 1.5 15.5 5.3 330
5.5 7/1.0 3 1 1.5 18.5 3.4 495
8 7/1.2 3.6 1 1.5 21 2.36 665
8 compacted 3.4 1 1.5 20 2.34 650
14 711.6 4.8 1 1.6 25 1.33 1070
14 compacted 4.4 1 1.6 23 1.34 1050
7 1.25 7/0.45 1.35 0.8 1.5 12.5 16.8 170
2 7/0.6 1.8 0.8 1.5 14 9.42 240
3.5 7/0.8 2.4 0.8 1.5 15.5 5.3 365
5.5 7/ 1.0 3 1 1.5 18.5 3.4 545
8 7/1.2 3.6 1 1.5 21 2.36 735
8 compacted 3.4 1 1.5 20 2.34 720
8 1.25 7/0.45 1.35 0.8 1.5 13.5 16.8 190
2 7/0.6 1.8 0.8 1.5 15 9.42 275
3.5 7/0.8 2.4 0.8 1.5 17 5.3 420
5.5 7/1.0 3 1 1.5 20 3.4 625
8 7/ 1.2 3.6 1 1.6 23 2.36 855
8 compacted 3.4 1 1.5 22 2.34 830
10 1.25 7/0.45 1.35 0.8 1.5 15.5 16.8 245
2 7/0.6 1.8 0.8 1.5 17.5 9.42 355
3.5 7/0.8 2.4 0.8 1.5 19.5 5.3 535
5.5 7/1.0 3 1 1.6 24 3.4 810
8 7/ 1.2 3.6 1 1.7 27 2.36 1100
8 compacted 3.4 1 1.7 26 2.34 1080
12 1.25 7/0.45 1.35 0.8 1.5 16 16.8 275
2 7/0.6 1.8 0.8 1.5 18 9.42 400
3.5 7/0.8 2.4 0.8 1.5 21 5.3 615
5.5 7/1.0 3 1 1.7 25 3.4 940
8 7/ 1.2 3.6 1 1.8 28 2.36 1280
8 compacted 3.4 1 1.7 27 2.34 1250
15 1.25 7/ 0.45 1.35 0.8 1.5 17 16.8 330
2 7/0.6 1.8 0.8 1.5 19..0 9.42 485
3.5 7/0.8 2.4 0.8 1.5 22 5.3 745
5.5 7/1.0 3 l.0 1.7 27 3.4 1140
20 1.25 7/0.45 1.35 0.8 1.5 19 16.8 420
2 7/0.6 1.8 0.8 1.5 22 9.42 625
3.5 7/0.8 2.4 0.8 1.6 25 5.3 975
5.5 7/ 1.0 3 1 1.9 3J 3.4 1510
30 1.25 7/0.45 1.35 0.8 1.6 23 .16.8 615
2 7/0.6 1.8 0.8 1.7 26 9.42 930
3.5 7/0.8 2.4 0.8 1.8 30 5.3 1460
