Italian Standard Industrial Cables
H01N2-D/E (NSKFFÖU)

Application and Description

These cables are used as a connection between the welding generator, the hand-electrode and the work piece. For use in the automobile industry, ship building, transport and conveyor systems, tool making machinery, welding robots etc.

These cables retain their high flexibility even under influence of ozone, light, oxygen, protective gases, oil and petrol. Robust cable structure of these cables makes them resistant to low and high temperature, fire, ozone and radiation, oils, acids, fats and petrols.

These cables are also ideal for outside installation in dry, moist and wet areas.

Standard and Approval

  • <HAR> HD22.6 S2
  • VDE-0282 Part-6
  • IEC 60332.3
  • IEC 60754.1
  • UNEL 35368
  • CEI 20-22 II
  • CEI 20-38
  • CE low voltage directive 73/23/EEC & 93/68/EEC

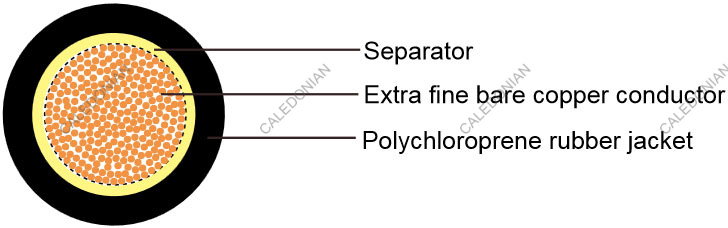

Cable Construction

H01N2-D/E Industrial Cables H01N2-D/E
Extra fine bare copper strands
Strands to DIN VDE 0295, BS 6360, IEC 60228 and HD 383
Strands to VDE-0295 as listed below
Synthetic or paper separator over core
Polychloroprene rubber (neoprene) jacket EM5

Technical Characteristics

Working voltage 100/100 volts
Test voltage 1000 volts
Flexing bending radius 12.0 x Ø
Fixed bending radius 7.5 x Ø
Flexing Temperature -25 ºC to +80 ºC
Fixed Temperature -40 ºC to +80 ºC
Flame retardant IEC 60332.1

Cable Parameter

Cables with Standard and Approval flexibility

AWG No. of Cores x Nominal Cross Sectional Area Nominal Thickness of Insulation Nominal Overall Diameter Nominal Copper Weight Nominal Weight
# x mm² mm mm kg/km kg/km
8(320/32) 1 x 10 2.0 7.7-9.7 96 135
6(512/32) 1 x 16 2.0 8.8-11.0 154 205
4(800/32) 1 x 25 2.0 10.1-12.7 240 302
2(1120/32) 1 x 35 2.0 11.4-14.2 336 420
1(1600/32) 1 x 50 2.2 13.2-16.5 480 586
2/0(2240/32) 1 x 70 2.4 15.3-19.2 672 798
3/0(3024/32) 1 x 95 2.6 17.1-21.4 912 1015
4/0(614/24) 1 x 120 2.8 19.2-24.0 1152 1310
300MCM(765/24) 1 x 150 3.0 21.2-26.4 1440 1620
350MCM(944/24) 1 x 185 3.2 23.1-28.9 1776 1916
500MCM(1225/24) 1 x 240 3.4 25.0-29.5 2304 2540

Cables with extreme high flexibility

AWG No. of Cores x Nominal Cross Sectional Area Nominal Thickness of Insulation Nominal Overall Diameter Nominal Copper Weight Nominal Weight
# x mm² mm mm kg/km kg/km
8(566/35) 1 x 10 1.2 6.2-7.8 96 119
6(903/35) 1 x 16 1.2 7.3-9.1 154 181
4(1407/35) 1 x 25 1.2 8.6-10.8 240 270
2(1974/35) 1 x 35 1.2 9.8-12.3 336 363
1(2830/35) 1 x 50 1.5 11.9-14.8 480 528
2/0(3952/35) 1 x 70 1.8 13.6-17.0 672 716
3/0(5370/35) 1 x 95 1.8 15.6-19.5 912 1012
4/0(3819/32) 1 x 120 1.8 17.2-21.6 1152 1190
300MCM(4788/32) 1 x 150 1.8 18.8-23.5 1440 1305
500MCM(5852/32) 1 x 185 1.8 20.4-25.5 1776 1511
