Italian Standard Industrial Cables
FR2XOHR
Application
These cables are suitable cables for connection and data transmission of instrumentation in refining, petrochemical and chemical industry. Typically used for security systems (CEI 64-2) and intrinsically safe equipment.
Standard and Approval
- CEI 20-22 II
- CEI 20-29
- CEI 20-21
- CEI 20-37
- CEI 20-52

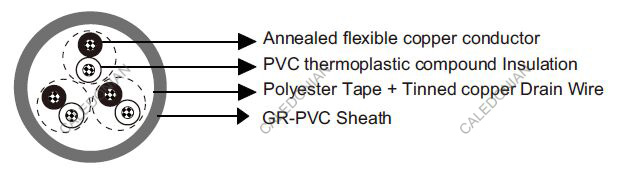

Cable Construction
- Annealed fl exible copper cl.5 conductor
- PVC thermoplastic compound type R2 insulation
- Polyester tape wrapping
- Tinned copper cl.2 drain wires
- PVC thermoplastic compound type Rz
- GR-PVC sheath in RZ quality
Technical Characteristics:
- Working voltage:300/500 V
- Minimum bending radius: 10 x ?
- Flexing temperature: -20o C to +70o C
- Minimum Installation temperature: -10o C
- Maximum short circuit temperature: +160° C
- Flame retardant: IEC 60332-3-22 , EN 50265-2-1 ,CEI 20-35/1-1
CONSTRUCTION PARAMETERS
| AWG | No. of Cores x Nominal Cross Sectional Area # x mm2 | Nominal Thickness of Insulation mm | Nominal Thickness of Sheath mm | Nominal Overall Diameter mm | Nominal Weight kg/km |
|---|---|---|---|---|---|
| 20(16/32) | 1 x 2 x 0.5 | 0.6 | 0.8 | 5.9 | 50 |
| 20(16/32) | 2 x 2 x 0.5 | 0.6 | 0.8 | 8.1 | 90 |
| 20(16/32) | 4 x 2 x 0.5 | 0.6 | 0.8 | 9.2 | 120 |
| 20(16/32) | 6 x 2 x 0.5 | 0.6 | 0.8 | 11.5 | 180 |
| 20(16/32) | 8 x 2 x 0.5 | 0.6 | 0.8 | 12.1 | 210 |
| 20(16/32) | 10 x 2 x 0,5 | 0.6 | 0.8 | 13.2 | 240 |
| 20(16/32) | 12 x 2 x 0.5 | 0.6 | 0.8 | 14.5 | 290 |
| 20(16/32) | 16 x 2 x 0.5 | 0.6 | 0.8 | 16.2 | 370 |
| 20(16/32) | 20 x 2 x 0.5 | 0.6 | 0.8 | 18.2 | 450 |
| 20(16/32) | 24 x 2 x 0.5 | 0.6 | 0.8 | 19.7 | 540 |
| 17(32/32) | 1 x 2 x 1 | 0.6 | 0.9 | 6.7 | 60 |
| 17(32/32) | 2 x 2 x 1 | 0.6 | 0.9 | 10.0 | 150 |
| 17(32/32) | 4 x 2 x 1 | 0.6 | 0.9 | 11.3 | 180 |
| 17(32/32) | 6 x 2 x 1 | 0.6 | 0.9 | 14.3 | 280 |
| 17(32/32) | 8 x 2 x 1 | 0.6 | 0.9 | 15.1 | 350 |
| 17(32/32) | 10 x 2 x 1 | 0.6 | 0.9 | 16.7 | 410 |
| 17(32/32) | 12 x 2 x 1 | 0.6 | 0.9 | 18.1 | 470 |
| 17(32/32) | 16 x 2 x 1 | 0.6 | 0.9 | 20.6 | 630 |
| 17(32/32) | 20 x 2 x 1 | 0.6 | 0.9 | 22.9 | 760 |
| 17(32/32) | 24 x 2 x 1 | 0.6 | 0.9 | 24.9 | 900 |
| 16(30/30) | 1 x 2 x 1.5 | 0.7 | 1.0 | 7.5 | 80 |
| 16(30/30) | 2 x 2 x 1.5 | 0.7 | 1.0 | 11.6 | 190 |
| 16(30/30) | 4 x 2 x 1.5 | 0.7 | 1.0 | 12.9 | 250 |
| 16(30/30) | 6 x 2 x 1.5 | 0.7 | 1.0 | 16.4 | 380 |
| 16(30/30) | 8 x 2 x 1.5 | 0.7 | 1.0 | 17.5 | 480 |
| 16(30/30)) | 10 x 2 x 1.5 | 0.7 | 1.0 | 19.5 | 580 |
| 16(30/30) | 12 x 2 x 1.5 | 0.7 | 1.0 | 21.0 | 670 |
| 16(30/30) | 16 x 2 x 1.5 | 0.7 | 1.0 | 23.9 | 880 |
| 16(30/30) | 20 x 2 x 1.5 | 0.7 | 1.0 | 26.7 | 1070 |
