  HomeProuductsIndustrial Cables



FCVV



Application and Description
For supervisory electrical equipment, station control circuits, outdoor, suitable installation in dry or wet cable trenches.

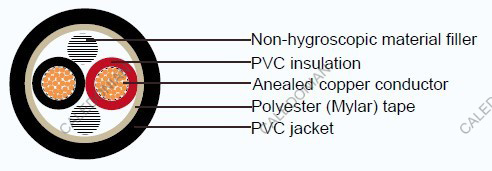

Cable Construction

Conductor: Flexible stranded annealed copper wires, Sizes: 0.5 mm2 up to 6 mm2
Insulation: Polyvinyl chloride (PVC)
Color : 2-4 cores-Black, White, Red and Green ,More than 4 cores: Black core with marking numbers
Filler: Non-hygroscopic material(optional)
Binding tape: Polyester (Mylar) tape (optional)
Sheath: Polyvinyl chloride (PVC), Black color (A Special FR-PVC flame retardant sheath can be supplied)

Industrial Cables FCVV



Technical Characteristics

Maximum conductor temperature 70oC
Circuit voltage not exceeding 600 volts
Test voltage 2000volts(JIS) / 3500 volts(IEC)



Cable Parameter

Cables to JIS C 3401

No. of cores

Conductor

Thickness of insulation

Thickness of Sheath

Overall diameter

 Maximum conductor resistance (at 20°c)

Minimum insulation resistance (at 70°c)

Cable weight
Nominal cross-sectional area No.& dia.of wire Diameter

mm²

 mm

mm

mm

 mm

mm

Ohm / km

MOhm/km

kg / km

2

 1 36/0.19 1.35 0.72 1.35 11 19.5 0.05 87
1.5 36/0.23 1.65 0.72 1.35 11 13.3 0.05 100
2.5 60/0.23 2.15 0.72 1.35 12 7.98 0.05 128
4 56/0.29 2.65 0.72 1.35 13 4.95 0.05 163
6 84/0.29 3.4 0.9 1.35 15 3.3 0.05 227
3 1 36/0.19 1.35 0.72 1.35 11 19.5 0.05 104
1.5 36/0.23 1.65 0.72 1.35 12 13.3 0.05 121
2.5 60/0.23 2.15 0.72 1.35 13 7.98 0.05 159
4 56/0.29 2.65 0.72 1.35 14 4.95 0.05 209
6 84/0.29 3.4 0.9 1.35 16 3.3 0.05 296
4 1 36/0.19 1.35 0.72 1.35 12 19.5 0.05 124
1.5 36/0.23 1.65 0.72 1.35 13 13.3 0.05 147
2.5 60/0.23 2.15 0.72 1.35 14 7.98 0.05 196
4 56/0.29 2.65 0.72 1.35 15 4.95 0.05 260
6 84/0.29 3.4 0.9 1.35 17 3.3 0.05 372
5 1 36/0.19 1.35 0.72 1.35 13 19.5 0.05 146
1.5 36/0.23 1.65 0.72 1.35 14 13.3 0.05 175
2.5 60/0.23 2.15 0.72 1.35 15 7.98 0.05 234
4 56/0.29 2.65 0.72 1.35 16 4.95 0.05 314
6 84/0.29 3.4 0.9 1.35 19 3.3 0.05 452
6 1 36/0.19 1.35 0.72 1.35 14 19.5 0.05 168
1.5 36/0.23 1.65 0.72 1.35 14 13.3 0.05 203
2.5 60/0.23 2.15 0.72 1.35 16 7.98 0.05 273
4 56/0.29 2.65 0.72 1.35 17 4.95 0.05 369
6 84/0.29 3.4 0.9 1.35 20 3.3 0.05 534
7 1 36/0.19 1.35 0.72 1.35 14 19.5 0.05 182
1.5 36/0.23 1.65 0.72 1.35 14 13.3 0.05 220
2.5 60/0.23 2.15 0.72 1.35 16 7.98 0.05 299
4 56/0.29 2.65 0.72 1.35 17 4.95 0.05 406
6 84/0.29 3.4 0.9 1.35 20 3.3 0.05 592
8 1 36/0.19 1.35 0.72 1.35 14 19.5 0.05 205
1.5 36/0.23 1.65 0.72 1.35 15 13.3 0.05 248
2.5 60/0.23 2.15 0.72 1.35 17 7.98 0.05 340
4 56/0.29 2.65 0.72 1.35 18 4.95 0.05 464
6 84/0.29 3.4 0.9 1.35 21 3.3 0.05 677
9 1 36/0.19 1.35 0.72 1.35 15 19.5 0.05 228
1.5 36/0.23 1.65 0.72 1.35 16 13.3 0.05 278
2.5 60/0.23 2.15 0.72 1.35 18 7.98 0.05 381
4 56/0.29 2.65 0.72 1.35 20 4.95 0.05 521
6 84/0.29 3.4 0.9 1.35 23 3.3 0.05 763
10 1 36/0.19 1.35 0.72 1.35 16 19.5 0.05 257
1.5 36/0.23 1.65 0.72 1.35 18 13.3 0.05 312
2.5 60/0.23 2.15 0.72 1.35 19 7.98 0.05 429
4 56/0.29 2.65 0.72 1.35 21 4.95 0.05 585
6 84/0.29 3.4 0.9 1.44 25 3.3 0.05 868
11 1 36/0.19 1.35 0.72 1.35 16 19.5 0.05 269
1.5 36/0.23 1.65 0.72 1.35 18 13.3 0.05 329
2.5 60/0.23 2.15 0.72 1.35 19 7.98 0.05 454
4 56/0.29 2.65 0.72 1.35 21 4.95 0.05 624
6 84/0.29 3.4 0.9 1.44 25 3.3 0.05 926
12 1 36/0.19 1.35 0.72 1.35 17 19.5 0.05 288
1.5 36/0.23 1.65 0.72 1.35 18 13.3 0.05 353
2.5 60/0.23 2.15 0.72 1.35 20 7.98 0.05 489
4 56/0.29 2.65 0.72 1.35 22 4.95 0.05 673
6 84/0.29 3.4 0.9 1.53 26 3.3 0.05 1010
13 1 36/0.19 1.35 0.72 1.35 18 19.5 0.05 311
1.5 36/0.23 1.65 0.72 1.35 19 13.3 0.05 382
2.5 60/0.23 2.15 0.72 1.35 21 7.98 0.05 529
4 56/0.29 2.65 0.72 1.35 23 4.95 0.05 730
6 84/0.29 3.4 0.9 1.53 29 3.3 0.05 1096
14 1 36/0.19 1.35 0.72 1.35 18 19.5 0.05 324
1.5 36/0.23 1.65 0.72 1.35 19 13.3 0.05 399
2.5 60/0.23 2.15 0.72 1.35 21 7.98 0.05 555
4 56/0.29 2.65 0.72 1.35 23 4.95 0.05 767
6 84/0.29 3.4 0.9 1.53 28 3.3 0.05 1155
15 1 36/0.19 1.35 0.72 1.35 18 19.5 0.05 349
1.5 36/0.23 1.65 0.72 1.35 20 13.3 0.05 429
2.5 60/0.23 2.15 0.72 1.35 22 7.98 0.05 598
4 56/0.29 2.65 0.72 1.35 24 4.95 0.05 828
6 84/0.29 3.4 0.9 1.53 29 3.3 0.05 1246
16 1 36/0.19 1.35 0.72 1.35 18 19.5 0.05 362
1.5 36/0.23 1.65 0.72 1.35 20 13.3 0.05 446
2.5 60/0.23 2.15 0.72 1.35 22 7.98 0.05 623
4 56/0.29 2.65 0.72 1.44 24 4.95 0.05 875
6 84/0.29 3.4 0.9 1.62 29 3.3 0.05 1314
17 1 36/0.19 1.35 0.72 1.35 19 19.5 0.05 365
1.5 36/0.23 1.65 0.72 1.35 21 13.3 0.05 451
2.5 60/0.23 2.15 0.72 1.35 23 7.98 0.05 633
4 56/0.29 2.65 0.72 1.44 25 4.95 0.05 891
6 84/0.29 3.4 0.9 1.62 31 3.3 0.05 1339
18 1 36/0.19 1.35 0.72 1.35 19 19.5 0.05 381
1.5 36/0.23 1.65 0.72 1.35 21 13.3 0.05 471
2.5 60/0.23 2.15 0.72 1.35 23 7.98 0.05 662
4 56/0.29 2.65 0.72 1.44 25 4.95 0.05 935
6 84/0.29 3.4 0.9 1.62 31 3.3 0.05 1406
19 1 36/0.19 1.35 0.72 1.35 19 19.5 0.05 396
1.5 36/0.23 1.65 0.72 1.35 21 13.3 0.05 491
2.5 60/0.23 2.15 0.72 1.35 23 7.98 0.05 692
4 56/0.29 2.65 0.72 1.44 25 4.95 0.05 979
6 84/0.29 3.4 0.9 1.62 31 3.3 0.05 1473
20 1 36/0.19 1.35 0.72 1.35 20 19.5 0.05 417
1.5 36/0.23 1.65 0.72 1.35 21 13.3 0.05 517
2.5 60/0.23 2.15 0.72 1.35 24 7.98 0.05 729
4 56/0.29 2.65 0.72 1.44 26 4.95 0.05 1030
6 84/0.29 3.4 0.9 1.62 33 3.3 0.05 1563
21 1 36/0.19 1.35 0.72 1.35 20 19.5 0.05 433
1.5 36/0.23 1.65 0.72 1.35 21 13.3 0.05 537
2.5 60/0.23 2.15 0.72 1.35 24 7.98 0.05 759
4 56/0.29 2.65 0.72 1.44 26 4.95 0.05 1074
6 84/0.29 3.4 0.9 1.62 33 3.3 0.05 1630
22 1 36/0.19 1.35 0.72 1.35 21 19.5 0.05 454
1.5 36/0.23 1.65 0.72 1.35 22 13.3 0.05 563
2.5 60/0.23 2.15 0.72 1.35 25 7.98 0.05 795
4 56/0.29 2.65 0.72 1.44 28 4.95 0.05 1126
6 84/0.29 3.4 0.9 1.62 34 3.3 0.05 1709
23 1 36/0.19 1.35 0.72 1.35 21 19.5 0.05 469
1.5 36/0.23 1.65 0.72 1.35 22 13.3 0.05 583
2.5 60/0.23 2.15 0.72 1.35 25 7.98 0.05 825
4 56/0.29 2.65 0.72 1.44 28 4.95 0.05 1169
6 84/0.29 3.4 0.9 1.62 34 3.3 0.05 1776
24 1 36/0.19 1.35 0.72 1.35 22 19.5 0.05 492
1.5 36/0.23 1.65 0.72 1.35 24 13.3 0.05 610
2.5 60/0.23 2.15 0.72 1.44 27 7.98 0.05 873
4 56/0.29 2.65 0.72 1.62 30 4.95 0.05 1245
6 84/0.29 3.4 0.9 1.62 36 3.3 0.05 1857
25 1 36/0.19 1.35 0.72 1.35 22 19.5 0.05 507
1.5 36/0.23 1.65 0.72 1.35 24 13.3 0.05 630
2.5 60/0.23 2.15 0.72 1.44 27 7.98 0.05 903
4 56/0.29 2.65 0.72 1.62 30 4.95 0.05 1289
6 84/0.29 3.4 0.9 1.62 36 3.3 0.05 1924
26 1 36/0.19 1.35 0.72 1.35 22 19.5 0.05 522
1.5 36/0.23 1.65 0.72 1.35 24 13.3 0.05 650
2.5 60/0.23 2.15 0.72 1.44 27 7.98 0.05 933
4 56/0.29 2.65 0.72 1.62 30 4.95 0.05 1333
6 84/0.29 3.4 0.9 1.62 36 3.3 0.05 1991
27 1 36/0.19 1.35 0.72 1.35 22 19.5 0.05 541
1.5 36/0.23 1.65 0.72 1.35 24 13.3 0.05 673
2.5 60/0.23 2.15 0.72 1.53 28 7.98 0.05 977
4 56/0.29 2.65 0.72 1.62 31 4.95 0.05 1381
6 84/0.29 3.4 0.9 1.62 37 3.3 0.05 2064
28 1 36/0.19 1.35 0.72 1.35 23 19.5 0.05 561
1.5 36/0.23 1.65 0.72 1.35 25 13.3 0.05 698
2.5 60/0.23 2.15 0.72 1.53 29 7.98 0.05 1013
4 56/0.29 2.65 0.72 1.62 32 4.95 0.05 1444
6 84/0.29 3.4 0.9 1.62 38 3.3 0.05 2141
29 1 36/0.19 1.35 0.72 1.35 23 19.5 0.05 576
1.5 36/0.23 1.65 0.72 1.35 25 13.3 0.05 718
2.5 60/0.23 2.15 0.72 1.53 29 7.98 0.05 1043
4 56/0.29 2.65 0.72 1.62 32 4.95 0.05 1488
6 84/0.29 3.4 0.9 1.62 38 3.3 0.05 2208
30 1 36/0.19 1.35 0.72 1.44 23 19.5 0.05 600
1.5 36/0.23 1.65 0.72 1.44 25 13.3 0.05 747
2.5 60/0.23 2.15 0.72 1.53 29 7.98 0.05 1073
4 56/0.29 2.65 0.72 1.62 32 4.95 0.05 1532
6 84/0.29 3.4 0.9 1.62 38 3.3 0.05 2274

Cables to IEC 60502-1

No. of cores

Conductor

Thickness of insulation

Thickness of Sheath

Overall diameter

 Maximum conductor resistance (at 20°c)

Minimum insulation resistance (at 70°c)

Cable weight
Nominal cross-sectional area No.& dia.of wire Diameter

mm²

 mm

mm

mm

 mm

mm

Ohm / km

MOhm/km

kg / km

2

 0.5 16/0.20 0.92 0.6 0.9 7.5 39.0 0.0130 50
0.75 24/0.20 1.13 0.6 1.2 8.5 26.0 0.0114 70
1 32/0.20 1.31 0.6 1.2 8.7 19.5 0.0104 80
1.5 30/0.25 1.58 0.6 1.2 9.3 13.3 0.0089 100
2.5 50/0.25 2.04 0.7 1.2 10.5 7.98 0.0081 140
4 56/0.30 2.59 0.8 1.2 12.0 4.95 0.0076 190
6 84/0.30 3.6 0.8 1.4 14.0 3.30 0.0061 280
3 0.5 16/0.20 0.92 0.6 1.2 8.5 39.0 0.0130 70
0.75 24/0.20 1.13 0.6 1.2 8.9 26.0 0.0114 80
1 32/0.20 1.31 0.6 1.2 9.1 19.5 0.0104 100
1.5 30/0.25 1.58 0.6 1.2 9.8 13.3 0.0089 120
2.5 50/0.25 2.04 0.7 1.2 11.0 7.98 0.0081 170
4 56/0.30 2.59 0.8 1.2 13.0 4.95 0.0076 240
6 84/0.30 3.6 0.8 1.4 15.0 3.30 0.0061 350
4 0.5 16/0.20 0.92 0.6 1.2 9.1 39.0 0.0130 80
0.75 24/0.20 1.13 0.6 1.2 9.6 26.0 0.0114 100
1 32/0.20 1.31 0.6 1.2 9.8 19.5 0.0104 120
1.5 30/0.25 1.58 0.6 1.2 10.5 13.3 0.0089 140
2.5 50/0.25 2.04 0.7 1.2 12.0 7.98 0.0081 210
4 56/0.30 2.59 0.8 1.4 14.5 4.95 0.0076 320
6 84/0.30 3.6 0.8 1.4 16.5 3.30 0.0061 440
5 0.5 16/0.20 0.92 0.6 1.2 9.8 39.0 0.0130 100
0.75 24/0.20 1.13 0.6 1.2 10.0 26.0 0.0114 120
1 32/0.20 1.31 0.6 1.2 10.5 19.5 0.0104 140
1.5 30/0.25 1.58 0.6 1.2 11.5 13.3 0.0089 180
2.5 50/0.25 2.04 0.7 1.4 13.5 7.98 0.0081 270
4 56/0.30 2.59 0.8 1.4 15.5 4.95 0.0076 390
6 84/0.30 3.6 0.8 1.4 18.0 3.30 0.0061 540
6 0.5 16/0.20 0.92 0.6 1.2 10.5 39.0 0.0130 110
0.75 24/0.20 1.13 0.6 1.2 11.0 26.0 0.0114 130
1 32/0.20 1.31 0.6 1.2 11.5 19.5 0.0104 150
1.5 30/0.25 1.58 0.6 1.2 12.0 13.3 0.0089 190
2.5 50/0.25 2.04 0.7 1.4 14.5 7.98 0.0081 290
4 56/0.30 2.59 0.8 1.4 17.0 4.95 0.0076 430
6 84/0.30 3.6 0.8 1.4 19.5 3.30 0.0061 590
7 6 16/0.20 0.92 0.6 1.2 10.5 39.0 0.0130 110
0.75 24/0.20 1.13 0.6 1.2 11.0 26.0 0.0114 140
1 32/0.20 1.31 0.6 1.2 11.5 19.5 0.0104 160
1.5 30/0.25 1.58 0.6 1.2 12.0 13.3 0.0089 200
2.5 50/0.25 2.04 0.7 1.4 14.5 7.98 0.0081 320
4 56/0.30 2.59 0.8 1.4 17.0 4.95 0.0076 460
6 84/0.30 3.6 0.8 1.4 19.5 3.30 0.0061 640
8 0.5 16/0.20 0.92 0.6 1.2 11.0 39.0 0.0130 130
0.75 24/0.20 1.13 0.6 1.2 11.5 26.0 0.0114 160
1 32/0.20 1.31 0.6 1.2 12.0 19.5 0.0104 180
1.5 30/0.25 1.58 0.6 1.4 13.5 13.3 0.0089 240
2.5 50/0.25 2.04 0.7 1.4 16.0 7.98 0.0081 360
4 56/0.30 2.59 0.8 1.4 18.0 4.95 0.0076 520
6 84/0.30 3.6 0.8 1.4 21.0 3.30 0.0061 730
9 0.5 16/0.20 0.92 0.6 1.2 12.0 39.0 0.0130 140
0.75 24/0.20 1.13 0.6 1.2 12.5 26.0 0.0114 170
1 32/0.20 1.31 0.6 1.4 13.5 19.5 0.0104 220
1.5 30/0.25 1.58 0.6 1.4 14.5 13.3 0.0089 270
2.5 50/0.25 2.04 0.7 1.4 17.0 7.98 0.0081 400
4 56/0.30 2.59 0.8 1.4 20.0 4.95 0.0076 590
6 84/0.30 3.6 0.8 1.4 23.0 3.30 0.0061 830
10 0.5 16/0.20 0.92 0.6 1.2 12.5 39.0 0.0130 150
0.75 24/0.20 1.13 0.6 1.4 14.0 26.0 0.0114 200
1 32/0.20 1.31 0.6 1.4 14.5 19.5 0.0104 240
1.5 30/0.25 1.58 0.6 1.4 15.5 13.3 0.0089 300
2.5 50/0.25 2.04 0.7 1.4 18.0 7.98 0.0081 440
4 56/0.30 2.59 0.8 1.4 21.0 4.95 0.0076 640
6 84/0.30 3.6 0.8 1.8 25.0 3.30 0.0061 950
11

0.5

16/0.20

0.92

 0.6 1.2

12.5

 39.0

0.0130

170

0.75

24/0.20

1.13

 0.6 1.4

14.0

 26.0

0.0114

220
1

32/0.20

1.31

 0.6 1.4

14.5

 19.5

0.0104

260

1.5

30/0.25

1.58

 0.6 1.4

15.5

 13.3

0.0089

330

2.5

50/0.25

2.04

 0.7 1.4

18.0

 7.98

0.0081

490
4

56/0.30

2.59

 0.8 1.4

21.0

 4.95

0.0076

720
6

84/0.30

 3.6 0.8 1.8

25.0

 3.30

0.0061

1060
12

0.5

16/0.20

0.92

 0.6 1.2

13.0

 39.0

0.0130

170

0.75

24/0.20

1.13

 0.6 1.4

14.5

 26.0

0.0114

230
1

32/0.20

1.31

 0.6 1.4

15.0

 19.5

0.0104

270

1.5

30/0.25

1.58

 0.6 1.4

16.0

 13.3

0.0089

340

2.5

50/0.25

2.04

 0.7 1.4

19.0

 7.98

0.0081

510
4

56/0.30

2.59

 0.8 1.4

22.0

 4.95

0.0076

750
6

84/0.30

 3.6 0.8 1.8

26.0

 3.30

0.0061

1110
13

0.5

16/0.20

0.92

 0.6 1.4

14.0

 39.0

0.0130

200

0.75

24/0.20

1.13

 0.6 1.4

15.0

 26.0

0.0114

250
1

32/0.20

1.31

 0.6 1.4

15.5

 19.5

0.0104

300

1.5

30/0.25

1.58

 0.6 1.4

17.0

 13.3

0.0089

370

2.5

50/0.25

2.04

 0.7 1.4

20.0

 7.98

0.0081

560
4

56/0.30

2.59

 0.8 1.4

23.0

 4.95

0.0076

830
6

84/0.30

 3.6 0.8 1.8

28.0

 3.30

0.0061

1220
14

0.5

16/0.20

0.92

 0.6 1.4

14.0

 39.0

0.0130

210

0.75

24/0.20

1.13

 0.6 1.4

15.0

 26.0

0.0114

260
1

32/0.20

1.31

 0.6 1.4

15.5

 19.5

0.0104

300

1.5

30/0.25

1.58

 0.6 1.4

17.0

 13.3

0.0089

390

2.5

50/0.25

2.04

 0.7 1.4

20.0

 7.98

0.0081

580
4

56/0.30

2.59

 0.8 1.4

23.0

 4.95

0.0076

860
6

84/0.30

 3.6 0.8 1.8

28.0

 3.30

0.0061

1270
15

0.5

16/0.20

0.92

 0.6 1.4

14.5

 39.0

0.0130

230

0.75

24/0.20

1.13

 0.6 1.4

15.5

 26.0

0.0114

280
1

32/0.20

1.31

 0.6 1.4

16.0

 19.5

0.0104

330

1.5

30/0.25

1.58

 0.6 1.4

17.5

 13.3

0.0089

430

2.5

50/0.25

2.04

 0.7 1.4

21.0

 7.98

0.0081

640
4

56/0.30

2.59

 0.8 1.8

25.0

 4.95

0.0076

1000
6

84/0.30

 3.6 0.8 1.8

29.0

 3.30

0.0061

1390
16 0.5 16/0.20 0.92 0.6 1.4 15.0 39.0 0.0130 230
0.75 24/0.20 1.13 0.6 1.4 15.5 26.0 0.0114 290
1 32/0.20 1.31 0.6 1.4 16.0 19.5 0.0104 340
1.5 30/0.25 1.58 0.6 1.4 17.5 13.3 0.0089 440
2.5 50/0.25 2.04 0.7 1.4 21.0 7.98 0.0081 660
4 56/0.30 2.59 0.8 1.8 25.0 4.95 0.0076 1030
6 84/0.30 3.6 0.8 1.8 29.0 3.30 0.0061 1440
17 0.5 16/0.20 0.92 0.6 1.4 15.5 39.0 0.0130 260
0.75 24/0.20 1.13 0.6 1.4 16.5 26.0 0.0114 320
1 32/0.20 1.31 0.6 1.4 17.0 19.5 0.0104 370
1.5 30/0.25 1.58 0.6 1.4 18.5 13.3 0.0089 480
2.5 50/0.25 2.04 0.7 1.4 22.0 7.98 0.0081 720
4 56/0.30 2.59 0.8 1.8 27.0 4.95 0.0076 1120
6 84/0.30 3.6 0.8 1.8 31.0 3.30 0.0061 1570
18 0.5 16/0.20 0.92 0.6 1.4 15.5 39.0 0.0130 260
0.75 24/0.20 1.13 0.6 1.4 16.5 26.0 0.0114 320
1 32/0.20 1.31 0.6 1.4 17.0 19.5 0.0104 380
1.5 30/0.25 1.58 0.6 1.4 18.5 13.3 0.0089 490
2.5 50/0.25 2.04 0.7 1.4 22.0 7.98 0.0081 740
4 56/0.30 2.59 0.8 1.8 27.0 4.95 0.0076 1150
6 84/0.30 3.6 0.8 1.8 31.0 3.30 0.0061 1620
19 0.5 16/0.20 0.92 0.6 1.4 15.5 39.0 0.0130 260
0.75 24/0.20 1.13 0.6 1.4 16.5 26.0 0.0114 330
1 32/0.20 1.31 0.6 1.4 17.0 19.5 0.0104 390
1.5 30/0.25 1.58 0.6 1.4 18.5 13.3 0.0089 500
2.5 50/0.25 2.04 0.7 1.4 22.0 7.98 0.0081 760
4 56/0.30 2.59 0.8 1.8 27.0 4.95 0.0076 1190
6 84/0.30 3.6 0.8 1.8 31.0 3.30 0.0061 1670
20 0.5 16/0.20 0.92 0.6 1.4 16.0 39.0 0.0130 290
0.75 24/0.20 1.13 0.6 1.4 17.0 26.0 0.0114 360
1 32/0.20 1.31 0.6 1.4 17.5 19.5 0.0104 420
1.5 30/0.25 1.58 0.6 1.4 19.0 13.3 0.0089 540
2.5 50/0.25 2.04 0.7 1.4 23.0 7.98 0.0081 820
4 56/0.30 2.59 0.8 1.8 28.0 4.95 0.0076 1280
6 84/0.30 3.6 0.8 1.8 32.0 3.30 0.0061 1800
21

0.5

16/0.20

0.92

 0.6 1.4

16.5

 39.0

0.0130

290

0.75

24/0.20

1.13

 0.6 1.4

17.5

 26.0

0.0114

360
1

32/0.20

1.31

 0.6 1.4

18.0

 19.5

0.0104

430

1.5

30/0.25

1.58

 0.6 1.4

19.5

 13.3

0.0089

550

2.5

50/0.25

2.04

 0.7 1.4

23.0

 7.98

0.0081

840
4

56/0.30

2.59

 0.8 1.8

28.0

 4.95

0.0076

1300
6

84/0.30

 3.6 0.8 1.8

32.0

 3.30

0.0061

1840
22

0.5

16/0.20

0.92

 0.6 1.4

17.0

 39.0

0.0130

310

0.75

24/0.20

1.13

 0.6 1.4

18.0

 26.0

0.0114

390
1

32/0.20

1.31

 0.6 1.4

18.5

 19.5

0.0104

470

1.5

30/0.25

1.58

 0.6 1.4

20.0

 13.3

0.0089

600

2.5

50/0.25

2.04

 0.7 1.8

25.0

 7.98

0.0081

950
4

56/0.30

2.59

 0.8 1.8

30.0

 4.95

0.0076

1410
6

84/0.30

 3.6 0.8 1.8

34.0

 3.30

0.0061

1980
23

0.5

16/0.20

0.92

 0.6 1.4

17.0

 39.0

0.0130

310

0.75

24/0.20

1.13

 0.6 1.4

18.0

 26.0

0.0114

390
1

32/0.20

1.31

 0.6 1.4

18.5

 19.5

0.0104

470

1.5

30/0.25

1.58

 0.6 1.4

20.0

 13.3

0.0089

600

2.5

50/0.25

2.04

 0.7 1.8

25.0

 7.98

0.0081

960
4

56/0.30

2.59

 0.8 1.8

30.0

 4.95

0.0076

1430
6

84/0.30

 3.6 0.8 1.8

34.0

 3.30

0.0061

2010
24

0.5

16/0.20

0.92

 0.6 1.4

18.0

 39.0

0.0130

330

0.75

24/0.20

1.13

 0.6 1.4

19.0

 26.0

0.0114

410
1

32/0.20

1.31

 0.6 1.4

19.5

 19.5

0.0104

490

1.5

30/0.25

1.58

 0.6 1.4

21.0

 13.3

0.0089

620

2.5

50/0.25

2.04

 0.7 1.8

26.0

 7.98

0.0081

1000
4

56/0.30

2.59

 0.8 1.8

31.0

 4.95

0.0076

1480
6

84/0.30

 3.6 0.8 2.2

37.0

 3.30

0.0061

2160
25

0.5

16/0.20

0.92

 0.6 1.4

18.0

 39.0

0.0130

350

0.75

24/0.20

1.13

 0.6 1.4

19.0

 26.0

0.0114

430
1

32/0.20

1.31

 0.6 1.4

19.5

 19.5

0.0104

520

1.5

30/0.25

1.58

 0.6 1.4

21.0

 13.3

0.0089

660

2.5

50/0.25

2.04

 0.7 1.8

26.0

 7.98

0.0081

1060
4

56/0.30

2.59

 0.8 1.8

31.0

 4.95

0.0076

1580
6

84/0.30

 3.6 0.8 2.2

37.0

 3.30

0.0061

2290
26 0.5 16/0.20 0.92 0.6 1.4 18.0 39.0 0.0130 350
0.75 24/0.20 1.13 0.6 1.4 19.0 26.0 0.0114 440
1 32/0.20 1.31 0.6 1.4 19.5 19.5 0.0104 530
1.5 30/0.25 1.58 0.6 1.4 21.0 13.3 0.0089 680
2.5 50/0.25 2.04 0.7 1.8 26.0 7.98 0.0081 1080
4 56/0.30 2.59 0.8 1.8 31.0 4.95 0.0076 1610
6 84/0.30 3.6 0.8 2.2 37.0 3.30 0.0061 2340
27 0.5 16/0.20 0.92 0.6 1.4 18.5 39.0 0.0130 360
0.75 24/0.20 1.13 0.6 1.4 19.5 26.0 0.0114 450
1 32/0.20 1.31 0.6 1.4 20.0 19.5 0.0104 530
1.5 30/0.25 1.58 0.6 1.4 22.0 13.3 0.0089 690
2.5 50/0.25 2.04 0.7 1.8 27.0 7.98 0.0081 1100
4 56/0.30 2.59 0.8 1.8 32.0 4.95 0.0076 1640
6 84/0.30 3.6 0.8 2.2 38.0 3.30 0.0061 2390
28 0.5 16/0.20 0.92 0.6 1.4 19.0 39.0 0.0130 380
0.75 24/0.20 1.13 0.6 1.4 20.0 26.0 0.0114 480
1 32/0.20 1.31 0.6 1.4 21.0 19.5 0.0104 570
1.5 30/0.25 1.58 0.6 1.4 23.0 13.3 0.0089 730
2.5 50/0.25 2.04 0.7 1.8 28.0 7.98 0.0081 1170
4 56/0.30 2.59 0.8 1.8 33.0 4.95 0.0076 1740
6 84/0.30 3.6 0.8 2.2 39.0 3.30 0.0061 2530
29 0.5 16/0.20 0.92 0.6 1.4 19.0 39.0 0.0130 380
0.75 24/0.20 1.13 0.6 1.4 20.0 26.0 0.0114 480
1 32/0.20 1.31 0.6 1.4 21.0 19.5 0.0104 580
1.5 30/0.25 1.58 0.6 1.4 23.0 13.3 0.0089 740
2.5 50/0.25 2.04 0.7 1.8 28.0 7.98 0.0081 1190
4 56/0.30 2.59 0.8 1.8 33.0 4.95 0.0076 1780
6 84/0.30 3.6 0.8 2.2 39.0 3.30 0.0061 2580
30 0.5 16/0.20 0.92 0.6 1.4 19.0 39.0 0.0130 390
0.75 24/0.20 1.13 0.6 1.4 20.0 26.0 0.0114 490
1 32/0.20 1.31 0.6 1.4 21.0 19.5 0.0104 580
1.5 30/0.25 1.58 0.6 1.4 23.0 13.3 0.0089 760
2.5 50/0.25 2.04 0.7 1.8 28.0 7.98 0.0081 1210
4 56/0.30 2.59 0.8 1.8 33.0 4.95 0.0076 1810
6 84/0.30 3.6 0.8 2.2 39.0 3.30 0.0061 2630
31 0.5 16/0.20 0.92 0.6 1.4 19.5 39.0 0.0130 410
0.75 24/0.20 1.13 0.6 1.4 21.0 26.0 0.0114 520
1 32/0.20 1.31 0.6 1.4 22.0 19.5 0.0104 620
1.5 30/0.25 1.58 0.6 1.8 24.0 13.3 0.0089 850
2.5 50/0.25 2.04 0.7 1.8 29.0 7.98 0.0081 1280
4 56/0.30 2.59 0.8 1.8 34.0 4.95 0.0076 1920
6 84/0.30 3.6 0.8 2.2 41.0 3.30 0.0061 2780
32 0.5 16/0.20 0.92 0.6 1.4 19.5 39.0 0.0130 420
0.75 24/0.20 1.13 0.6 1.4 21.0 26.0 0.0114 530
1 32/0.20 1.31 0.6 1.4 22.0 19.5 0.0104 630
1.5 30/0.25 1.58 0.6 1.8 24.0 13.3 0.0089 860
2.5 50/0.25 2.04 0.7 1.8 29.0 7.98 0.0081 1300
4 56/0.30 2.59 0.8 1.8 34.0 4.95 0.0076 1950
6 84/0.30 3.6 0.8 2.2 41.0 3.30 0.0061 2830
33 0.5 16/0.20 0.92 0.6 1.4 19.5 39.0 0.0130 420
0.75 24/0.20 1.13 0.6 1.4 21.0 26.0 0.0114 530
1 32/0.20 1.31 0.6 1.4 22.0 19.5 0.0104 640
1.5 30/0.25 1.58 0.6 1.8 24.0 13.3 0.0089 870
2.5 50/0.25 2.04 0.7 1.8 29.0 7.98 0.0081 1330
4 56/0.30 2.59 0.8 1.8 34.0 4.95 0.0076 1980
6 84/0.30 3.6 0.8 2.2 41.0 3.30 0.0061 2880
34 0.5 16/0.20 0.92 0.6 1.4 20.0 39.0 0.0130 450
0.75 24/0.20 1.13 0.6 1.4 21.0 26.0 0.0114 570
1 32/0.20 1.31 0.6 1.4 22.0 19.5 0.0104 680
1.5 30/0.25 1.58 0.6 1.8 25.0 13.3 0.0089 920
2.5 50/0.25 2.04 0.7 1.8 30.0 7.98 0.0081 1400
4 56/0.30 2.59 0.8 2.2 37.0 4.95 0.0076 2160
6 84/0.30 3.6 0.8 2.2 42.0 3.30 0.0061 3030
35 0.5 16/0.20 0.92 0.6 1.4 20.0 39.0 0.0130 450
0.75 24/0.20 1.13 0.6 1.4 21.0 26.0 0.0114 570
1 32/0.20 1.31 0.6 1.4 22.0 19.5 0.0104 680
1.5 30/0.25 1.58 0.6 1.8 25.0 13.3 0.0089 930
2.5 50/0.25 2.04 0.7 1.8 30.0 7.98 0.0081 1420
4 56/0.30 2.59 0.8 2.2 37.0 4.95 0.0076 2190
6 84/0.30 3.6 0.8 2.2 42.0 3.30 0.0061 3080
36 0.5 16/0.20 0.92 0.6 1.4 20.0 39.0 0.0130 460
0.75 24/0.20 1.13 0.6 1.4 21.0 26.0 0.0114 580
1 32/0.20 1.31 0.6 1.4 22.0 19.5 0.0104 690
1.5 30/0.25 1.58 0.6 1.8 25.0 13.3 0.0089 950
2.5 50/0.25 2.04 0.7 1.8 30.0 7.98 0.0081 1440
4 56/0.30 2.59 0.8 2.2 37.0 4.95 0.0076 2220
6 84/0.30 3.6 0.8 2.2 42.0 3.30 0.0061 3140
37 0.5 16/0.20 0.92 0.6 1.4 20.0 39.0 0.0130 460
0.75 24/0.20 1.13 0.6 1.4 21.0 26.0 0.0114 590
1 32/0.20 1.31 0.6 1.4 22.0 19.5 0.0104 700
1.5 30/0.25 1.58 0.6 1.8 25.0 13.3 0.0089 960
2.5 50/0.25 2.04 0.7 1.8 30.0 7.98 0.0081 1460
4 56/0.30 2.59 0.8 2.2 37.0 4.95 0.0076 2260
6 84/0.30 3.6 0.8 2.2 42.0 3.30 0.0061 3190
38 0.5 16/0.20 0.92 0.6 1.4 21.0 39.0 0.0130 490
0.75 24/0.20 1.13 0.6 1.4 22.0 26.0 0.0114 620
1 32/0.20 1.31 0.6 1.4 23.0 19.5 0.0104 740
1.5 30/0.25 1.58 0.6 1.8 26.0 13.3 0.0089 1010
2.5 50/0.25 2.04 0.7 1.8 31.0 7.98 0.0081 1540
4 56/0.30 2.59 0.8 2.2 38.0 4.95 0.0076 2370
6 84/0.30 3.6 0.8 2.2 44.0 3.30 0.0061 3340
39 0.5 16/0.20 0.92 0.6 1.4 21.0 39.0 0.0130 490
0.75 24/0.20 1.13 0.6 1.4 22.0 26.0 0.0114 620
1 32/0.20 1.31 0.6 1.4 23.0 19.5 0.0104 750
1.5 30/0.25 1.58 0.6 1.8 26.0 13.3 0.0089 1020
2.5 50/0.25 2.04 0.7 1.8 31.0 7.98 0.0081 1560
4 56/0.30 2.59 0.8 2.2 38.0 4.95 0.0076 2400
6 84/0.30 3.6 0.8 2.2 44.0 3.30 0.0061 3390
40 0.5 16/0.20 0.92 0.6 1.4 21.0 39.0 0.0130 500
0.75 24/0.20 1.13 0.6 1.4 22.0 26.0 0.0114 630
1 32/0.20 1.31 0.6 1.4 23.0 19.5 0.0104 750
1.5 30/0.25 1.58 0.6 1.8 26.0 13.3 0.0089 1030
2.5 50/0.25 2.04 0.7 1.8 31.0 7.98 0.0081 1570
4 56/0.30 2.59 0.8 2.2 38.0 4.95 0.0076 2430
6 84/0.30 3.6 0.8 2.2 44.0 3.30 0.0061 3430

41

0.5

16/0.20

0.92

 0.6 1.4

22.0

 39.0

0.0130

530

0.75

24/0.20

1.13

 0.6 1.4

23.0

 26.0

0.0114

670
1

32/0.20

1.31

 0.6 1.8

25.0

 19.5

0.0104

850

1.5

30/0.25

1.58

 0.6 1.8

27.0

 13.3

0.0089

1100

2.5

50/0.25

2.04

 0.7 1.8

33.0

 7.98

0.0081

1670
4

56/0.30

2.59

 0.8 2.2

40.0

 4.95

0.0076

2580
6

84/0.30

 3.6 0.8 2.2

46.0

 3.30

0.0061

3630

42

0.5

16/0.20

0.92

 0.6 1.4

22.0

 39.0

0.0130

540

0.75

24/0.20

1.13

 0.6 1.4

23.0

 26.0

0.0114

680
1

32/0.20

1.31

 0.6 1.8

25.0

 19.5

0.0104

860

1.5

30/0.25

1.58

 0.6 1.8

27.0

 13.3

0.0089

1110

2.5

50/0.25

2.04

 0.7 1.8

33.0

 7.98

0.0081

1690
4

56/0.30

2.59

 0.8 2.2

40.0

 4.95

0.0076

2610
6

84/0.30

 3.6 0.8 2.2

46.0

 3.30

0.0061

3680

43

0.5

16/0.20

0.92

 0.6 1.4

22.0

 39.0

0.0130

540

0.75

24/0.20

1.13

 0.6 1.4

23.0

 26.0

0.0114

680
1

32/0.20

1.31

 0.6 1.8

25.0

 19.5

0.0104

860

1.5

30/0.25

1.58

 0.6 1.8

27.0

 13.3

0.0089

1120

2.5

50/0.25

2.04

 0.7 1.8

33.0

 7.98

0.0081

1700
4

56/0.30

2.59

 0.8 2.2

40.0

 4.95

0.0076

2620
6

84/0.30

 3.6 0.8 2.2

46.0

 3.30

0.0061

3700

44

0.5

16/0.20

0.92

 0.6 1.4

22.0

 39.0

0.0130

540

0.75

24/0.20

1.13

 0.6 1.4

24.0

 26.0

0.0114

690
1

32/0.20

1.31

 0.6 1.8

26.0

 19.5

0.0104

870

1.5

30/0.25

1.58

 0.6 1.8

28.0

 13.3

0.0089

1130

2.5

50/0.25

2.04

 0.7 1.8

34.0

 7.98

0.0081

1720
4

56/0.30

2.59

 0.8 2.2

41.0

 4.95

0.0076

2660
6

84/0.30

 3.6 0.8 2.6

48.0

 3.30

0.0061

3860

45

0.5

16/0.20

0.92

 0.6 1.4

22.0

 39.0

0.0130

580

0.75

24/0.20

1.13

 0.6 1.4

24.0

 26.0

0.0114

730
1

32/0.20

1.31

 0.6 1.8

26.0

 19.5

0.0104

920

1.5

30/0.25

1.58

 0.6 1.8

28.0

 13.3

0.0089

1190

2.5

50/0.25

2.04

 0.7 1.8

34.0

 7.98

0.0081

1820
4

56/0.30

2.59

 0.8 2.2

41.0

 4.95

0.0076

2810
6

84/0.30

 3.6 0.8 2.6

48.0

 3.30

0.0061

4050
46 0.5 16/0.20 0.92 0.6 1.4 22.0 39.0 0.0130 570
0.75 24/0.20 1.13 0.6 1.4 24.0 26.0 0.0114 730
1 32/0.20 1.31 0.6 1.8 26.0 19.5 0.0104 920
1.5 30/0.25 1.58 0.6 1.8 28.0 13.3 0.0089 1190
2.5 50/0.25 2.04 0.7 1.8 34.0 7.98 0.0081 1820
4 56/0.30 2.59 0.8 2.2 41.0 4.95 0.0076 2810
6 84/0.30 3.6 0.8 2.6 48.0 3.30 0.0061 4060
47 0.5 16/0.20 0.92 0.6 1.4 22.0 39.0 0.0130 580
0.75 24/0.20 1.13 0.6 1.4 24.0 26.0 0.0114 730
1 32/0.20 1.31 0.6 1.8 26.0 19.5 0.0104 930
1.5 30/0.25 1.58 0.6 1.8 28.0 13.3 0.0089 1200
2.5 50/0.25 2.04 0.7 1.8 34.0 7.98 0.0081 1840
4 56/0.30 2.59 0.8 2.2 41.0 4.95 0.0076 2850
6 84/0.30 3.6 0.8 2.6 48.0 3.30 0.0061 4120
48 0.5 16/0.20 0.92 0.6 1.4 23.0 39.0 0.0130 580
0.75 24/0.20 1.13 0.6 1.8 25.0 26.0 0.0114 790
1 32/0.20 1.31 0.6 1.8 26.0 19.5 0.0104 940
1.5 30/0.25 1.58 0.6 1.8 29.0 13.3 0.0089 1210
2.5 50/0.25 2.04 0.7 1.8 34.0 7.98 0.0081 1860
4 56/0.30 2.59 0.8 2.2 42.0 4.95 0.0076 2880
6 84/0.30 3.6 0.8 2.6 49.0 3.30 0.0061 4170
