Industrial Cables-British Standard
318TQ to BS 6500

Application and Description

These cables can be used either in dry, humid or wet places or in contact with oil or grease, in weather conditions and under weak mechanical stress, they are suitable for power supply to small appliances in industrial plants, machine shops, heating plates, portable lamps, farming equipment etc. They are also
suitable for caravans and camping equipment. 318TQ is equivalent to harmonized code H05BN4-F.

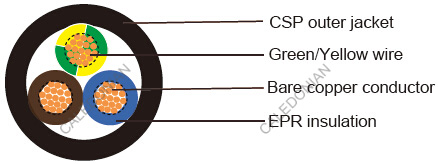

Cable Construction

• - Fine bare copper strands
  - Stranding to BS 6360 CL-5 or IEC 60228 CL-5
  - EPR(Ethylene Propylene Rubber) rubber EI7 insulation
  - CSP(Chlorosulphonated Polyethylene) outer jacket EM7

Core Identification

• 2 Cores: Brown, Blue
• 3 Cores: Brown, Blue and Green/Yellow
• 4 Cores: Brown, Grey, Black and Green/Yellow
• 5 Cores: Brown, Blue, Grey, Black and Green/Yellow
• 6 cores and above: white insulation with black numerals

Technical Characteristics

• - Working voltage: 300/500 volts
  - Test voltage: 2000 volts
  - Flexing bending radius: 6xOverall diameter
  - Fixed bending radius: 4xOverall diameter
  - Temperature Range: -25º C to +90º C
  - Maximum short circuit temperature: +250º C
  - Flame retardant: IEC 60332.1
  - Insulation resistance: 20 MΩxkm

Cable Parameter

AWG (No of Strands/ Strand Diameter)	No. of Cores x Nominal Cross Sectional Area #xmm2	Nominal Thickness of Insulation mm	Nominal Thickness of Sheath mm	Nominal Overall Diameter mm	Nominal Weight kg/km
3182TQ
18(24/32)	2x0.75	0.6	0.8	6.5	66
17(32/32)	2x1	0.6	0.9	7.1	79
3183TQ
18(24/32)	3x0.75	0.6	0.9	7.1	80
17(32/32)	3x1	0.6	0.9	7.6	94
