Single Core V90HT 0.6/1kV

Application

These cables are for electrical Interconnections.

Standard

  • AS 3191
  • AS1125
  • AS3808

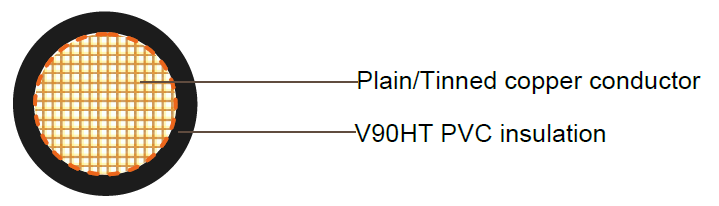

Cable Construction

Conductor Tinned copper wire (TCW) or plain copper wire (PCW) to AS1125
Insulation V90HT PVC AS3808
Colours: Red, Blue, Green, Yellow, White, Black, Brown, Violet, Orange, Grey

Technical Characteristics

Australian Standard Industrial Cables(ASLV)

Conductor Size mm2 Electrical Resistance @20.C Ohm/km(TCW) Electrical Resistance @20.C Ohm/km(PCW) AMP Rating
0.5 40.1 39 3
0.75 26.7 26 7.5
1 20 19.5 10
1.5 13.7 13.3 15
2.5 8.2 8 20
4 5.1 5 25

Cable Parameter

Coductor Size No.of cores Conductor No./ OD Nominal Insulation Thickness Nominal O.D. Approx.cable weight
mm2 1 mm mm mm kg/100m
0.5 1 16/0.2 0.8 2.6 1.1
0.75 1 24/0.2 0.8 2.8 1.4
1 1 32/0.2 0.8 3 1.7
1.5 1 30/0.25 0.8 3.3 2.2
2.5 1 50/0.25 0.9 3.95 3.5
4 1 56/0.3 1 4.75 5.3
