PVC Insulated, PVC Sheathed 2 core+E Unarmored Cables, 0.6/1kV

Application

These cables are used for mains, submains and subcircuits unenclosed, enclosed in conduit, buried direct or in underground ducts for buildings and industrial plants where not subject to mechanical damage.

Standard

  • AS/NZS 5000.1
  • AS/NZS 3008
  • AS/NZS 1125

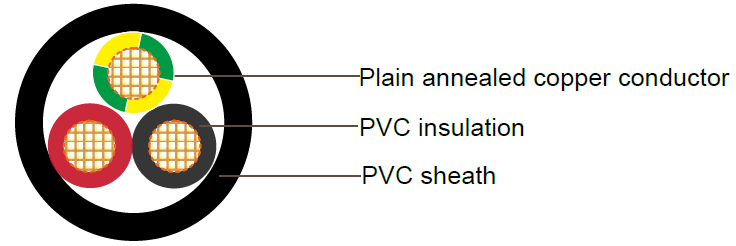

Cable Construction

Conductor Plain annealed copper.
Insulation Polyvinylchloride compound PVC V-90
Insulation colour: 2C + E - Red, Black, Green/yellow
Sheath: Polyvinylchloride compound PVC 5V-90
Sheath colour: Black, other colors are available upon request

Technical Characteristics

Australian Standard Industrial Cables(ASLV)

Conductor Current Ratings Electrical Characteristics
Nominal Area mm2 Unenclosed In Air
A
Buried Direct A Buried In Ducts A Maximum DC Resistance @20°C Ohm/km Maximum AC Resistance @75°C Ohm/km Reactance Ohm/km Single Phase Voltage Drop @75°C mV/Am
1.5 18 14 22 13.6 16.5 0.111 33.0
2.5 26 20 31 7.41 9.01 0.102 18.0
4 34 26 40 4.61 5.61 0.102 11.2
6 44 34 51 3.08 3.75 0.0967 7.50
10 60 47 68 1.83 2.23 0.0906 4.46
16 80 63 88 1.15 1.40 0.0861 2.81
25 105 88 115 0.727 0.884 0.0853 1.78
35 130 105 140 0.524 0.638 0.0826 1.28
50 160 125 165 0.387 0.471 0.0797 0.957
70 200 155 205 0.268 0.327 0.0770 0.673
95 250 190 250 0.193 0.236 0.0766 0.498

Cable Parameter

Nom. conductor area
mm2
Conductor No./ OD Nom. insulation thickness mm Nom. earth conductor area
mm2
Nom. earth conductor insulation thickness mm Nom. overall diameter mm Approx. mass kg/km
1.5 7/0.50 0.8 1.5 0.6 10.6 160
2.5 7/0.67 0.8 2.5 0.7 11.6 220
4 7/0.85 1.0 2.5 0.7 13.1 295
6 7/1.04 1.0 2.5 0.7 14.2 335
10 7/1.35 1.0 4 1.0 15.9 440
16 7/1.70 1.0 6 1.0 17.9 620
25 7/2.14 1.2 6 1.0 21.6 840
35 7/2.65 1.2 10 1.0 22.8 1090
50 19/1.89 1.4 16 1.0 25.8 1465
70 19/2.24 1.4 25 1.2 30.4 1900
95 19/2.65 1.6 25 1.2 34.8 2500
