XLPE Insulated, PVC Sheathed 2 core+E Unarmored Cables, 0.6/1kV

Application

These cables are used for mains, submains and subcircuits unenclosed, enclosed in conduit, buried direct or in underground ducts for buildings and industrial plants where not subject to mechanical damage.

Standard

  • AS/NZS 5000.1
  • AS/NZS 3008
  • AS/NZS 1125

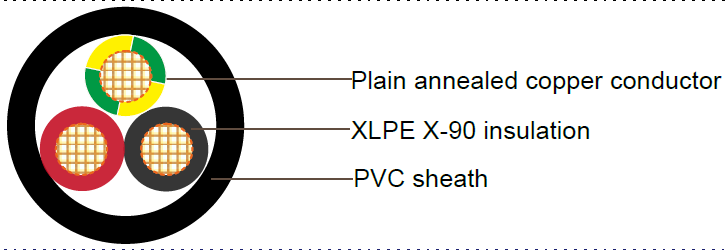

Cable Construction

Conductor Plain annealed copper.
Insulation XLPE X-90.
Insulation colour: 2C + E - Red, Black, Green/yellow
Sheath: Polyvinylchloride compound PVC 5V-90
Sheath colour: Black, other colors are available upon request

Technical Characteristics

Australian Standard Industrial Cables(ASLV)

Conductor Current Ratings Electrical Characteristics
Nominal Area mm2 Unenclosed In Air
A
Buried Direct A Buried In Ducts A Maximum DC Resistance @20°C Ohm/km Maximum AC Resistance @90°C Ohm/km Reactance Ohm/km Single Phase Voltage Drop @90°C mV/Am
10 80 107 82 1.83 2.33 0.084 1.68
16 107 139 107 1.51 1.47 0.081 2.95
25 143 182 139 0.727 0.927 0.081 1.86
35 160 130 160 0.524 0.669 0.0786 1.35
50 195 160 190 0.387 0.494 0.0751 1.00
70 250 200 235 0.268 0.343 0.0741 0.703
95 310 240 285 0.193 0.248 0.0725 0.520
120 360 285 325 0.153 0.197 0.0713 0.423

Cable Parameter

Nom. conductor area
mm2
Conductor No./ OD Nom. insulation thickness mm Nom. earth conductor area
mm2
Nom. earth conductor insulation thickness mm Nom. sheath thickness mm Nom. overall diameter mm Approx. mass kg/km
10 7/1.35 0.7 4 0.7 1.4 14.9 380
16 7/1.70 0.7 6 0.7 1.4 16.6 520
25 7/2.14 0.9 6 0.7 1.4 20.2 750
35 7/2.65 0.9 10 0.7 1.4 23.0 985
50 19/1.89 1.0 16 0.7 1.4 24.1 1310
70 19/2.24 1.1 25 0.9 1.4 29.8 1860
95 19/2.65 1.1 25 0.9 1.5 31.6 2415
120 19/2.94 1.2 35 0.9 1.6 35.5 3055
