XLPE Insulated, PVC Sheathed Unarmored Multicore control Cables 0.6/1kV

Application

These cables are used for control circuits unenclosed, enclosed in conduit, buried direct or in underground ducts for commercial, industrial, mining and electricity authority systems where not subject to mechanical damage.

Standard

  • AS/NZS 5000.1
  • AS/NZS 3008
  • AS/NZS 1125

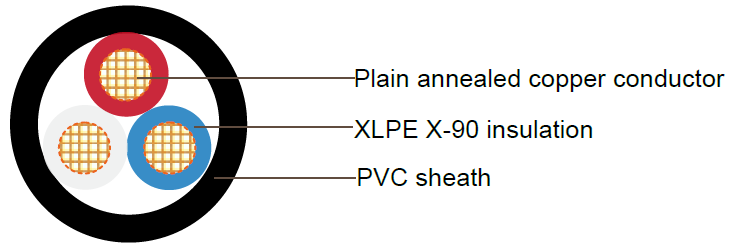

Cable Construction

Conductor Plain annealed copper.
Insulation XLPE X-90.
Insulation colour: 3C – Red, White, Blue 4C - Red, White, Blue,black
Sheath: Polyvinylchloride compound PVC 5V-90
Sheath colour: Black, other colors are available upon request

Technical Characteristics

Australian Standard Industrial Cables(ASLV)

Conductor Current Ratings Electrical Characteristics
Nominal Area mm2 Unenclosed  In Air
A		 Buried Direct A Buried In Ducts A Maximum DC Resistance @20°C Ohm/km Maximum AC Resistance @90°C Ohm/km Reactance Ohm/km Three Phase Voltage Drop @90°C mV/Am
10 68 91 68 1.83 2.33 0.084 4.05
16 91 118 89 1.15 1.47 0.081 2.55
25 121 155 118 0.727 0.927 0.081 1.61

Cable Parameter

Nom. conductor area Main conductor type Nom. insulation thickness Nom. sheath thickness Nom. overall diameter Approx. mass
mm2 mm mm mm kg/km
3 cores
10 7/1.35 0.7 1.4 15.3 435
16 7/1.70 0.7 1.4 17.6 625
25 7/2.14 0.9 1.4 21.5 950
4 cores
10 7/1.35 0.7 1.4 16.7 550
16 7/1.70 0.7 1.4 19.2 800
25 7/2.14 0.9 1.4 23.6 1250
