PVC Insulated, Single Core Cable, 450/750V

Application

These cables are used for switchboard and control panel wiring, and for fixed wiring within other enclosures or apparatus where the cable is not accessible without the use of tools.

Standard

  • AS/NZS 5000.2
  • AS 3008
  • AS 1125

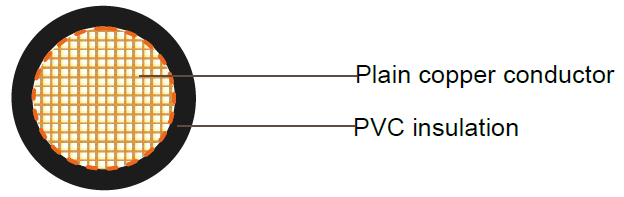

Cable Construction

Conductor Plain annealed copper. Maximum operating temperature: 90°C
Insulation PVC V90
Insulation colour: Red/Black
Sheath: Polyvinylchloride compound PVC 3V90
Sheath colour: Orange, other colors are available upon requestWhite, other colors are available upon request

Technical Characteristics

Australian Standard Industrial Cables(ASLV)

Conductor Nominal Area mm2 Current Ratings Electrical Characteristics
Unenclosed In Air
A		 Surrounded by thermal insulation A Buried In Ducts
A		 Maximum DC Resistance @20°C Ohm/km Maximum AC Resistance @75°C Ohm/km Reactance Ohm/km Single Phase Voltage Drop mV/Am
1 15 26 20 18.1 27.0 0.168 54.0
1.5 18 34 26 13.6 17.3 0.157 34.6
2.5 26 47 36 7.41 9.45 0.143 18.9
4 35 62 46 4.61 5.88 0.137 11.8
6 46 78 58 3.08 3.93 0.128 7.86
10 62 103 78 1.83 2.33 0.118 4.68
16 82 132 100 1.15 1.47 0.111 2.94

Cable Parameter

Nom. conductor area mm2 Conductor No./ OD Nom. insulation thickness mm Nom. sheath thickness mm Nom. overall diameter mm Approx. mass kg/km
1.0 1/1.13 0.6 0.9 4.1 30
1.5 7/0.50 0.6 0.9 4.4 35
2.5 7/0.67 0.7 1 5.1 55
4 7/0.85 0.8 1.1 6.0 80
6 7/1.04 1.0 1.1 6.6 100
10 7/1.35 1.0 1.2 7.8 145
16 7/1.70 1.0 1.3 9.1 225
