PVC Insulated, Round Cables, 450/750V

Application

These cables are used for control circuits unenclosed, enclosed in conduit, buried direct or in underground ducts for commercial, industrial, mining and electricity authority systems where not subject to mechanical damage.

Standard

  • AS/NZS 5000.2
  • AS 1125
  • AS 3808

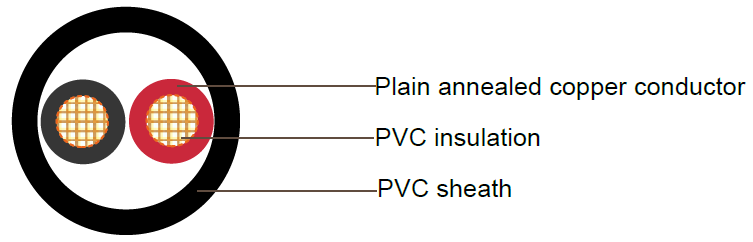

Cable Construction

Conductor Plain annealed copper. Maximum operating temperature: 90°C
Insulation PVC V90.
Insulation colour: 2C: Red, Black 3C: Red, White & Blue 4C: Red, White, Blue, & Black 7-37C: White (Numbered)
Sheath: Polyvinylchloride compound PVC 5V90
Sheath colour: Black, other colors are available upon request

Technical Characteristics

Australian Standard Industrial Cables(ASLV)

Conductor Nominal Area
mm2		 Current Ratings Electrical Characteristics
Unenclosed In Air
A		 Buried direct
A		 Buried In Ducts A Maximum DC Resistance @20°C Ohm/km Maximum AC Resistance @75°C Ohm/km Reactance Ohm/km Single Phase Voltage Drop @75°C
2 cores
1.5 21 31 24 13.6 16.5 0.111 33.0
2.5 30 44 34 7.41 9.01 0.102 18.0
3 cores
1.5 17 26 21 13.6 16.5 0.111 28.6
2.5 25 37 29 7.41 9.01 0.102 15.6
4 33 48 37 4.61 5.61 0.102 9.71
6 42 61 47 3.08 3.75 0.097 6.49
4 cores
1.5 17 26 21 13.6 16.5 0.111 28.6
2.5 25 37 29 7.41 9.01 0.102 15.6
4 33 48 37 4.61 5.61 0.102 9.71
6 42 61 47 3.08 3.75 0.097 6.49
7-37 cores
1.0 14 21 17 18.1 25.8 0.119 51.6
1.5 17 26 21 13.6 16.5 0.111 33.0
2.5 25 37 29 7.41 9.01 0.102 18.0

Cable Parameter

2 cores

Nom. conductor area mm2 Conductor No./ OD Nom. insulation thickness mm Nom. sheath thickness mm Nom. overall diameter mm Approx. mass kg/km
1.5 7/0.50 0.6 0.9 8.0 95
2.5 7/0.67 0.7 1 9.6 140

3 cores

Nom. conductor area mm2 Conductor No./ OD Nom. insulation thickness mm Nom. sheath thickness mm Nom. overall diameter mm Approx. mass kg/km
1.5 7/0.50 0.6 0.9 8.5 120
2.5 7/0.67 0.7 1 10.1 170
4 7/0.85 0.8 1.1 11.7 240
6 7/1.04 1.0 1.1 13.2 300
4 cores
Nom. conductor area mm2 Conductor No./ OD Nom. insulation thickness mm Nom. sheath thickness mm Nom. overall diameter mm Approx. mass kg/km
1.5 7/0.50 0.6 0.9 9.2 130
2.5 7/0.67 0.7 1 11.4 210
4 7/0.85 0.8 1.1 12.4 280
6 7/1.04 1.0 1.1 13.8 330
7 cores
Nom. conductor area mm2 Conductor No./ OD Nom. insulation thickness mm Nom. sheath thickness mm Nom. overall diameter mm Approx. mass kg/km
1.0 1/1.13 0.6 0.9 10.0 150
1.5 7/0.50 0.6 0.9 11.4 195
2.5 7/0.67 0.7 1 13.3 300
12 cores
Nom. conductor area mm2 Conductor No./ OD Nom. insulation thickness mm Nom. sheath thickness mm Nom. overall diameter mm Approx. mass kg/km
1.0 1/1.13 0.6 0.9 12.9 240
1.5 7/0.50 0.6 0.9 15.0 320
2.5 7/0.67 0.7 1 17.5 490
19 cores
Nom. conductor area mm2 Conductor No./ OD Nom. insulation thickness mm Nom. sheath thickness mm Nom. overall diameter mm Approx. mass kg/km
1.0 1/1.13 0.6 0.9 14.9 350
1.5 7/0.50 0.6 0.9 16.8 450
2.5 7/0.67 0.7 1 21.0 760
27 cores
Nom. conductor area mm2 Conductor No./ OD Nom. insulation thickness mm Nom. sheath thickness mm Nom. overall diameter mm Approx. mass kg/km
1.0 1/1.13 0.6 0.9 17.9 480
1.5 7/0.50 0.6 0.9 21.1 670
2.5 7/0.67 0.7 1 24.8 1030
37 cores
Nom. conductor area mm2 Conductor No./ OD Nom. insulation thickness mm Nom. sheath thickness mm Nom. overall diameter mm Approx. mass kg/km
1.0 1/1.13 0.6 0.9 21.2 690
1.5 7/0.50 0.6 0.9 22.7 840
2.5 7/0.67 0.7 1 27.9 1380
