50kV DC Screened Silicone Wire

Application

The single core cables are suitable for high-voltage cabinet, power system, high voltage electric machineries, television receivers, transformers,high-voltage cables for electronic instruments, etc.

Rated Voltage

50kV

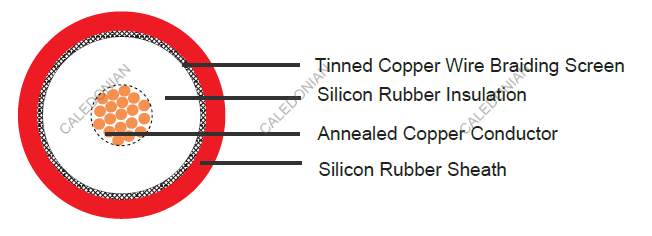

Construction

50kV DC Screened Silicone Wire
Conductor Annealed copper conductor, class 5.
Insulation Silicone rubber.
Screen Tinned copper wire braiding.
Sheath Silicone rubber.

COLOR CODE

Red, (other colours upon request).

PHYSICAL PROPERTIES

Operating Temperature: -45°C-180°C

Dimension Data

　Part NO. Conductor Overall Diameter
No. of Core X Cross Section No./Nominal Diameter of Strands Nominal Diameter Min. Max.
　 mm² No./mm mm mm mm
HVDC-SCS-1C0.75 1x0.75 24/0.2 1.2 13.0 17.3
