750°C 600V High Temperature Wire
High Temperature Fiberglass Wire · Mica Insulated
Product application:
Engineered for the most extreme thermal environments where conventional wires fail. Essential for metallurgical processing, aluminum smelting, glass tank furnace wiring, cement plant preheaters, and incinerator instrumentation. Also deployed in aerospace engine test cells, nuclear reactor containment zones, and emergency safety circuits that must maintain integrity during catastrophic heat events. The pure nickel conductor ensures stable electrical performance at temperatures that would degrade copper-based alternatives.

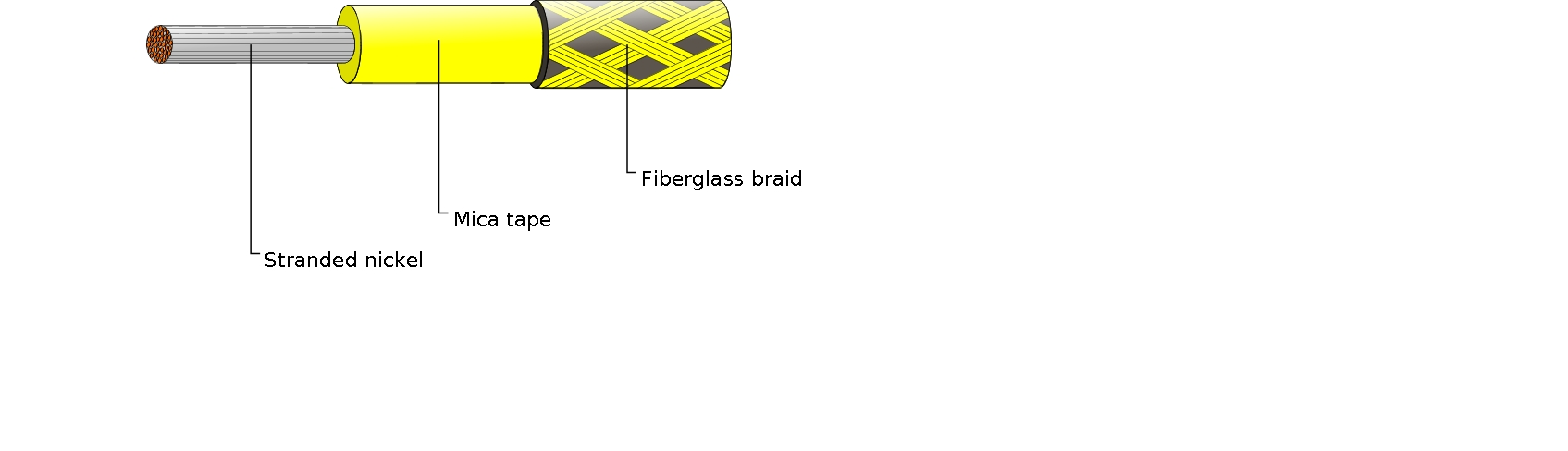

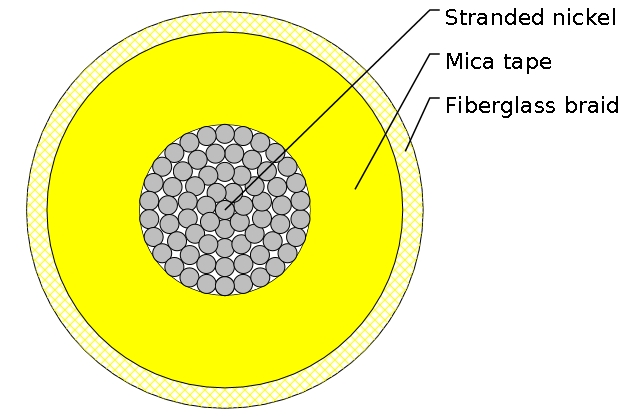

Construction:
| Conductor |
Stranded nickel |
| Insulation |
Mica tape |
| Jacket |
Fiberglass braid with hightemperature
finish |
| Rated Voltage |
600 V |
| Rated Temperature |
750°C |
| Color |
Tan, Red, White, Yellow, Green, Brown, Black, Blue |
Product specification:
| Size |
Conductor Structure |
Insulation |
Jacket |
Approx. O.D. |
| mm² |
|
mm |
mm |
mm |
| 18 |
17/0.25 |
1.13 |
0.25 |
4.0 |
| 16 |
27/0.25 |
1.13 |
0.25 |
4.3 |
| 14 |
42/0.25 |
1.13 |
0.25 |
4.6 |
| 12 |
67/0.25 |
1.13 |
0.25 |
5.2 |
| 10 |
106/0.25 |
1.13 |
0.25 |
6.0 |
| 8 |
168/0.25 |
1.35 |
0.25 |
7.3 |
