750°C 300V High Temperature Wire
High Temperature Fiberglass Wire · Mica Insulated
Product application:
Optimized for low-voltage signal and instrumentation circuits in extreme-heat zones. Used for thermocouple extension wiring, sensor connections, and control circuits inside furnaces, smelters, and incinerators where a 300V rating is sufficient but 750°C endurance is mandatory. Ideal for glass furnace instrumentation, steel mill sensor arrays, ceramic kiln monitoring, and aerospace ground-test equipment where compact high-temperature wiring is required for reliable data transmission under sustained extreme thermal loads.

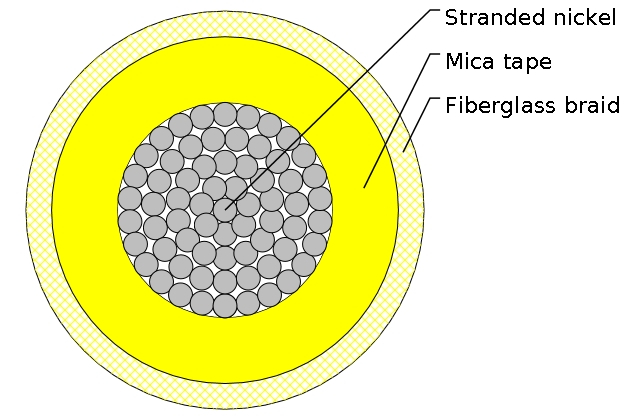

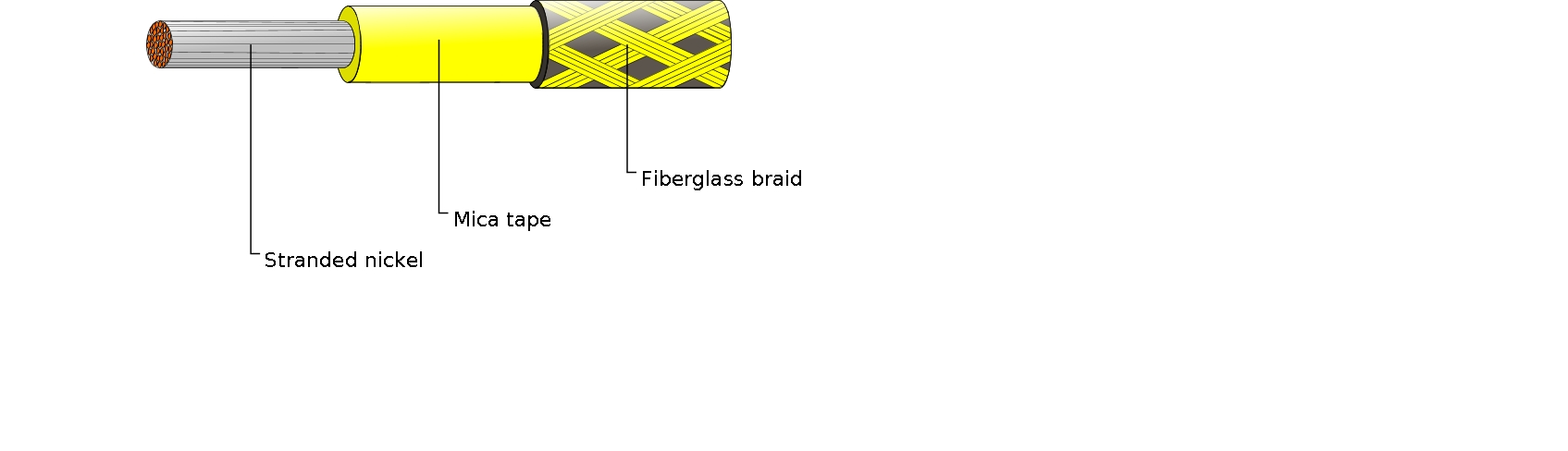

Construction:
| Conductor |
Stranded nickel |
| Insulation |
Mica tape |
| Jacket |
Fiberglass braid with hightemperature
finish |
| Rated Voltage |
300 V |
| Rated Temperature |
750°C |
| Color |
Tan, Red, White, Yellow, Green, Brown, Black, Blue |
Product specification:
| Size |
Conductor Structure |
Insulation |
Jacket |
Approx. O.D. |
| mm² |
|
mm |
mm |
mm |
| 18 |
17/0.25 |
0.64 |
0.25 |
3.0 |
| 16 |
27/0.25 |
0.64 |
0.25 |
3.3 |
| 14 |
42/0.25 |
0.64 |
0.25 |
3.7 |
| 12 |
67/0.25 |
0.64 |
0.25 |
4.2 |
| 10 |
106/0.25 |
0.76 |
0.25 |
5.3 |
| 8 |
168/0.25 |
0.76 |
0.25 |
6.1 |
