450°C 600V High Temperature Wire
High Temperature Fiberglass Wire · Mica Insulated
Product application:
Widely used in steel mills, foundries, and heat-treating furnaces where ambient temperatures
exceed conventional cable limits. Ideal for internal wiring of industrial ovens, kilns, glass
manufacturing equipment, and high-temperature lighting systems. Also suited for wiring in chemical
processing plants, ceramic production lines, and power generation facilities where sustained 450°C
heat resistance is critical to operational safety and circuit integrity.

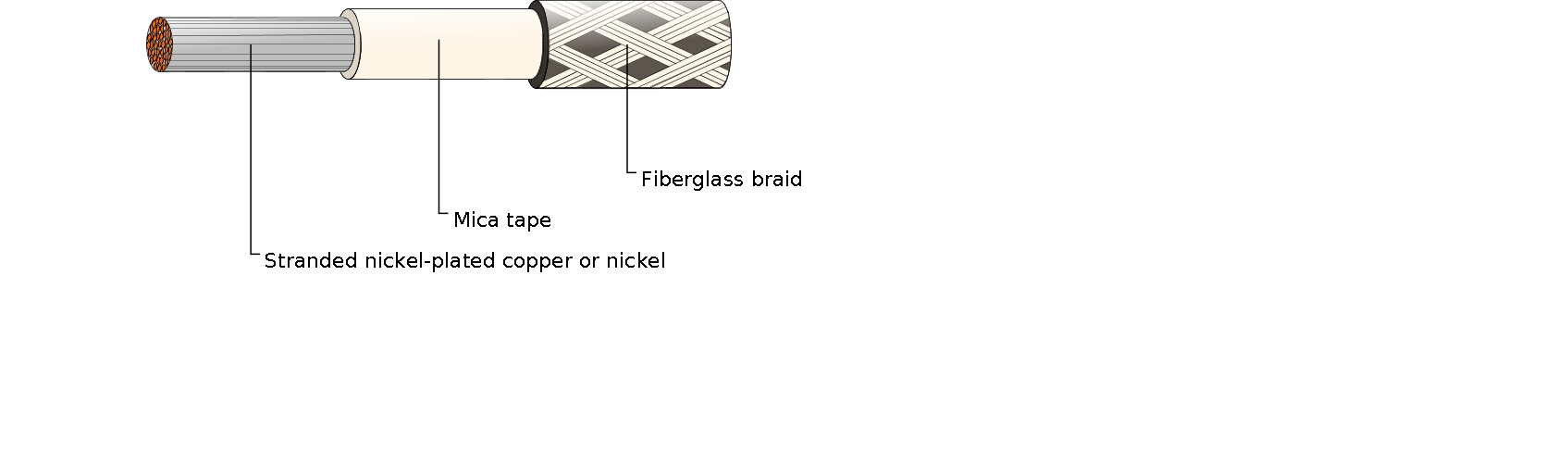

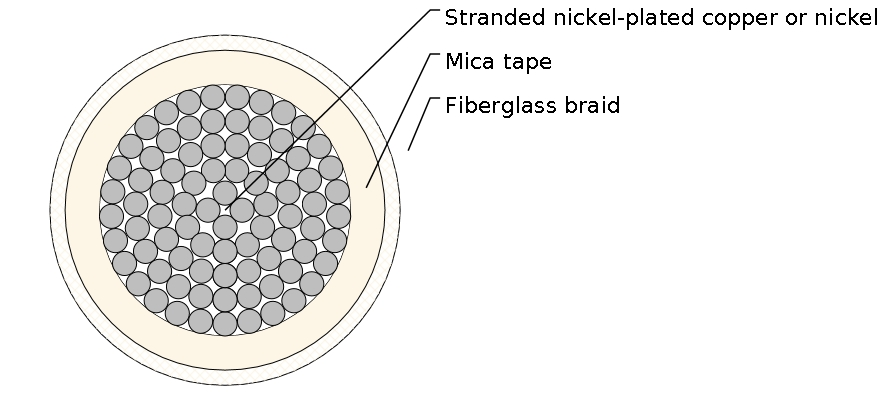

Construction:
| Conductor |
Stranded nickel-plated copper or nickel |
| Insulation |
Mica tape |
| Jacket |
Fiberglass braid with high-temperature finish |
| Rated Voltage |
600 V |
| Rated Temperature |
450°C |
| Color |
Tan, Red, White, Yellow, Green, Brown, Black, Blue |
Product specification:
| Size |
Conductor Structure |
Insulation |
Jacket |
Approx. O.D. |
| mm² |
|
mm |
mm |
mm |
| 0.14 |
7/0.16 |
0.45 |
0.20 |
1.8 |
| 0.22 |
7/0.20 |
0.45 |
0.20 |
1.9 |
| 0.25 |
7/0.23 |
0.45 |
0.20 |
2.0 |
| 0.50 |
16/0.20 |
0.45 |
0.20 |
2.2 |
| 0.75 |
24/0.20 |
0.45 |
0.20 |
2.4 |
| 1.0 |
32/0.20 |
0.45 |
0.20 |
2.6 |
| 1.5 |
30/0.25 |
0.45 |
0.20 |
2.9 |
| 2.0 |
40/0.25 |
0.45 |
0.20 |
3.1 |
| 2.5 |
50/0.25 |
0.45 |
0.20 |
3.3 |
| 4.0 |
56/0.30 |
0.45 |
0.20 |
3.9 |
| 6.0 |
84/0.30 |
0.69 |
0.25 |
5.1 |
| 10.0 |
140/0.30 |
0.69 |
0.25 |
6.4 |
| 16.0 |
224/0.30 |
0.69 |
0.25 |
7.6 |
| 25.0 |
350/0.30 |
0.69 |
0.25 |
9.0 |
