LSZH Flame Retardant Overall Screened, Armoured Instrumentation Cables (Multicore)

RE-2X(St)HSWAH

LSZH Flame Retardant Overall Screened, Armoured Instrumentation Cables (Multicore)

APPLICATION

The LSZH sheathed cables are generally used for indoor installation and suitable for wet and damp areas. The galvanized steel wire armour provides excellent protection. Generally, the cables are used within industrial process manufacturing plants for communication, data and voice transmission signals and services. Also used for the interconnection of electrical equipment and instruments, the LSZH sheath can reduce toxic smoke and fume emission.

STANDARDS

Basic design to BS EN 50288-7 (formerly BS 5308)

FIRE PERFORMANCE

Flame Retardance (Single Vertical Wire Test) IEC 60332-1-2; EN 60332-1-2
Reduced Fire Propagation (Vertically-mounted bundled wires & cable test) IEC 60332-3-24; EN 60332-3-24
Halogen Free IEC 60754-1; EN 50267-2-1
No Corrosive Gas Emission IEC 60754-2; EN 50267-2-2
minimum Smoke Emission IEC 61034-2; EN 61034-2

VOLTAGE RATING

300, 500V

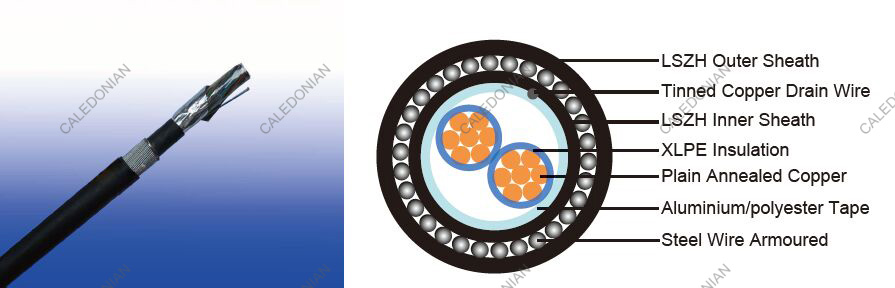

CABLE CONSTRUCTION

Conductor: Plain or metal coated copper wire, solid, stranded or flexible according to IEC 60228 class 1, 2 and 5.
Insulation: Extruded XLPE compound according to EN 50290-2-29. LSZH, PE, PP compound can be offered as options.
Overall Screen: Aluminium/polyester tape is applied over the laid up cores with metallic side down in contact with tinned copper drain wire, 0.5mm².
Inner Sheath: Thermoplastic LSZH compound.
Armouring: Galvanised steel wire.
Outer Sheath: Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZH compound type SW2-SW4 as per BS 7655-2.6 can be offered).
Outer Sheath Option: UV resistance, hydrocarbon resistance, oil resistance, anti-rodent and anti-termite properties can be offered as option.

COLOUR CODE

Insulation Colour: Colours and/or additional ring markings and/or symbols achieved by the use of coloured insulation or by a coloured surface using extrusion, printing or painting.
Outer Sheath: Black. Other colours can be offered upon request.

Physical AND THERMAL PROPERTIES

Temperature range during operation: -30°C - +90°C
Temperature range fixed installation: -5°C - +50°C
Maximum short circuit temperature (5 Seconds): 160°C
Minimum bending radius: 10 x Overall Diameter

Electrical Properties

300V

Conductor Area Size mm2 0.5 0.75 1.0 1.5
Insulation Thickness (nominal) mm 0.4 0.4 0.4 0.5
Insulation Thickness (minimum) mm 0.26 0.26 0.26 0.35
Conductor Resistance (20°C) ohm/km 36.7 25.0 18.5 12.3
Minimum Insulation Resistance (20°C) Mohm/km 1000
Maximum Mutual Capacitance nf/km 250
Capacitance Unbalance pf/500m 500
Maximum L/R (ratio) μH/Ω 25 25 25 40
Operating Voltage V 300
Dielectric Strength for 1 Minute AC V ≥1000
DC V ≥2000
500V
Conductor Area Size mm2 0.5 0.75 1.0 1.5 2.5
Insulation Thickness (nominal) mm 0.6 0.6 0.6 0.6 0.7
Insulation Thickness (minimum) mm 0.44 0.44 0.44 0.44 0.53
Conductor Resistance (20°C) ohm/km 36.7 25.0 18.5 12.3 7.4
Minimum Insulation Resistance (20°C) Mohm/km 1000
Maximum Mutual Capacitance nf/km 250
Capacitance Unbalance pf/500m 500
Maximum L/R (ratio) μH/Ω 25 25 25 40 60
Operating Voltage V 500
Dielectric Strength for 1 Minute AC V ≥2000
DC V ≥3000

CONSTRUCTION PARAMETERS

300V

Conductor RE-2X(St)HSWAH
No. of Core X Cross Section Class of Conductor Nominal Insulation Thickness Nominal Inner Sheath Thickness Nominal Armour Wire Diameter Nominal Outer Sheath Thickness Approx. Overall Diameter Approx. Weight
mm2   mm mm mm mm mm kg/km
0.5mm2
2x0.5 2 0.4 0.9 0.9 1.3 9.9 215
3x0.5 2 0.4 0.9 0.9 1.3 10.1 232
4x0.5 2 0.4 0.9 0.9 1.3 10.6 254
5x0.5 2 0.4 0.9 0.9 1.3 11.1 278
8x0.5 2 0.4 1.0 0.9 1.4 12.5 351
10x0.5 2 0.4 1.0 0.9 1.4 13.7 407
12x0.5 2 0.4 1.0 0.9 1.4 14.0 431
14x0.5 2 0.4 1.0 0.9 1.4 14.4 461
16x0.5 2 0.4 1.0 0.9 1.4 15.0 493
20x0.5 2 0.4 1.1 0.9 1.5 16.1 571
24x0.5 2 0.4 1.1 0.9 1.5 17.6 652
27x0.5 2 0.4 1.1 0.9 1.5 17.8 684
30x0.5 2 0.4 1.2 0.9 1.5 18.5 736
37x0.5 2 0.4 1.2 0.9 1.6 19.7 836
40x0.5 2 0.4 1.2 1.25 1.6 20.9 1002
0.75mm2
2x0.75 2 0.4 0.9 0.9 1.3 10.2 233
3x0.75 2 0.4 0.9 0.9 1.3 10.5 252
4x0.75 2 0.4 0.9 0.9 1.4 11.2 284
5x0.75 2 0.4 1.0 0.9 1.4 12.0 323
8x0.75 2 0.4 1.0 0.9 1.4 13.1 392
10x0.75 2 0.4 1.1 0.9 1.5 14.8 477
12x0.75 2 0.4 1.1 0.9 1.5 15.1 508
14x0.75 2 0.4 1.1 0.9 1.5 15.6 545
16x0.75 2 0.4 1.1 0.9 1.5 16.2 585
20x0.75 2 0.4 1.2 0.9 1.6 17.4 679
24x0.75 2 0.4 1.3 0.9 1.6 19.3 793
27x0.75 2 0.4 1.3 0.9 1.6 19.6 834
30x0.75 2 0.4 1.3 0.9 1.6 20.1 883
37x0.75 2 0.4 1.3 1.25 1.7 22.1 1138
40x0.75 2 0.4 1.4 1.25 1.7 22.8 1212
1.0mm2
2x1.0 2 0.4 0.9 0.9 1.3 10.6 253
3x1.0 2 0.4 0.9 0.9 1.3 11.0 278
4x1.0 2 0.4 0.9 0.9 1.4 11.7 316
5x1.0 2 0.4 0.9 0.9 1.4 12.3 350
8x1.0 2 0.4 1.0 0.9 1.4 13.8 444
10x1.0 2 0.4 1.0 0.9 1.5 15.5 531
12x1.0 2 0.4 1.0 0.9 1.5 15.8 569
14x1.0 2 0.4 1.0 0.9 1.5 16.4 616
16x1.0 2 0.4 1.1 0.9 1.5 17.2 678
20x1.0 2 0.4 1.2 0.9 1.5 18.3 780
24x1.0 2 0.4 1.2 0.9 1.6 20.3 911
27x1.0 2 0.4 1.2 1.25 1.6 21.3 1091
30x1.0 2 0.4 1.2 1.25 1.6 21.9 1157
37x1.0 2 0.4 1.3 1.25 1.7 23.5 1338
40x1.0 2 0.4 1.3 1.25 1.7 24.2 1408
1.5mm2
2x1.5 2 0.5 0.9 0.9 1.4 11.8 303
3x1.5 2 0.5 0.9 0.9 1.4 12.2 336
4x1.5 2 0.5 1.0 0.9 1.4 13.1 390
5x1.5 2 0.5 1.0 0.9 1.4 13.8 435
8x1.5 2 0.5 1.1 0.9 1.5 15.7 569
10x1.5 2 0.5 1.1 0.9 1.5 17.6 673
12x1.5 2 0.5 1.1 0.9 1.5 18.0 727
14x1.5 2 0.5 1.2 0.9 1.5 18.8 805
16x1.5 2 0.5 1.2 0.9 1.6 19.8 883
20x1.5 2 0.5 1.3 1.25 1.6 21.8 1153
24x1.5 2 0.5 1.3 1.25 1.7 24.2 1343
27x1.5 2 0.5 1.4 1.25 1.7 24.8 1440
30x1.5 2 0.5 1.4 1.25 1.7 25.5 1532
37x1.5 2 0.5 1.4 1.25 1.8 27.2 1757
40x1.5 2 0.5 1.5 1.25 1.8 28.2 1874
500V
Conductor RE-2X(St)HSWAH
No. of Core X Cross Section Class of Conductor Nominal Insulation Thickness Nominal Inner Sheath Thickness Nominal Armour Wire Diameter Nominal Outer Sheath Thickness Approx. Overall Diameter Approx. Weight
mm2   mm mm mm mm mm kg/km
0.5mm2
2x0.5 2 0.6 0.9 0.9 1.3 10.7 244
3x0.5 2 0.6 0.9 0.9 1.3 11.0 264
4x0.5 2 0.6 0.9 0.9 1.4 11.7 297
5x0.5 2 0.6 0.9 0.9 1.4 12.4 326
8x0.5 2 0.6 1.0 0.9 1.4 13.8 406
10x0.5 2 0.6 1.0 0.9 1.5 15.5 483
12x0.5 2 0.6 1.1 0.9 1.5 16.0 524
14x0.5 2 0.6 1.1 0.9 1.5 16.6 562
16x0.5 2 0.6 1.1 0.9 1.5 17.2 601
20x0.5 2 0.6 1.2 0.9 1.5 18.4 684
24x0.5 2 0.6 1.2 0.9 1.6 20.4 795
27x0.5 2 0.6 1.2 0.9 1.6 20.7 834
30x0.5 2 0.6 1.3 0.9 1.6 21.5 896
37x0.5 2 0.6 1.3 0.9 1.6 22.7 1005
40x0.5 2 0.6 1.3 1.25 1.7 24.2 1215
0.75mm2
2x0.75 2 0.6 0.9 0.9 1.3 11.0 262
3x0.75 2 0.6 0.9 0.9 1.3 11.4 285
4x0.75 2 0.6 0.9 0.9 1.4 12.2 322
5x0.75 2 0.6 1.0 0.9 1.4 13.0 367
8x0.75 2 0.6 1.0 0.9 1.4 14.4 449
10x0.75 2 0.6 1.0 0.9 1.5 16.2 535
12x0.75 2 0.6 1.0 0.9 1.5 16.6 571
14x0.75 2 0.6 1.1 0.9 1.5 17.4 628
16x0.75 2 0.6 1.1 0.9 1.5 18.1 675
20x0.75 2 0.6 1.2 0.9 1.6 19.5 784
24x0.75 2 0.6 1.3 0.9 1.6 21.7 917
27x0.75 2 0.6 1.3 0.9 1.6 22.0 965
30x0.75 2 0.6 1.3 0.9 1.6 22.6 1022
37x0.75 2 0.6 1.4 1.25 1.7 25.1 1338
40x0.75 2 0.6 1.4 1.25 1.7 25.8 1404
1.0mm2
2x1.0 2 0.6 0.9 0.9 1.3 11.4 283
3x1.0 2 0.6 0.9 0.9 1.4 12.0 317
4x1.0 2 0.6 1.0 0.9 1.4 12.9 365
5x1.0 2 0.6 1.0 0.9 1.4 13.6 405
8x1.0 2 0.6 1.0 0.9 1.4 15.1 502
10x1.0 2 0.6 1.1 0.9 1.5 17.3 615
12x1.0 2 0.6 1.1 0.9 1.5 17.7 660
14x1.0 2 0.6 1.1 0.9 1.5 18.3 714
16x1.0 2 0.6 1.2 0.9 1.6 19.4 795
20x1.0 2 0.6 1.2 0.9 1.6 20.6 898
24x1.0 2 0.6 1.3 0.9 1.6 22.9 1054
27x1.0 2 0.6 1.3 1.25 1.7 24.2 1274
30x1.0 2 0.6 1.3 1.25 1.7 24.9 1350
37x1.0 2 0.6 1.4 1.25 1.7 26.5 1544
40x1.0 2 0.6 1.4 1.25 1.8 27.5 1640
1.5mm2
2x1.5 2 0.6 0.9 0.9 1.3 12.2 318
3x1.5 2 0.6 1.0 0.9 1.4 12.8 364
4x1.5 2 0.6 1.0 0.9 1.4 13.5 410
5x1.5 2 0.6 1.0 0.9 1.4 14.3 458
8x1.5 2 0.6 1.1 0.9 1.5 16.4 599
10x1.5 2 0.6 1.2 0.9 1.5 18.6 724
12x1.5 2 0.6 1.2 0.9 1.6 19.2 792
14x1.5 2 0.6 1.2 0.9 1.6 19.9 861
16x1.5 2 0.6 1.2 0.9 1.6 20.7 932
20x1.5 2 0.6 1.3 1.25 1.7 23.1 1230
24x1.5 2 0.6 1.4 1.25 1.7 25.6 1439
27x1.5 2 0.6 1.4 1.25 1.7 26.1 1522
30x1.5 2 0.6 1.4 1.25 1.8 27.0 1633
37x1.5 2 0.6 1.5 1.25 1.8 28.8 1878
40x1.5 2 0.6 1.5 1.25 1.8 29.7 1980
2.5mm2
2x2.5 2 0.7 1.0 0.9 1.4 13.6 394
3x2.5 2 0.7 1.0 0.9 1.4 14.1 445
4x2.5 2 0.7 1.0 0.9 1.4 15.0 508
5x2.5 2 0.7 1.1 0.9 1.5 16.4 596
8x2.5 2 0.7 1.2 0.9 1.5 18.7 781
10x2.5 2 0.7 1.3 0.9 1.6 21.4 960
12x2.5 2 0.7 1.3 0.9 1.6 22.0 1045
14x2.5 2 0.7 1.3 1.25 1.7 23.8 1300
16x2.5 2 0.7 1.4 1.25 1.7 25.0 1428
20x2.5 2 0.7 1.4 1.25 1.8 26.7 1646
24x2.5 2 0.7 1.5 1.25 1.8 29.8 1932
27x2.5 2 0.7 1.6 1.25 1.9 30.7 2095
30x2.5 2 0.7 1.6 1.25 1.9 31.6 2237
37x2.5 2 0.7 1.7 1.25 1.9 33.8 2588
40x2.5 2 0.7 1.7 1.25 2.0 35.0 2757
Note: Other conductor sizes & core configurations are available upon request.
