LSZH Flame Retardant Overall Screened Instrumentation Cables (Multicore)

RE-2X(St)H

LSZH Flame Retardant Overall Screened Instrumentation Cables (Multicore)

APPLICATION

The unarmoured LSZH sheathed cables are generally used for indoor installation and suitable for wet and damp areas. Generally, the cables are used within industrial process manufacturing plants for communication, data and voice transmission signals and services. Also used for the interconnection of electrical equipment and instruments, the LSZH sheath can reduce toxic smoke and fume emission.

STANDARDS

Basic design to BS EN 50288-7 (formerly BS 5308)

FIRE PERFORMANCE

Flame Retardance (Single Vertical Wire Test) IEC 60332-1-2; EN 60332-1-2
Reduced Fire Propagation (Vertically-mounted bundled wires & cable test) IEC 60332-3-24; EN 60332-3-24
Halogen Free IEC 60754-1; EN 50267-2-1
No Corrosive Gas Emission IEC 60754-2; EN 50267-2-2
minimum Smoke Emission IEC 61034-2; EN 61034-2

VOLTAGE RATING

300, 500V

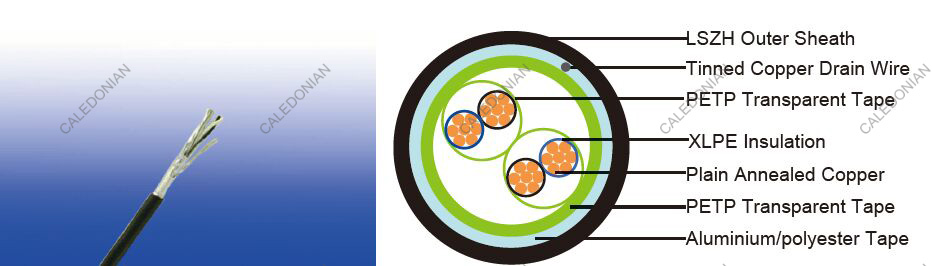

CABLE CONSTRUCTION

Conductor: Plain or metal coated copper wire, solid, stranded or flexible according to IEC 60228 class 1, 2 and 5.
Insulation: Extruded XLPE compound according to EN 50290-2-29. LSZH, PE, PP compound can be offered as options.
Pairs: Two insulated conductors uniformly twisted together with a lay not exceeding 100mm (≤1.5mm2) or 150mm (for 2.5mm2).
Binder tape: PETP transparent tape.
Overall Screen: Aluminium/polyester tape is applied over the laid up pairs with metallic side down in contact with tinned copper drain wire, 0.5mm².
Outer Sheath: Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZH compound type SW2-SW4 as per BS 7655-2.6 can be offered).
Outer Sheath Option: UV resistance, hydrocarbon resistance, oil resistance, anti-rodent and anti-termite properties can be offered as option.

COLOUR CODE

Insulation Colour: Colours and/or additional ring markings and/or symbols achieved by the use of coloured insulation or by a coloured surface using extrusion, printing or painting.
Outer Sheath: Black. Other colours can be offered upon request.

Physical AND THERMAL PROPERTIES

Temperature range during operation: -30°C - +90°C
Temperature range fixed installation: -5°C - +50°C
Maximum short circuit temperature (5 Seconds): 160°C
Minimum bending radius: 7.5 x Overall Diameter

Electrical Properties

300V

Conductor Area Size mm2 0.5 0.75 1.0 1.5
Insulation Thickness (nominal) mm 0.4 0.4 0.4 0.5
Insulation Thickness (minimum) mm 0.26 0.26 0.26 0.35
Conductor Resistance (20°C) ohm/km 36.7 25.0 18.5 12.3
Minimum Insulation Resistance (20°C) Mohm/km 1000
Maximum Mutual Capacitance nf/km 250
Capacitance Unbalance pf/500m 500
Maximum L/R (ratio) μH/Ω 25 25 25 40
Operating Voltage V 300
Dielectric Strength for 1 Minute AC V ≥1000
DC V ≥2000
500V
Conductor Area Size mm2 0.5 0.75 1.0 1.5 2.5
Insulation Thickness (nominal) mm 0.6 0.6 0.6 0.6 0.7
Insulation Thickness (minimum) mm 0.44 0.44 0.44 0.44 0.53
Conductor Resistance (20°C) ohm/km 36.7 25.0 18.5 12.3 7.4
Minimum Insulation Resistance (20°C) Mohm/km 1000
Maximum Mutual Capacitance nf/km 250
Capacitance Unbalance pf/500m 500
Maximum L/R (ratio) μH/Ω 25 25 25 40 60
Operating Voltage V 500
Dielectric Strength for 1 Minute AC V ≥2000
DC V ≥3000

CONSTRUCTION PARAMETERS

300V

Conductor RE-2X(St)H
No. of Core X Cross Section Class of Conductor Nominal Insulation Thickness Nominal Sheath Thickness Approx. Overall Diameter Approx. Weight
mm2   mm mm mm kg/km
0.5mm2
1x2x0.5 2 0.4 0.9 5.5 44
2x2x0.5 2 0.4 0.9 7.7 74
3x2x0.5 2 0.4 1.0 8.3 97
4x2x0.5 2 0.4 1.0 9.0 117
5x2x0.5 2 0.4 1.1 10.1 144
8x2x0.5 2 0.4 1.1 11.8 203
10x2x0.5 2 0.4 1.1 13.7 249
12x2x0.5 2 0.4 1.2 14.4 291
16x2x0.5 2 0.4 1.2 15.9 365
20x2x0.5 2 0.4 1.3 17.4 448
24x2x0.5 2 0.4 1.3 19.8 530
0.75mm2
1x2x0.75 2 0.4 0.9 5.8 52
2x2x0.75 2 0.4 1.0 8.5 94
3x2x0.75 2 0.4 1.0 8.9 118
4x2x0.75 2 0.4 1.1 10.0 150
5x2x0.75 2 0.4 1.1 10.9 177
8x2x0.75 2 0.4 1.1 12.7 254
10x2x0.75 2 0.4 1.2 15.1 321
12x2x0.75 2 0.4 1.2 15.6 366
16x2x0.75 2 0.4 1.3 17.5 474
20x2x0.75 2 0.4 1.4 19.1 581
24x2x0.75 2 0.4 1.4 21.8 689
1.0mm2
1x2x1.0 2 0.4 0.9 6.2 62
2x2x1.0 2 0.4 1.0 9.2 113
3x2x1.0 2 0.4 1.1 9.9 151
4x2x1.0 2 0.4 1.1 10.8 186
5x2x1.0 2 0.4 1.1 11.8 221
8x2x1.0 2 0.4 1.2 14.1 330
10x2x1.0 2 0.4 1.2 16.5 406
12x2x1.0 2 0.4 1.3 17.2 477
16x2x1.0 2 0.4 1.4 19.3 618
20x2x1.0 2 0.4 1.4 20.9 745
24x2x1.0 2 0.4 1.5 24.1 900
1.5mm2
1x2x1.5 2 0.5 0.9 7.2 80
2x2x1.5 2 0.5 1.1 10.9 156
3x2x1.5 2 0.5 1.1 11.5 202
4x2x1.5 2 0.5 1.2 12.9 260
5x2x1.5 2 0.5 1.2 14.1 311
8x2x1.5 2 0.5 1.3 16.8 465
10x2x1.5 2 0.5 1.4 20.0 586
12x2x1.5 2 0.5 1.4 20.6 674
16x2x1.5 2 0.5 1.5 23.2 874
20x2x1.5 2 0.5 1.6 25.3 1074
24x2x1.5 2 0.5 1.7 29.1 1294
500V
Conductor RE-2X(St)H
No. of Core X Cross Section Class of Conductor Nominal Insulation Thickness Nominal Sheath Thickness Approx. Overall Diameter Approx. Weight
mm2   mm mm mm kg/km
0.5mm2
1x2x0.5 2 0.6 0.9 6.3 52
2x2x0.5 2 0.6 1.0 9.2 93
3x2x0.5 2 0.6 1.0 9.7 115
4x2x0.5 2 0.6 1.1 10.8 146
5x2x0.5 2 0.6 1.1 11.8 172
8x2x0.5 2 0.6 1.2 14.1 250
10x2x0.5 2 0.6 1.2 16.6 306
12x2x0.5 2 0.6 1.3 17.3 358
16x2x0.5 2 0.6 1.4 19.4 459
20x2x0.5 2 0.6 1.4 21.0 546
24x2x0.5 2 0.6 1.5 24.2 661
0.75mm2
1x2x0.75 2 0.6 0.9 6.6 60
2x2x0.75 2 0.6 1.0 9.8 109
3x2x0.75 2 0.6 1.1 10.6 143
4x2x0.75 2 0.6 1.1 11.5 174
5x2x0.75 2 0.6 1.2 12.8 214
8x2x0.75 2 0.6 1.2 15.1 304
10x2x0.75 2 0.6 1.3 18.0 384
12x2x0.75 2 0.6 1.3 18.5 436
16x2x0.75 2 0.6 1.4 20.8 562
20x2x0.75 2 0.6 1.5 22.7 687
24x2x0.75 2 0.6 1.6 26.1 830
1.0mm2
1x2x1.0 2 0.6 0.9 7.0 70
2x2x1.0 2 0.6 1.0 10.5 129
3x2x1.0 2 0.6 1.1 11.3 171
4x2x1.0 2 0.6 1.2 12.6 219
5x2x1.0 2 0.6 1.2 13.8 260
8x2x1.0 2 0.6 1.2 16.2 374
10x2x1.0 2 0.6 1.3 19.3 472
12x2x1.0 2 0.6 1.4 20.2 553
16x2x1.0 2 0.6 1.5 22.6 714
20x2x1.0 2 0.6 1.5 24.5 859
24x2x1.0 2 0.6 1.6 28.2 1037
1.5mm2
1x2x1.5 2 0.6 0.9 7.6 85
2x2x1.5 2 0.6 1.1 11.6 165
3x2x1.5 2 0.6 1.2 12.5 221
4x2x1.5 2 0.6 1.2 13.6 274
5x2x1.5 2 0.6 1.3 15.2 337
8x2x1.5 2 0.6 1.3 17.9 490
10x2x1.5 2 0.6 1.4 21.3 617
12x2x1.5 2 0.6 1.5 22.2 724
16x2x1.5 2 0.6 1.6 24.9 936
20x2x1.5 2 0.6 1.7 27.2 1147
24x2x1.5 2 0.6 1.8 31.3 1382
2.5mm2
1x2x2.5 2 0.7 1.0 9.4 122
2x2x2.5 2 0.7 1.2 13.8 237
3x2x2.5 2 0.7 1.2 14.6 312
4x2x2.5 2 0.7 1.3 16.3 401
5x2x2.5 2 0.7 1.4 18.1 493
8x2x2.5 2 0.7 1.4 21.5 727
10x2x2.5 2 0.7 1.6 25.8 930
12x2x2.5 2 0.7 1.6 26.6 1074
16x2x2.5 2 0.7 1.7 29.9 1394
20x2x2.5 2 0.7 1.9 32.8 1732
24x2x2.5 2 0.7 2.0 37.8 2084
