LSZH Flame Retardant Overall Screened Instrumentation Cables (Multicore)

RE-2X(St)H

LSZH Flame Retardant Overall Screened Instrumentation Cables (Multicore)

APPLICATION

The LSZH sheathed cables are generally used for indoor installation and suitable for wet and damp areas. Generally, the cables are used within industrial process manufacturing plants for communication, data and voice transmission signals and services. Also used for the interconnection of electrical equipment and instruments, the LSZH sheath can reduce toxic smoke and fume emission.

STANDARDS

Basic design to BS EN 50288-7 (formerly BS 5308)

FIRE PERFORMANCE

Flame Retardance (Single Vertical Wire Test) IEC 60332-1-2; EN 60332-1-2
Reduced Fire Propagation (Vertically-mounted bundled wires & cable test) IEC 60332-3-24; EN 60332-3-24
Halogen Free IEC 60754-1; EN 50267-2-1
No Corrosive Gas Emission IEC 60754-2; EN 50267-2-2
minimum Smoke Emission IEC 61034-2; EN 61034-2

VOLTAGE RATING

300, 500V

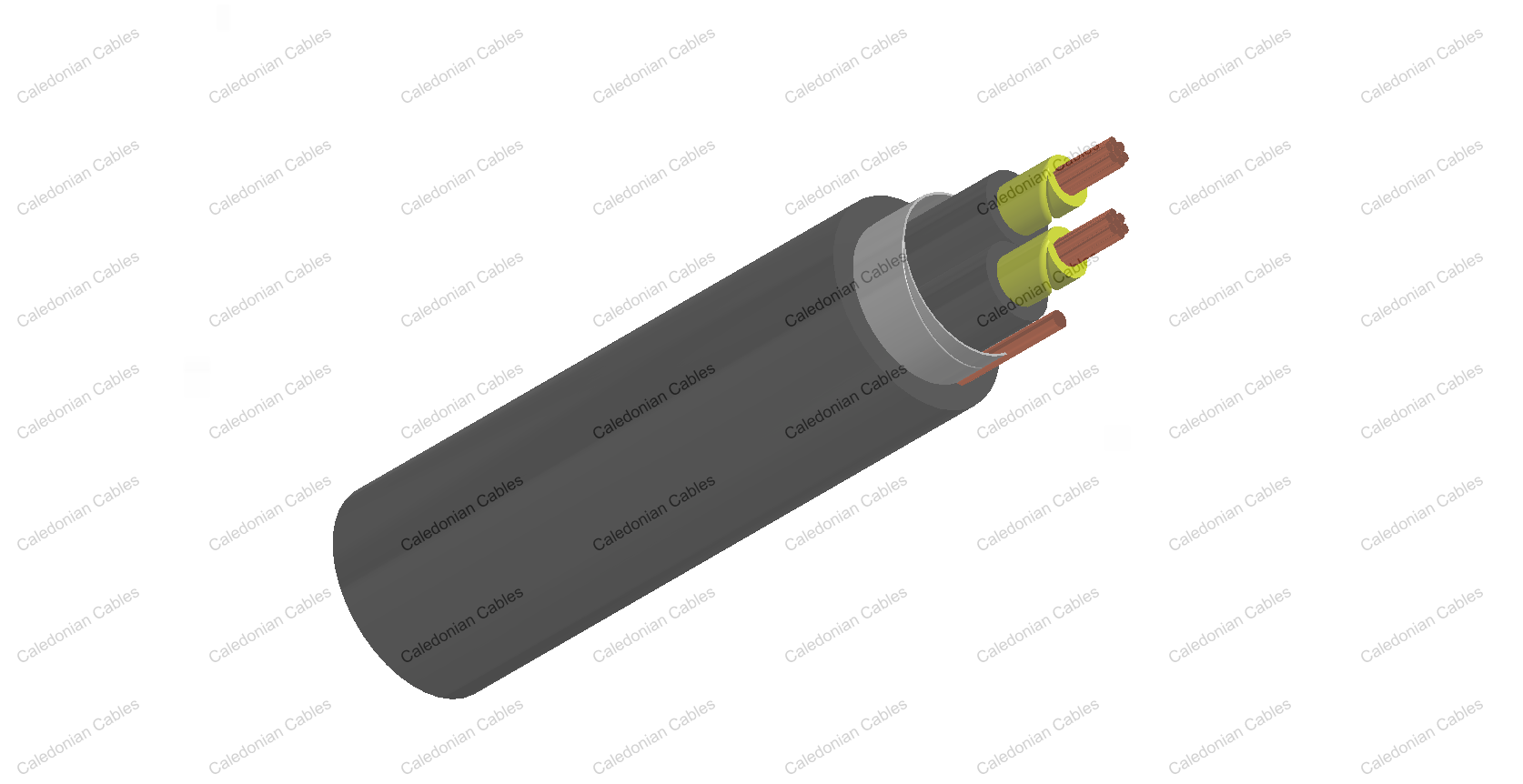

CABLE CONSTRUCTION

Conductor: Plain or metal coated copper wire, solid, stranded or flexible according to IEC 60228 class 1, 2 and 5.
Insulation: Extruded XLPE compound according to EN 50290-2-29. LSZH, PE, PP compound can be offered as options.
Overall Screen: Aluminium/polyester tape is applied over the laid up cores with metallic side down in contact with tinned copper drain wire, 0.5mm².
Outer Sheath: Halogen free flame retardant compound to EN 50290-2-27.
Outer Sheath Option: UV resistance, hydrocarbon resistance, oil resistance, anti-rodent and anti-termite properties can be offered as option.

COLOUR CODE

Insulation Colour: Colours and/or additional ring markings and/or symbols achieved by the use of coloured insulation or by a coloured surface using extrusion, printing or painting.
Outer Sheath: Black. Other colours can be offered upon request.

Physical AND THERMAL PROPERTIES

Temperature range during operation: -30°C - +90°C
Temperature range fixed installation: -5°C - +50°C
Maximum short circuit temperature (5 Seconds): 160°C
Minimum bending radius: 7.5 x Overall Diameter

Electrical Properties

300V

Conductor Area Size mm2 0.5 0.75 1.0 1.5
Insulation Thickness (nominal) mm 0.4 0.4 0.4 0.5
Insulation Thickness (minimum) mm 0.26 0.26 0.26 0.35
Conductor Resistance (20°C) ohm/km 36.7 25.0 18.5 12.3
Minimum Insulation Resistance (20°C) Mohm/km 1000
Maximum Mutual Capacitance nf/km 250
Capacitance Unbalance pf/500m 500
Maximum L/R (ratio) μH/Ω 25 25 25 40
Operating Voltage V 300
Dielectric Strength for 1 Minute AC V ≥1000
DC V ≥2000
500V
Conductor Area Size mm2 0.5 0.75 1.0 1.5 2.5
Insulation Thickness (nominal) mm 0.6 0.6 0.6 0.6 0.7
Insulation Thickness (minimum) mm 0.44 0.44 0.44 0.44 0.53
Conductor Resistance (20°C) ohm/km 36.7 25.0 18.5 12.3 7.4
Minimum Insulation Resistance (20°C) Mohm/km 1000
Maximum Mutual Capacitance nf/km 250
Capacitance Unbalance pf/500m 500
Maximum L/R (ratio) μH/Ω 25 25 25 40 60
Operating Voltage V 500
Dielectric Strength for 1 Minute AC V ≥2000
DC V ≥3000

CONSTRUCTION PARAMETERS

300V

Conductor RE-2X(St)H
No. of Core X Cross Section Class of Conductor Nominal Insulation Thickness Nominal Sheath Thickness Approx. Overall Diameter Approx. Weight
mm2   mm mm mm kg/km
0.5mm2
2x0.5 2 0.4 0.9 5.5 44
3x0.5 2 0.4 0.9 5.7 54
4x0.5 2 0.4 0.9 6.2 64
5x0.5 2 0.4 0.9 6.7 75
8x0.5 2 0.4 1.0 7.9 108
10x0.5 2 0.4 1.0 9.1 132
12x0.5 2 0.4 1.0 9.4 149
14x0.5 2 0.4 1.0 9.8 167
16x0.5 2 0.4 1.0 10.3 185
20x0.5 2 0.4 1.1 11.3 228
24x0.5 2 0.4 1.1 12.8 269
27x0.5 2 0.4 1.1 13.0 293
30x0.5 2 0.4 1.2 13.7 327
37x0.5 2 0.4 1.2 14.7 388
40x0.5 2 0.4 1.2 15.2 415
0.75mm2
2x0.75 2 0.4 0.9 5.8 52
3x0.75 2 0.4 0.9 6.1 64
4x0.75 2 0.4 0.9 6.6 77
5x0.75 2 0.4 1.0 7.4 95
8x0.75 2 0.4 1.0 8.5 134
10x0.75 2 0.4 1.1 10.0 169
12x0.75 2 0.4 1.1 10.3 192
14x0.75 2 0.4 1.1 10.8 216
16x0.75 2 0.4 1.1 11.4 240
20x0.75 2 0.4 1.2 12.4 295
24x0.75 2 0.4 1.3 14.3 358
27x0.75 2 0.4 1.3 14.6 391
30x0.75 2 0.4 1.3 15.1 425
37x0.75 2 0.4 1.3 16.2 506
40x0.75 2 0.4 1.4 16.9 552
1.0mm2
2x1.0 2 0.4 0.9 6.2 62
3x1.0 2 0.4 0.9 6.6 78
4x1.0 2 0.4 0.9 7.1 95
5x1.0 2 0.4 0.9 7.7 112
8x1.0 2 0.4 1.0 9.2 167
10x1.0 2 0.4 1.0 10.7 205
12x1.0 2 0.4 1.0 11.0 235
14x1.0 2 0.4 1.0 11.6 266
16x1.0 2 0.4 1.1 12.4 306
20x1.0 2 0.4 1.2 13.5 376
24x1.0 2 0.4 1.2 15.3 446
27x1.0 2 0.4 1.2 15.6 490
30x1.0 2 0.4 1.2 16.2 536
37x1.0 2 0.4 1.3 17.6 653
40x1.0 2 0.4 1.3 18.3 700
1.5mm2
2x1.5 2 0.5 0.9 7.2 80
3x1.5 2 0.5 0.9 7.6 103
4x1.5 2 0.5 1.0 8.5 133
5x1.5 2 0.5 1.0 9.2 158
8x1.5 2 0.5 1.1 10.9 236
10x1.5 2 0.5 1.1 12.8 290
12x1.5 2 0.5 1.1 13.2 333
14x1.5 2 0.5 1.2 14.0 387
16x1.5 2 0.5 1.2 14.8 433
20x1.5 2 0.5 1.3 16.1 534
24x1.5 2 0.5 1.3 18.3 633
27x1.5 2 0.5 1.4 18.9 709
30x1.5 2 0.5 1.4 19.6 776
37x1.5 2 0.5 1.4 21.1 931
40x1.5 2 0.5 1.5 22.1 1012
500V
Conductor RE-2X(St)H
No. of Core X Cross Section Class of Conductor Nominal Insulation Thickness Nominal Sheath Thickness Approx. Overall Diameter Approx. Weight
mm2   mm mm mm kg/km
0.5mm2
2x0.5 2 0.6 0.9 6.3 52
3x0.5 2 0.6 0.9 6.6 63
4x0.5 2 0.6 0.9 7.1 75
5x0.5 2 0.6 0.9 7.8 88
8x0.5 2 0.6 1.0 9.2 128
10x0.5 2 0.6 1.0 10.7 156
12x0.5 2 0.6 1.1 11.2 183
14x0.5 2 0.6 1.1 11.8 205
16x0.5 2 0.6 1.1 12.4 228
20x0.5 2 0.6 1.2 13.6 279
24x0.5 2 0.6 1.2 15.4 329
27x0.5 2 0.6 1.2 15.7 358
30x0.5 2 0.6 1.3 16.5 399
37x0.5 2 0.6 1.3 17.7 472
40x0.5 2 0.6 1.3 18.3 505
0.75mm2
2x0.75 2 0.6 0.9 6.6 60
3x0.75 2 0.6 0.9 7.0 74
4x0.75 2 0.6 0.9 7.6 89
5x0.75 2 0.6 1.0 8.4 110
8x0.75 2 0.6 1.0 9.8 155
10x0.75 2 0.6 1.0 11.4 189
12x0.75 2 0.6 1.0 11.8 215
14x0.75 2 0.6 1.1 12.6 250
16x0.75 2 0.6 1.1 13.3 278
20x0.75 2 0.6 1.2 14.5 342
24x0.75 2 0.6 1.3 16.7 414
27x0.75 2 0.6 1.3 17.0 452
30x0.75 2 0.6 1.3 17.6 493
37x0.75 2 0.6 1.4 19.2 598
40x0.75 2 0.6 1.4 19.9 639
1.0mm2
2x1.0 2 0.6 0.9 7.0 70
3x1.0 2 0.6 0.9 7.4 88
4x1.0 2 0.6 1.0 8.3 113
5x1.0 2 0.6 1.0 9.0 133
8x1.0 2 0.6 1.0 10.5 190
10x1.0 2 0.6 1.1 12.5 240
12x1.0 2 0.6 1.1 12.9 274
14x1.0 2 0.6 1.1 13.5 310
16x1.0 2 0.6 1.2 14.4 355
20x1.0 2 0.6 1.2 15.6 426
24x1.0 2 0.6 1.3 17.9 516
27x1.0 2 0.6 1.3 18.3 565
30x1.0 2 0.6 1.3 19.0 617
37x1.0 2 0.6 1.4 20.6 751
40x1.0 2 0.6 1.4 21.4 804
1.5mm2
2x1.5 2 0.6 0.9 7.6 85
3x1.5 2 0.6 1.0 8.2 114
4x1.5 2 0.6 1.0 8.9 140
5x1.5 2 0.6 1.0 9.7 166
8x1.5 2 0.6 1.1 11.6 248
10x1.5 2 0.6 1.2 13.8 314
12x1.5 2 0.6 1.2 14.2 359
14x1.5 2 0.6 1.2 14.9 407
16x1.5 2 0.6 1.2 15.7 456
20x1.5 2 0.6 1.3 17.2 562
24x1.5 2 0.6 1.4 19.7 679
27x1.5 2 0.6 1.4 20.2 746
30x1.5 2 0.6 1.4 20.9 816
37x1.5 2 0.6 1.5 22.7 993
40x1.5 2 0.6 1.5 23.6 1065
2.5mm2
2x2.5 2 0.7 1.0 9.0 122
3x2.5 2 0.7 1.0 9.5 159
4x2.5 2 0.7 1.0 10.4 198
5x2.5 2 0.7 1.1 11.6 245
8x2.5 2 0.7 1.2 13.9 367
10x2.5 2 0.7 1.3 16.4 463
12x2.5 2 0.7 1.3 17.0 534
14x2.5 2 0.7 1.3 17.9 607
16x2.5 2 0.7 1.4 19.0 694
20x2.5 2 0.7 1.4 20.6 840
24x2.5 2 0.7 1.5 23.7 1014
27x2.5 2 0.7 1.6 24.4 1133
30x2.5 2 0.7 1.6 25.3 1242
37x2.5 2 0.7 1.7 27.5 1511
40x2.5 2 0.7 1.7 28.5 1622
Note: Other conductor sizes & core configurations are available upon request.
