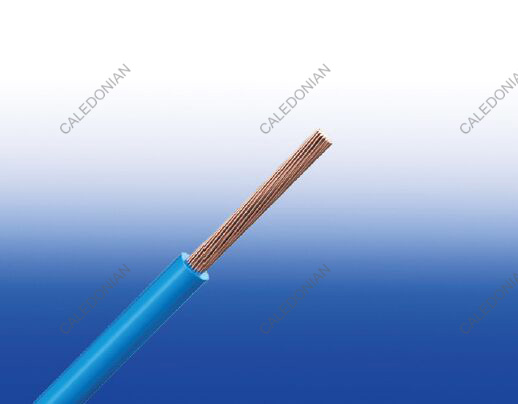

300/500V LSZH Insulated, Non-sheathed,Power Cables to BS EN 50525-3-41(Single Core)

FTX100 05Z-U/K (CU/LSZH 300/500V Class 1/5)

BS Code: 2491B

HAR Code: H05Z-U/K

Applications

BS EN 50525-3-41 300/500V LSZH Insulated, Non-sheathed Power Cables are mainly used in power stations, mass transit underground passenger systems, airports, petrochemical plants, hotels, hospitals and high-rise buildings.

Standard

Basic design adapted to BS EN 50525-3-41(formerly BS 7211)

FIRE PERFORMANCE

Flame Retardance (Single vertical wire or cable test) IEC 60332-1-2; EN 60332-1-2
Halogen Free IEC 60754-1; EN 50267-2-1
No Corrosive Gas Emission IEC 60754-2; EN 50267-2-2
Minimum Smoke Emission IEC 61034-2; EN 61034-2

Voltage Rating

300/500V

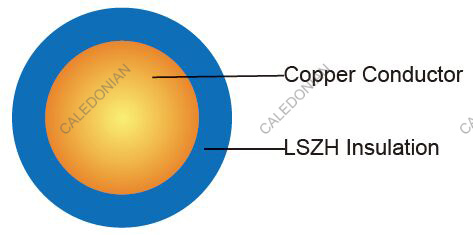

Construction

300/500V LSZH Insulated, Non-sheathed,  Power Cables Power Cables to BS EN 50525-3-41(Single Core)
Conductor Copper conductor according to BS EN 60228 class 1/5.
Insulation Crosslinked polyolefin material type EI 5 according to EN 50363-5.
Insulation Option UV resistance, hydrocarbon resistance, oil resistance, anti-rodent and anti-termite properties can be offered as option.

Colour Code

Black, Blue, Brown, Grey, Orange, Pink, Red, Turquoise, Violet, White, Green and Yellow. Bi-colours of any combination of the above mono-colours are permitted.

PHYSICAL AND THERMAL PROPERTIES

Maximum temperature range during operation: 90°C
Maximum short circuit temperature (5 Seconds): 250°C
Minimum bending radius: 4 x Overall Diameter

CONSTRUCTION PARAMETERS

Conductor FTX100 05Z-U/K
No. of Cores × Cross-sectional Area Conductor Class Nominal Insulation Thickness Min. Overall Diameter Max. Overall Diameter Approx. Weight
No.×mm2   mm mm mm kg/km
1×0.50 1 0.6 1.9 2.4 9.4
1×0.75 1 0.6 2.1 2.6 12.2
1×1.0 1 0.6 2.2 2.8 15.4
1×0.50 5 0.6 2.1 2.6 9.9
1×0.75 5 0.6 2.2 2.8 13.3
1×1.0 5 0.6 2.4 2.9 16.2

Electrical Properties

Conductor Operating Temperature 90°C
Ambient Temperature 30°C

Current-Carrying Capacities (Amp)

Conductor Cross-sectional Area Single-phase a.c. Three-phase a.c.
mm2 A A
0.5 3 3
0.75 6 6
1.0 10 10
Note: These values apply to the majority of cases. Further information should be sought in unusual cases eg.: (i) When high ambient temperatures are involved, ie. above 30°C (ii) Where long lengths are used (iii) Where ventilation is restricted (iv) Where the cords are used for other purposes, ego internal wiring of apparatus.

Voltage Drop (Per Amp Per Meter) according to BS 7671:2008 table 4E1B

Conductor cross- sectional area 2 cables d.c. 2 cables, single-phase a.c. 3 or 4 cables, three-phase a.c.
Ref. Methods A&B (enclosed in conduit or king) Ref. Methods C, F&G direct, on trays or Ref. Methods A&B (enclosed in conduit or trunking) Ref. Methods C, F&G (clipped direct, on trays or in free air)
Cables touching Cables spaced* Cables touching, Trefoil Cables touching, Flat Cables spaced*, Flat
1 2 3 4 5 6 7 8 9
mm2 mV/A/m mV/A/m mV/A/m mV/A/m mV/A/m mV/A/m mV/A/m mV/A/m
0.5 101 101 101 101 87 87 87 87
0.75 68 68 68 68 59 59 59 59
1.0 50 50 50 50 44 44 44 44

Note: *Spacings larger than one cable diameter will result in a large voltage drop.
