TIGHT BUFFER PVC/LSZH JACKETED SIMPLEX / DUPLEX CORD

Application

This cable is mainly used for interconnecting cable for jumpers, patch cords or pigtails.

Description

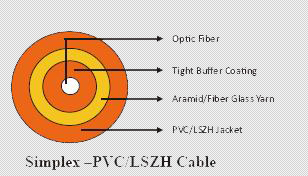

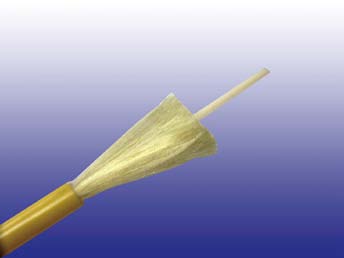

Simplex

Simplex cable consists of single tight buffered fiber with aramid yarns as tensile strength members with jacket of either Flame Retardant PVC or LSZH compound. The cable is unconnectorized.

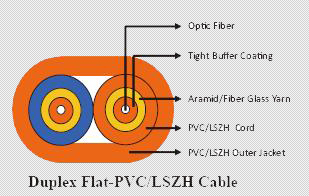

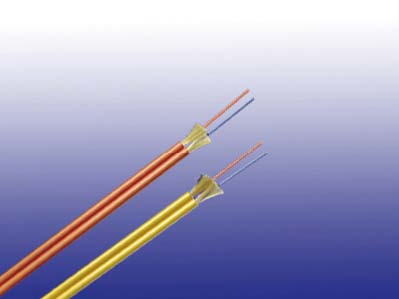

Duplex Flat

Duplex Flat Cable consists of two simplex units. Two simplex cords are placed side by side and jacketed with either Flame Retardant PVC or LSZH compound. The cable is unconnectorized.

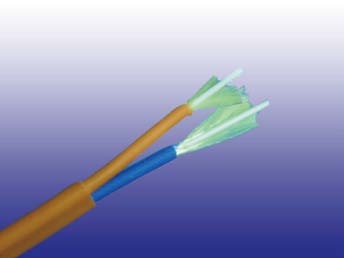

Duplex Round

Duplex Round Cable consists of two single fibers, each with a color-coded PVC tight buffer. They are reinforced with aramid yarn to provide physical and tensile strength. The fibers are jacketed with either Flame Retardant PVC or LSZH compound. The cable is unconnectorized.

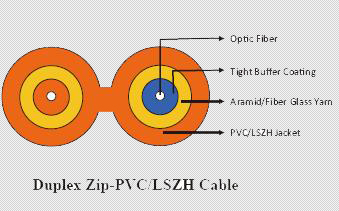

Duplex Zip

Duplex Zipcord Cable consists of two single fibers, each with a color-coded PVC tight buffer. They are reinforced with aramid yarn to provide physical and tensile strength. The fibers have either Flame Retardant PVC or LSZH compound jackets connected by a web to form a Āzipcordā construction. The cable is unconnectorized.

Construction

Fiber Optic Cables Fiber Optic Cables Fiber Optic Cables Fiber Optic Cables Fiber Optic Cables Fiber Optic Cables Fiber Optic Cables Fiber Optic Cables

Physical Properties

Fiber Count Cable Type Nominal Weight (kg/km) Nominal Weight (lb/kft) Nominal Outer Diameter(mm) Nominal Outer Diameter(in) Maximum Pulling Load
Installation (N/Ib) In Service (N/Ib)
1 Simplex 2.0mm 7.6 5.10 2.0 0.079 490/110 290/65
1 Simplex 2.5mm 7.8 5.23 2.5 0.098 490/110 290/65
1 Simplex 2.8mm 8.0 5.37 2.8 0.110 490/110 290/65
1 Simplex 3.0mm 8.2 5.50 3.0 0.118 490/110 290/65
2 Duplex Flat 28.0 18.79 4.0X6.8 0.157X0.267 980/220 580/130
2 Duplex Round 18.4 12.35 4.2 0.165 980/220 580/130
2 Duplex Zip 15.0 10.07 2.4X4.8 0.094X0.188 980/220 580/130

Mechanical Properties

Minimum Bending Radius:

Under installation:20hOD

During operation:10hOD

Temperature Range:

Operating Temperature Range:-40℃(-40℉) to +70℃(+158℉) Storage Temperature Range:-50℃(-58℉) to +70℃(+158℉)

Maximum Compressive Load:2000N

Repeated Impact: 2.9 N.m (J)3h2 impacts

Twist (Torsion):180h10 times, 125hOD

Cyclic Flexing:25 cycles for armoured cables.;

                       100 cycles for unarmoured cables.

Crush Resistance:875N/cm (500lb/in)

Fiber Compliance

Temperature Cycling IEC60794-1-2-F2 Repeated Bending IEC60794-1-2-E6
Tensile Strength IEC60794-1-2-E17 ATorsion IEC60794-1-2-E
Crush IEC60794-1-2-E3 Kink IEC60794-1-2-E10
Impact IEC60794-1-2-E4 Cable Bend IEC60794-1-2-E11
      Cool Bend IEC60794-1-2-E11

Safety Compliance

General Purpose Grade Flammability Test: OFN (UL1581)
Riser Grade

Plenum Grade

FRPVC Grade

LSZH Grade

LSFROH Grade

FR Grade

Flammability Test: OFNR/FT4 (UL1666)

Flammability Test: OFNP/FT6 (UL 910)

Flammability Test: IEC60332-1

Halogen Content Test: IEC 60754-1

Acidity Test: IEC 60754; Smoke Emission Test: IEC61034-1/2

Halogen Content Test: IEC 60754-1

Acidity Test: IEC 60754; Smoke Emission Test: IEC61034-1/2

Flammability Test: IEC60332-1 & IEC 60332-3C/A Fire Resistance Test: IEC 60331 / BS 6387 CWZ

Standard Compliance

GR409-CORE                                       TIA/EIA 568B.3                                 ICEA-S-83-596

Features

•Suitable for indoor use, such as routing connections in patching systems
•Short "patch cord" cables ideal for links between electronic equipment and fiber panels
•Compatible with wide variety of fiber optic connectors
•High quality tight-buffer coating on fiber for environmental and mechanical protection
•Customized jacket colors available for matching connectors.
•Private labeling on the cable outer jacket is also available.
