Armored LSZH Sheathed Composite Elevator Cable (3x1.5 Cable + Cat5e SF/UTP)
Applications
These cables are designed for installations in elevators, dumbwaiters, personnel, and material hoists.
Construction

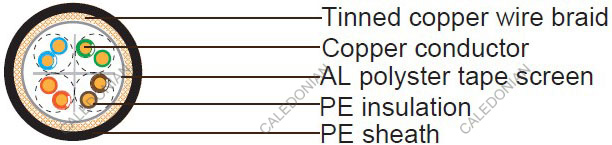

Cat 5e SF/UTP (*Cat 5e U/UTP, F/UTP also available upon request)
| Conductor |
24 AWG solid plain copper. |
| Insulation |
PE material. Nominal diameter is 1.0mm. |
| Insulation Color |
White-orange,Orange; White-blue,Blue; White-green,Green; White-brown,Brown. |
| Screen |
Alumminum tape & tinned copper wire braided. |
| Sheath |
PE sheath. Nominal overall diameter is 6.8 mm. |
| Sheath Color |
Black or Grey or Blue. |
3x1.5mm² Cable
| Conductor |
1.5mm² Stranded copper wire. |
| Insulation |
PVC. Nominal diameter 3.0mm. |
| Insulation Color |
Red,Yellow,Blue. Other color also available upon request. |

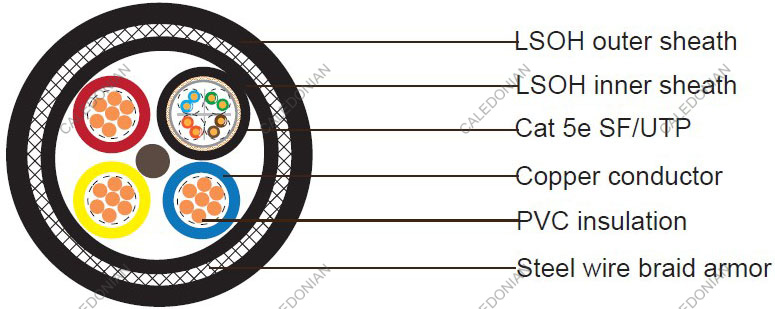

Element Assembly
| Filler |
PP material. |
| Inner Sheath |
LSZH, thickness 1.0 mm. |
| Armor |
Steel wire braid, dia. 0.2mm. |
| Outer Sheath |
LSZH, thickness 1.8mm. |
| Sheath Color |
Black. |
Electrical and Physical Properties@20°C
| Operating Temperature |
-20°C/+90°C |
Cat5e SF/UTP
| Electrical Resistance |
93.8 Ohm/km |
| Insulation Resistance |
≥5000 MOhm/km |
3C1.5mm² Cable
| Electrical Resistance |
12.3Ohm/km |
| Insulation Resistance |
≥5000 MOhm/km |
Fire Performance
| Low Smoke Capacity |
IEC61034-1/2 |
| Halogen Free |
IEC60754-1/2 |
| Flame Propagation |
IEC60332-3-22 |
