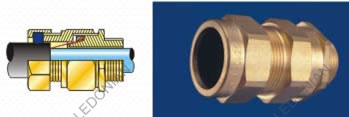

Single Compression CW Type Weatherproof & Waterproof (IP66) Cable Glands for Armoured & Braided Cables
 |
 |
StandardsEN 50262: 1999, BS6121 part1 ApplicationsSuitable for all types of unarmoured plastic or rubber sheathed cables for indoor as well as outdoor installations. If is used in applications where it is essential to provide an IP66 seal on the outer sheath of the cable.FeatureThe gland provides an environmental seal on the cable outer sheath. If also provide mechanical cable retention & electrical continuity via armour wire termination. The armour clamp provides an electrical bond between the cable armour and the gland.Ingress ProtectionIP66 MaterialBrass BS 2874 CZ121 Pb3 Thread OptionMETRIC; NPT; BSP; PG or as specified Seal OptionNeoprene; silicone Plating OptionBrass Finish, Nickel Finish, Chrome Finish or as specified. Operating TemperatureStandard seals: -20 ℃ to +80 ℃(Neoprene Seals) Extended seals: -60℃ to +200℃(Silicone Seals) AccessoriesLock Nut, Sealing Washer, Earth Tag, Shroud, Serrated Washer, Stopping Plug, Reducer, Adaptor Ordering Code(Gland Type / Size & Entry Thread Size), e.g. CW 32/M32 – 15mm |
Technical Data

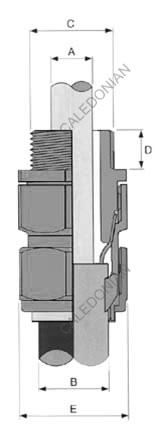

| Part No. | Entry Threads Size "C" | Entry Thread Length "D" | Seal Ranges | Armour Wire Diameter | Max. Across Corner Diameter "E" | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Inner Cable Sheath Diameter "A" Max. | Outer Cable Sheath Diameter "B' | ||||||||||
| Metric | NPT | PG | Standard Seal | Thick Seal | |||||||
| Min. | Max. | Min. | Max. | ||||||||
| CW-16 | M20 | " | 11 | 15 | 8.6 | 8.0 | 13.4 | 5.5 | 9.9 | 0.9 | 24.4 |
| CW-20S | M20 | " | 13.5 | 15 | 11.6 | 11.4 | 15.9 | 7.0 | 12.4 | 0.9/1.25 | 26.6 |
| CW-20 | M20 | " | 16 | 15 | 13.9 | 15.0 | 20.9 | 11.1 | 17.9 | 0.9/1.25 | 33.3 |
| CW-25 | M25 | 3/4" | 21 | 15 | 19.9 | 20.3 | 27.4 | 15.0 | 23.9 | 1.25/1.60 | 40.5 |
| CW-32 | M32 | 1" | 29 | 15 | 26.2 | 26.0 | 33.9 | 23.0 | 29.9 | 1.60/2.00 | 51.0 |
| CW-40 | M40 | 1-1/4" | 36 | 15 | 32.1 | 31.0 | 40.4 | 26.6 | 35.9 | 1.60/2.00 | 61.0 |
| CW-50S | M50 | 1-1/2" | 36 | 15 | 38.1 | 36.5 | 46.7 | 32.9 | 42.4 | 2.00/2.50 | 66.5 |
| CW-50 | M50 | 2" | 42 | 15 | 44.0 | 43.0 | 53.1 | 30.3 | 49.9 | 2.00/2.50 | 77.7 |
| CW-63S | M63 | 2" | 48 | 15 | 50.0 | 48.9 | 59.4 | 44.6 | 55.9 | 2.50 | 83.2 |
| CW-63 | M63 | 2-1/2" | - | 15 | 55.9 | 58.0 | 65.9 | 51.5 | 58.9 | 2.50 | 86.7 |
| CW-75S | M75 | 2-1/2" | - | 15 | 61.9 | 60.6 | 72.1 | 56.4 | 68.9 | 2.50 | 101.6 |
| CW-75 | M75 | 3" | - | 15 | 67.9 | 64.9 | 78.5 | 62.7 | 74.9 | 2.50/3.15 | 111.1 |
| CW-90 | M90 | 3-1/2" | - | - | 79.3 | 76.0 | 90.4 | 64.2 | 79.3 | 3.15 | 128.6 |
