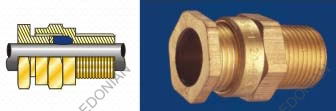

Single Compression A2 Type Weatherproof & Waterproof (IP66) Cable Glands for non armoured cables
 |
 |
StandardsEN 50262 : 1999, BS 6121 1989 ApplicationsSuitable for all types of unarmoured plastic or rubber sheathed cables for indoor as well as outdoor installations. It is used in applications where it is essential to provide an IP66 seal on the outer sheath of the cable.FeatureSingle compression for cable sheath.Ingress ProtectionIP66 (To IP68 if fi tted with a gasket).MaterialBrass BS 2874 CZ121 Pb3Thread OptionISO METRIC; NPT; BSP; PG or as specifiedSeal OptionNeoprene; siliconePlating OptionBrass Finish, Nickel Finish, Chrome Finish or as specifiedOperating TemperatureStandard seals: -20 °C to +80 °C (Neoprene Seals) Extended seals: -60 °C to +180 °C (Silicone Seals)AccessoriesLock Nut, Sealing Washer, Earth Tag, Shroud, Serrated Washer, Stopping Plug, Reducer, AdaptorOrdering Code(Gland Type / Size & Entry Thread Size), e.g. A2 32/M32 - 10mm |

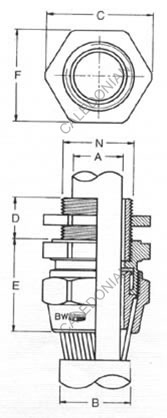

Technical Data
| Part No. | Entry Threads Size | Overall Diameter. | Overall Length "E" | Hexagonal Dimensions (Maximum) | |||
|---|---|---|---|---|---|---|---|
| Metric "N" | Entry Thread Length | Max. "A" | Max. "B" | "F" | "C" | ||
| A2-20SS | M20 | 10 | 3.0 | 8.0 | 18 | 25 | 28.5 |
| A2-20S | M20 | 10 | 7.0 | 11.0 | 18 | 25 | 28.5 |
| A2-20 | M20 | 10 | 11.0 | 14.5 | 20 | 27 | 30.0 |
| A2-25 | M25 | 10 | 14.5 | 20.5 | 25 | 35 | 38.5 |
| A2-32 | M32 | 10 | 20.5 | 26.5 | 25 | 42 | 48.0 |
| A2-40 | M40 | 15 | 26.5 | 34.5 | 28 | 52 | 59.0 |
| A2-50 | M50 | 15 | 34.5 | 43.5 | 30 | 65 | 72.0 |
| A2-63 | M63 | 15 | 43.5 | 56.0 | 35 | 82 | 97.0 |
| A2-75 | M75 | 15 | 56.0 | 65.0 | 40 | 96 | 112.0 |
| A2-82 | M82 | 15 | 65.0 | 74.0 | 50 | 100 | 113.0 |
| A2-90 | M90 | 15 | 73.0 | 82.0 | 59 | 100 | 113.0 |
