SXL American Standard Automotive Cable

Application

This XLPE insulated single-core cable is used in automotive applications where higher heat resistance is required.

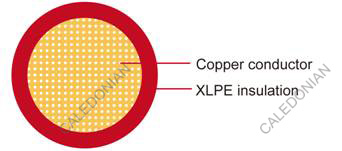

Construction:

Conductor:Soft-annealed copperaccording to ASTM B3
Insulation:Polyethylene crosslinked (XLPE)
Standard Compliance:SAE J1128

Technical Parameters:

Operating temperature:–40 °C to +125 °C

Conductor Insulation Cable
SIZE Nominal cross- section No. and Dia. of Wires Diameter Max. thickness wall min. Nominal Wall thickness Nom. Overall Diameter (max..) Weight approx.
AWG mm2 No./mm mm mm mm mm Kg/km
20 1 x 0.50 7\0.32 0.97 0.52 0.74 2.80 11
18 1 x 0.80 19\0.23 1.17 0.53 0.76 3.00 15
16 1 x 1.00 19\0.28 1.45 0.57 0.81 3.40 20
14 1 x 2.00 19\0.36 1.80 0.62 0.89 3.90 29
12 1 x 3.00 19\0.45 2.29 0.66 0.94 4.60 43
10 1 x 5.00 19\0.57 2.87 0.73 1.04 5.30 64

Note: Other configurations, sizes, colors and length not specified herein are available upon request.
