SGX American Standard Automotive Cable

Application

This XLPO insulated low-tension automotive cable is used in motorcycles and other motor vehicles for starting ,charging,lighting,signal and instrument panel circuits.

Construction:

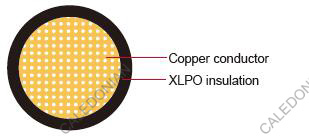

SGX American Standard Automotive Cable

Conductor:Soft-annealed copper according to ASTM B
Insulation:XLPO(Cross-Linked Polyolefin)
Standard: SAE J 1127

Special properties:

Flame retardant
Highly resistant against acids,lyes,petrol and diesel

Technical Parameters:

Operating temperature: –40°C to +125°C

Conductor Construction Insulation
Size Nominal cross- section No. and Dia. of Wires Diameter of Conductor max. Nominal thickness Overall Diameter Max. Weight approx.
AWG mm2 No./mm mm mm mm kg/km
6 1x13 133/0.36 4.83 1.52 8.6 166
4 1x19 133/0.46 6.09 1.65 10.5 257
2 1x32 133/0.57 7.67 1.65 12.00 373
1 1x40 259/0.46 8.49 1.65 13.00 453
1/0 1x50 1026/0.26 9.47 1.65 14.50 545
2/0 1x62 1254/0.26 10.47 1.65 16.00 653
3/0 1x81 1615/0.26 11.98 1.98 18.50 847
4/0 1x103 2052/0.26 13.40 1.98 20.00 1052

Note: Other configurations, sizes, colors and length not specified herein are available upon request.
