SGT American Standard Automotive Cable

Application

This PVC insulated single-core cable is used for automotive starters or battery grounds.

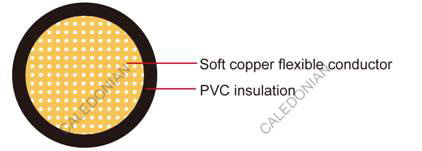

Construction:

Conductor:Soft copper flexible conductor
Insulation:PVC
Standard Compliance:SAE J1127

Technical Parameters:

Operating temperature:–40 °C to +80 °C

Conductor Insulation Cable
Size Nominal Cross- section NO. and Dia. of Wires Diameter Max. Thickness Wall Nom. Overall Diameter max. Weight approx.
AWG mm2 No./mm mm mm mm Kg/km
6 1 x 13.48 266/0.26 4.12 1.52 6.58 152
4 1 x 21.28 420/0.26 6.72 1.65 9.40 243
2 1 x 33.70 665/0.26 8.58 1.65 11.26 368
1 1 x 42.36 836/0.26 9.77 1.65 12.45 454
1/0 1 x 53.91 1064/0.26 11.10 1.65 13.78 568
2/0 1 x 67.04 1323/0.26 12.47 1.65 15.15 697
3/0 1 x 84.42 1666/0.26 14.10 1.98 17.30 886
4/0 1 x 106.76 2107/0.26 15.97 1.98 19.17 1105

Note: Other configurations, sizes, colors and length not specified herein are available upon request.
