HDT American Standard Automotive Cable

Application

This PVC insulated single-core cable is used for automobiles, motorcycles and other motor vehicles.

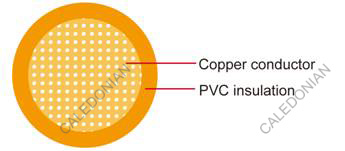

Construction:

Conductor:Soft-annealed copperaccording to ASTM B3
Insulation:PVC
Standard Compliance:SAE J1128

Technical Parameters:

Operating temperature:–40 °C to +85 °C

Conductor Insulation Cable
Size Nominal Cross-section No. and Dia. of Wires Diameter max. Thickness Wallnom. Overall Diameter max. Weight approx.
AWG mm2 No./mm mm mm mm kg/km
20 1 x 0.50 7/0.31 1.00 0.91 2.80 14
18 1 x 0.80 16/0.26 1.50 0.94 3.00 20
16 1 x 1.00 19/0.29 1.50 1.02 3.50 25
14 1 x 2.00 19/0.36 1.80 1.04 3.90 33
12 1 x 3.00 19/0.45 2.30 1.17 4.60 49
10 1 x 5.00 19/0.57 3.00 1.17 5.30 71
8 1 x 8.00 49/0.45 3.70 1.40 6.50 98

Note: Other configurations, sizes, colors and length not specified herein are available upon request.
