HAEXF Japanese Standard Automotive Cable

Application

This XLPE insulated single-core cable is used in low-tension electric circults for automobiles; especially used for circults requiring heat resistance and cold resistance.

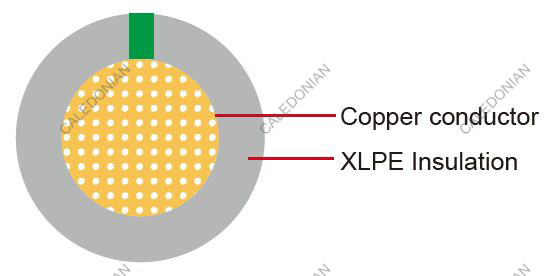

Construction:

HAEXF Japanese Standard Automotive Cable

Conductor: Tinned stranded copper
Insulation: XLPE
Standard Compliance: JASO D608

Technical Parameters:

Operating temperature:–40 °C to +150°C

　 Conductor Insulation Cable
Nominal Cross- section No. and Dia. of Wires Diameter max. Electrical Resistance at 20°C max. Thickness Wall nom. Overall Diameter min. Overall Diameter max. Weight Approx.
mm2 no./mm mm mΩ/m mm mm mm kg/km
1x0.30 12/0.18 0.8 61.1 0.5 1.8 1.9 12
1x0.50 20/0.18 1.0 36.7 0.5 2.0 2.2 16
1x0.75 30/0.18 1.2 24.4 0.5 2.2 2.4 21
1x0.85 34/0.18 1.2 21.6 0.5 2.2 2.4 23
1x1.25 50/0.18 1.5 14.7 0.6 2.7 2.9 30
1x2.00 79/0.18 1.9 10.1 0.6 3.1 3.4 39
1x2.50 50/0.25 2.1 7.9 0.6 3.4 3.7 44

*Note: Other configurations, sizes, colors and length not specified herein are available upon request.
