FLYWK&FLRYWK Germany Standard Automotive Cable Single-core

Application and Description:

This PVC insulated low-tension automotive cable is used in motorcycles and other motor vehicles for starting ,charging,lighting,signal and instrument panel circuits.

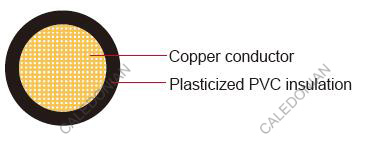

Cable Construction:

FLYWK&FLRYWK Germany Standard Automotive Cable

Conductor:Cu-ETP1 bare according to DIN EN 13602
Insulation:Plasticized PVC (heat and cold resistant)
Standard:ISO 6722 Class B

Special properties:

Cold bending test according to ISO 6722 at –50 °C.
Short-term and long-term ageing according to ISO 6722, Class B.
Flexible conductors with PVC Thin wall insulation with increased mechanical strength

Technical Parameters:

Operating temperature: –50°C to +105°C

  Conductor Construction Insulation Cable
Nominal cross- section No. and Dia. of Wires Diameter of Conductor max. Electrical resistance at 20°C max. Nominal thickness Overall Diameter Min. Overall Diameter Max. Weight approx.
mm2 No./mm mm mΩ/m mm mm mm g/km
1x0.5 16/0.20 1.0 37.1 0.28 1.4 1.6 6
1x0.75 24/0.20 1.2 24.7 0.6 2.2 2.5 33
1x1.00 32/0.20 1.4 18.5 0.3 1.8 2.1 57
1x1.50 30/0.25 1.7 12.7 0.3 2.2 2.4 111
1x2.50 50/0.25 2.1 7.6 0.7 3.3 3.7 278

Note: Other configurations, sizes, colors and length not specified herein are available upon request.
