FLYOY/FLYKOY Germany Standard Automotive Cable Single-core

Application and Description:

This PVC insulated low-tension automotive cable is used in motorcycles and other motor vehicles for starting ,charging,lighting,signal and instrument panel circuits.

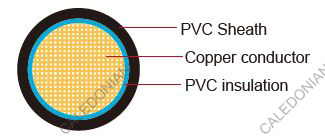

Cable Construction:

FLYOY/FLYKOY Germany Standard Automotive Cable

Conductor:Cu-ETP1 bare according to DIN EN 13602
Insulation:PVC
Shtath:PVC, lead free
Standard: ISO 6722 Class B

Special properties:

Flame retardant, Extra flexibility, Cold resistance
Flexible conductors with PVC thick wall insulation with increased mechanical strength

Technical Parameters:

Operating temperature: –40°C to +105°C

  Conductor Construction Insulation Cable
Nominal cross- section No. and Dia. of Wires Diameter of Conductor max. Electrical resistance at 20°C max. Nominal thickness Sheath wall thickness Overall Diameter Min. Overall Diameter Max. Weight approx.
mm2 No./mm mm mΩ/m mm mm mm mm kg/km
1x4 56/0.31 2.75 4.7 0.8 2.0 8.0 8.4 123
1x6 84/0.31 3.3 3.1 0.8 2.0 8.6 9.0 149
1x10 80/0.41 4.5 1.82 1.0 3.0 12.2 12.8 267
1x16 126/0.41 6.3 1.16 1.0 2.0 11.5 12.1 279
1x50 396/0.41 10.5 0.368 0.8 1.4 14.5 15.1 587
1x50 1600/0.21 10.9 0.386 0.8 1.4 14.5 15.1 592
1x70 2200/0.21 13.3 0.272 1.0 1.6 17.5 18.3 870

Note: Other configurations, sizes, colors and length not specified herein are available upon request.
