Germany Standard Automotive Cable
Single-core cable
FLRYY
Application:
This PVC insulated, PVC sheathed cable is used for low voltage electrical installations in vehicles.

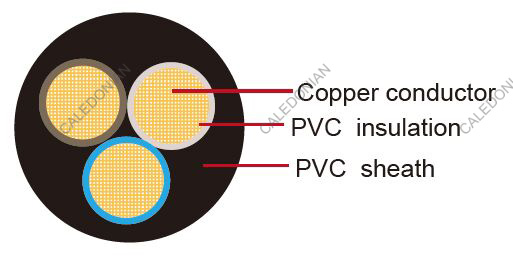

Cable Construction:
Conductor: Cu-ETP1 bare or tinned according to DIN EN13602
Insulation: PVC
Sheath: PVC
Standard Compliance: ISO 6722 Class B
Technical Parameters:
Operating temperature:–40 °C to +105 °C
| Conductor Construction | Insulation | Cable | ||||
|---|---|---|---|---|---|---|
| Nominal cross- section | No. and Dia. of Wires | Electrical resistance at 20°C max. | Thickness Wall nom. | Diameter of Core | Sheath Thickness | Overall Diameter Max. |
| mm2 | No./mm | mΩ/m | mm | mm | mm | mm |
| 1x0.35 | 12/0.21 | 52.0 | 0.20 | 1.3 | 0.4 | 2.2 |
| 2x0.35 | 12/0.21 | 52.0 | 0.20 | 1.3 | 0.5 | 3.7 |
| 3x0.35 | 12/0.21 | 52.0 | 0.20 | 1.3 | 0.5 | 3.9 |
| 4x0.35 | 12/0.21 | 52.0 | 0.20 | 1.3 | 0.5 | 4.3 |
| 5x0.35 | 12/0.21 | 52.0 | 0.20 | 1.3 | 0.5 | 4.6 |
| 7x0.35 | 12/0.21 | 52.0 | 0.20 | 1.3 | 0.5 | 5.0 |
| 10x0.35 | 12/0.21 | 52.0 | 0.20 | 1.3 | 0.5 | 6.4 |
| 1x0.5 | 16/0.21 | 37.1 | 0.22 | 1.3 | 0.6 | 2.5 |
| 2x0.5 | 16/0.21 | 37.1 | 0.22 | 1.6 | 0.6 | 4.5 |
| 3x0.5 | 16/0.21 | 37.1 | 0.22 | 1.6 | 0.6 | 4.8 |
| 4x0.5 | 16/0.21 | 37.1 | 0.22 | 1.6 | 0.6 | 5.2 |
| 5x0.5 | 16/0.21 | 37.1 | 0.22 | 1.6 | 0.6 | 5.6 |
| 7x0.5 | 16/0.21 | 37.1 | 0.22 | 1.6 | 0.6 | 6.1 |
| 10x0.5 | 16/0.21 | 37.1 | 0.22 | 1.6 | 0.6 | 7.7 |
| 1x0.75 | 24/0.21 | 24.7 | 0.24 | 1.9 | 0.4 | 2.8 |
| 2x0.75 | 24/0.21 | 24.7 | 0.24 | 1.9 | 0.6 | 5.1 |
| 3x0.75 | 24/0.21 | 24.7 | 0.24 | 1.9 | 0.6 | 5.4 |
| 4x0.75 | 24/0.21 | 24.7 | 0.24 | 1.9 | 0.6 | 5.9 |
| 5x0.75 | 24/0.21 | 24.7 | 0.24 | 1.9 | 0.6 | 6.4 |
| 7x0.75 | 24/0.21 | 24.7 | 0.24 | 1.9 | 0.6 | 7.0 |
| 10x0.75 | 24/0.21 | 24.7 | 0.24 | 1.9 | 0.8 | 9.3 |
| 1x1.0 | 32/0.21 | 18.5 | 0.24 | 2.1 | 0.4 | 3.0 |
| 2x1.0 | 32/0.21 | 18.5 | 0.24 | 2.1 | 0.6 | 5.5 |
| 3x1.0 | 32/0.21 | 18.5 | 0.24 | 2.1 | 0.6 | 5.8 |
| 4x1.0 | 32/0.21 | 18.5 | 0.24 | 2.1 | 0.6 | 6.4 |
| 5x1.0 | 32/0.21 | 18.5 | 0.24 | 2.1 | 0.6 | 7.0 |
| 7x1.0 | 32/0.21 | 18.5 | 0.24 | 2.1 | 0.8 | 8.0 |
| 10x1.0 | 32/0.21 | 18.5 | 0.24 | 2.1 | 0.8 | 10.1 |
| 1x1.5 | 30/0.26 | 12.7 | 0.24 | 2.4 | 0.4 | 3.3 |
| 2x1.5 | 30/0.26 | 12.7 | 0.24 | 2.4 | 0.6 | 6.1 |
| 3x1.5 | 30/0.26 | 12.7 | 0.24 | 2.4 | 0.6 | 6.4 |
| 4x1.5 | 30/0.26 | 12.7 | 0.24 | 2.4 | 0.6 | 7.1 |
| 5x1.5 | 30/0.26 | 12.7 | 0.24 | 2.4 | 0.6 | 7.8 |
| 7x1.5 | 30/0.26 | 12.7 | 0.24 | 2.4 | 0.8 | 8.9 |
| 10x1.5 | 30/0.26 | 12.7 | 0.24 | 2.4 | 0.8 | 11.4 |
| 1x2.5 | 50/0.26 | 7.6 | 0.28 | 3.0 | 0.4 | 3.9 |
| 2x2.5 | 50/0.26 | 7.6 | 0.28 | 3.0 | 0.6 | 7.3 |
| 3x2.5 | 50/0.26 | 7.6 | 0.28 | 3.0 | 0.6 | 7.8 |
| 4x2.5 | 50/0.26 | 7.6 | 0.28 | 3.0 | 0.6 | 8.6 |
| 5x2.5 | 50/0.26 | 7.6 | 0.28 | 3.0 | 0.8 | 9.8 |
| 7x2.5 | 50/0.26 | 7.6 | 0.28 | 3.0 | 0.8 | 10.7 |
| 10x2.5 | 50/0.26 | 7.6 | 0.28 | 3.0 | 0.8 | 13.7 |
*Note: Other confi gurations, sizes, colors and length not specifi ed herein are available upon request.
