FLRYDY Germany Standard Automotive Cable Single-core

Application and Description:

This PVC insulated low-tension automotive cable is used in motorcycles and other motor vehicles for starting ,charging,lighting,signal and instrument panel circuits.

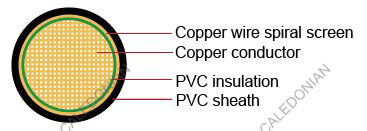

Cable Construction:

FLRYDY Germany Standard Automotive Cable

Conductor:Cu-ETP1 bare according to DIN EN 13602
Insulation:PVC
Screen:Copper wire spiral shield
Sheath:PVC
Standard:ISO 6722 Class B

Special properties:

Flame retardant
Flexible conductors with PVC thin wall insulation with increased mechanical strength

Technical Parameters:

Operating temperature: –40°C to +105°C

  Conductor Construction Insulation Cable
Nominal cross- section No. and Dia. of Wires Diameter of Conductor max. Electrical resistance at 20°C max. Nominal thickness Diameter of core Sheath wall thickness Overall Diameter Min. Overall Diameter Max. Weight approx.
mm2 No./mm mm mΩ/m mm mm mm mm mm kg/km
1x075 24/0.21 1.2 24.7 0.3 1.75 0.3 2.5 2.7 20
1x1.00 32/0.21 1.35 18.5 0.3 1.95 0.3 2.7 2.9 23
1x1.50 30/0.26 1.7 12.7 0.3 2.25 0.3 3.0 3.2 29

Note: Other configurations, sizes, colors and length not specified herein are available upon request.
